Installation Procedure

  1. Position the speaker to the door.
  2. Connect the electrical connector to the speaker.
  3. Install the speaker to the door.
  4. Use a rivet gun in order to secure the speaker to the door with new rivets.
  5. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS) or TRIM PANEL REPLACEMENT - REAR DOOR (E54) in Body Rear End.

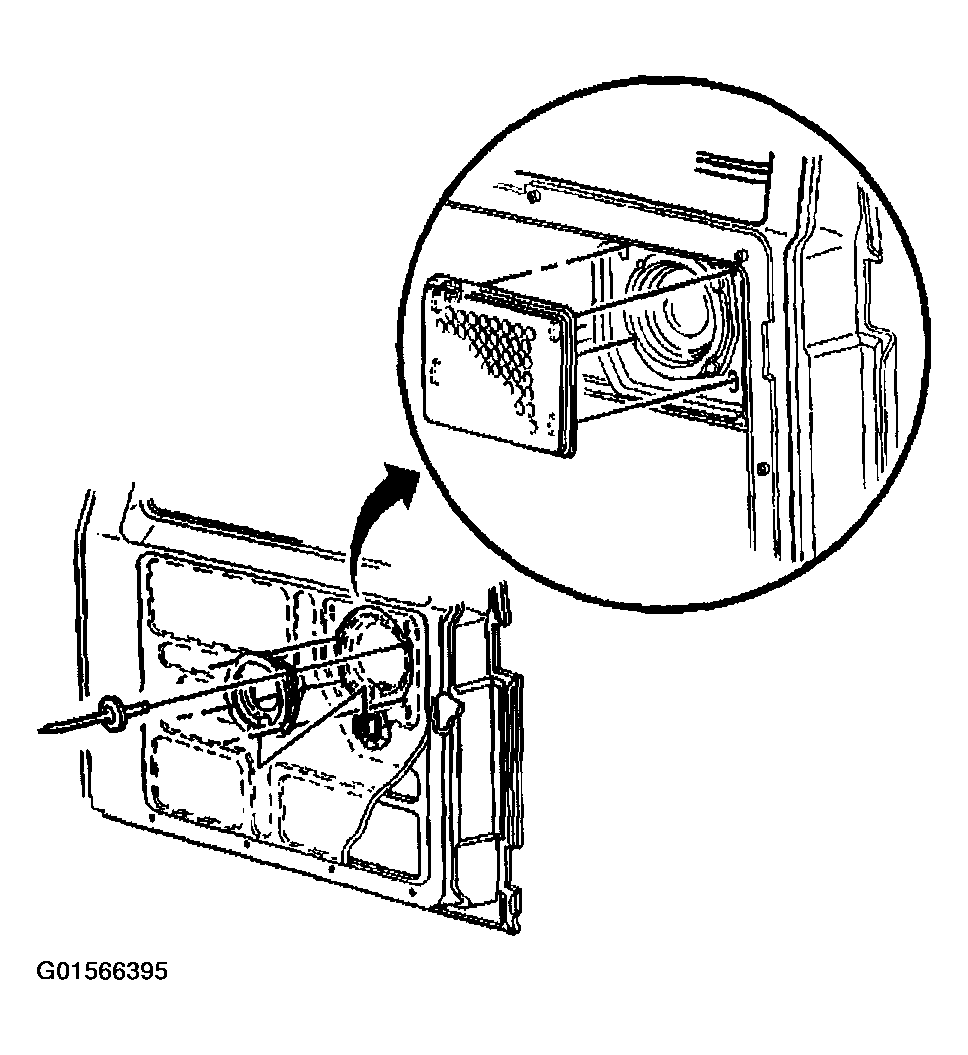

    Fig 1: Installing Speaker - Rear Door
    G01566395Courtesy of GENERAL MOTORS CORP.
