Removal Procedure

  1. Remove the assist handle from the door.
  2. Remove the retaining screw from the trim plate.
  3. Remove the escutcheon from the trim plate.
  4. Swing the plate down.
  5. Remove the tweeter speaker from the trim plate by rotating in order to clear the mounting tabs.
  6. Disconnect the electrical connector.

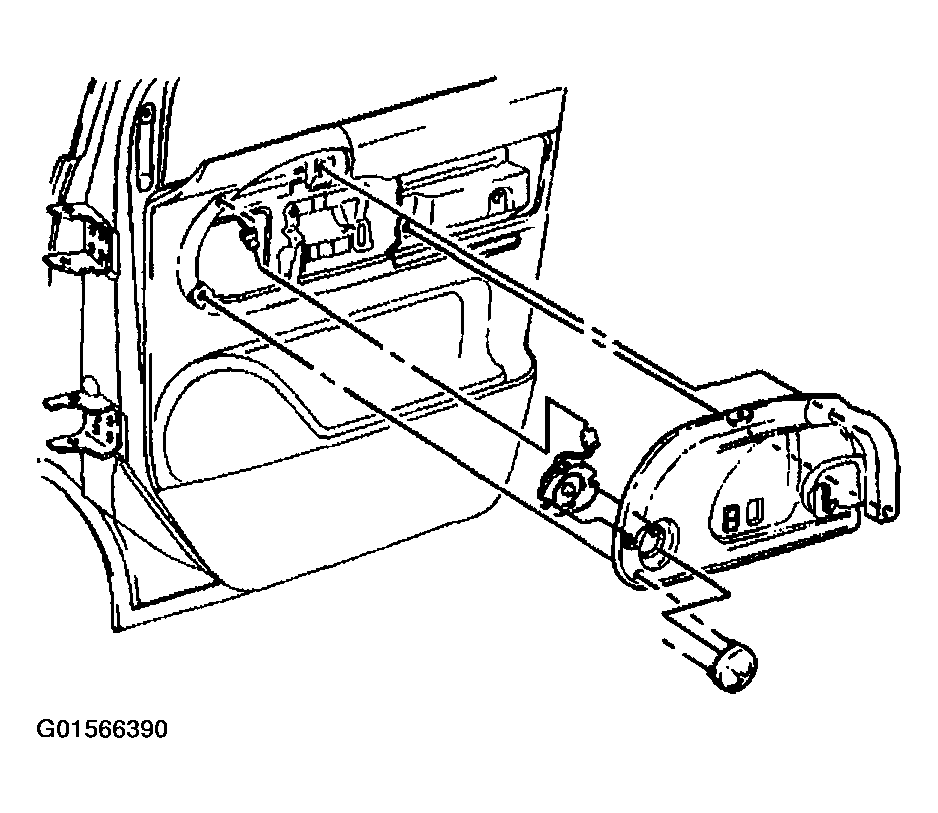

    Fig 1: Removing Speaker - Front Upper
    G01566390Courtesy of GENERAL MOTORS CORP.
