Installation Procedure

  1. Connect the electrical connector.
  2. Install the tweeter speaker to the trim plate by rotating in order to lock the mounting tabs.
  3. Verify component operation.
  4. Swing the trim plate up.
  5. Install the escutcheon to the trim plate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the retaining screw to the trim plate.

    Tighten

    Tighten the trim plate screw to 2 N.m (18 lb in).

  7. Install the assist handle to the door.

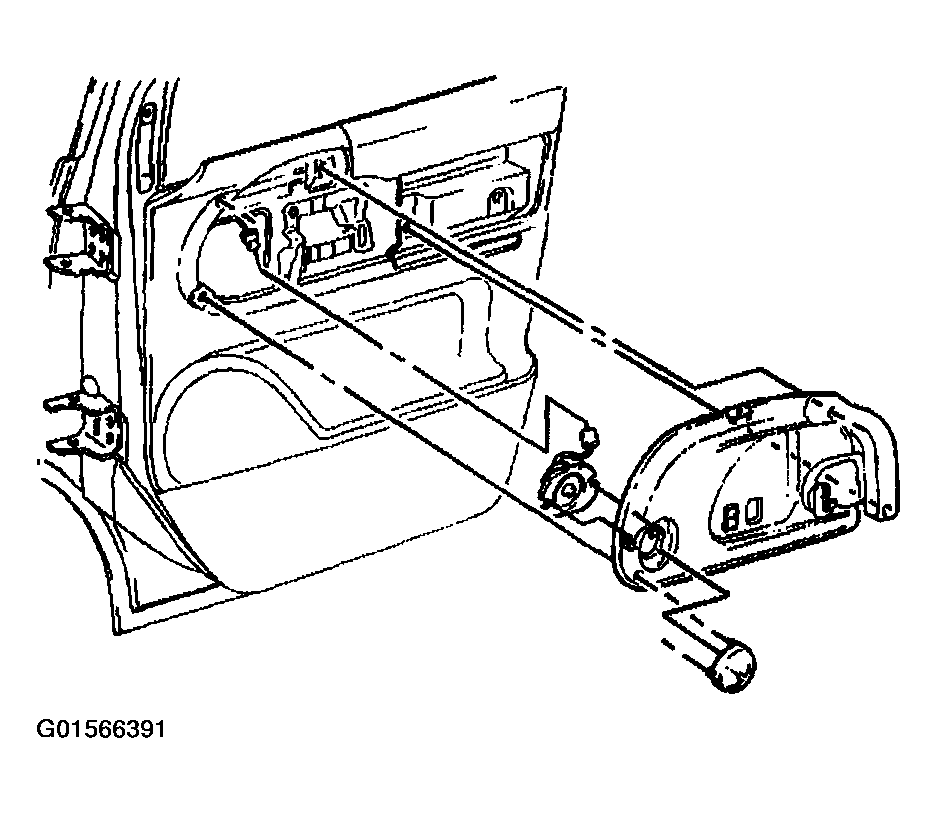

    Fig 1: Installing Speaker - Front Upper
    G01566391Courtesy of GENERAL MOTORS CORP.
