Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR in Doors.
  2. Remove the mounting screws.
  3. Remove the speaker from the door.
  4. Disconnect the electrical connector from the speaker.

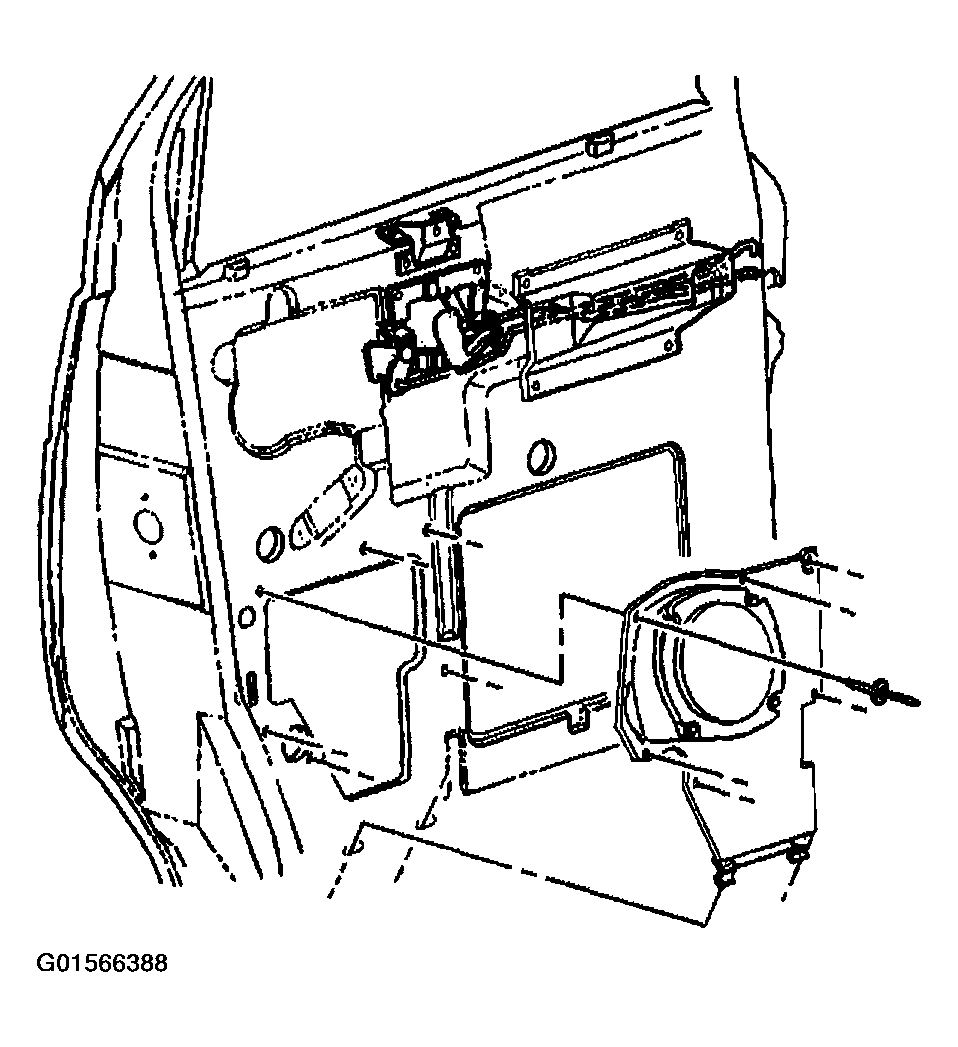

    Fig 1: Removing Speaker - Front Lower
    G01566388Courtesy of GENERAL MOTORS CORP.
