Installation Procedure

  1. Connect the electrical connector to the speaker.
  2. Install the speaker to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the speaker mounting screws.

    Tighten

    Tighten the speaker mounting screws to 2 N.m (18 lb in).

  4. Verify component operation.
  5. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR in Doors.

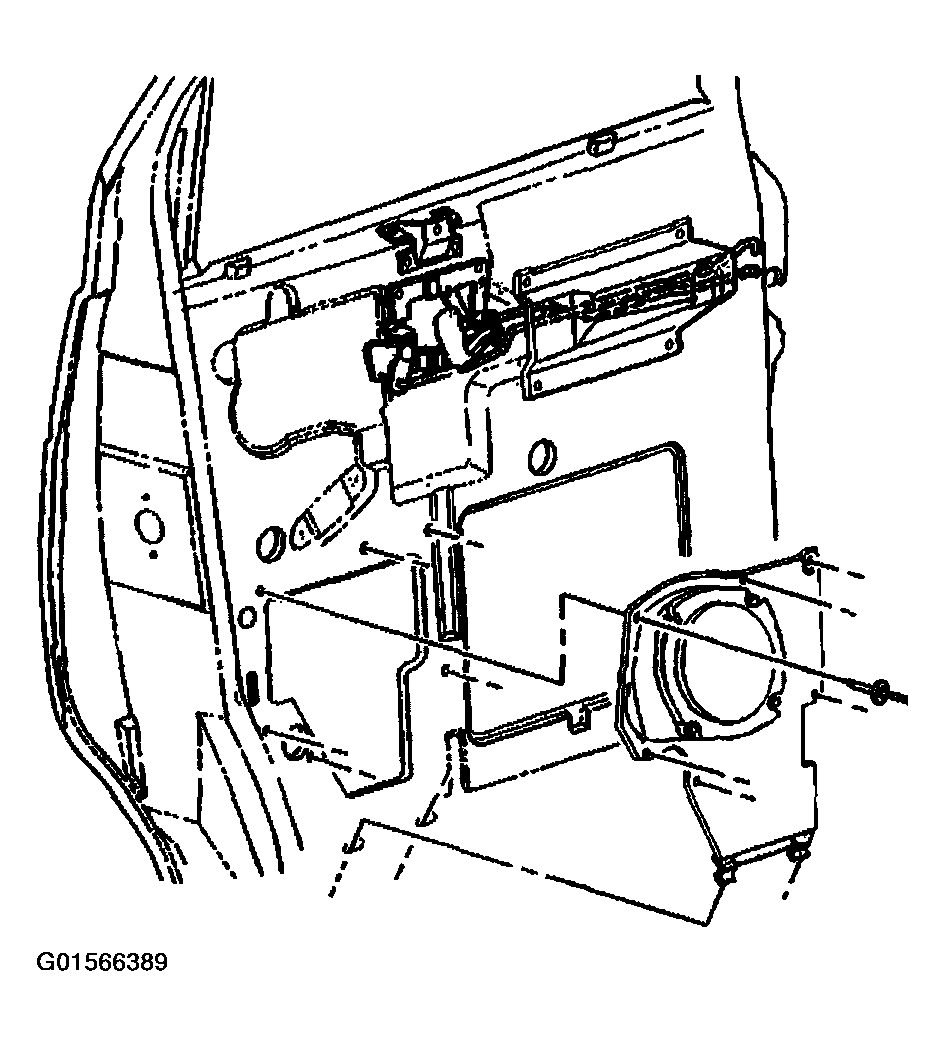

    Fig 1: Installing Speaker - Front Lower
    G01566389Courtesy of GENERAL MOTORS CORP.
