Removal Procedure

  1. Open the rear door(s).
  2. Separate the corners of the grille from the trim panel, one at a time, in order to remove the grille.
  3. Remove the grille from the door trim panel.

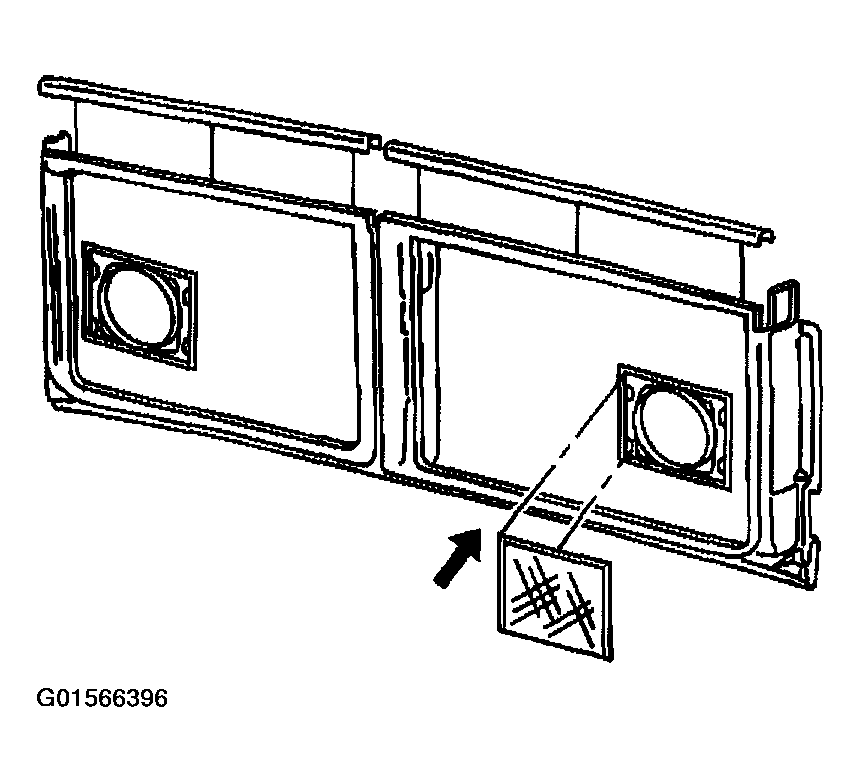

    Fig 1: Removing Rear Speaker Grille From The Door Trim Panel
    G01566396Courtesy of GENERAL MOTORS CORP.
