Installation Procedure

  1. Align the grill retaining clips with the slots in the door trim panel.
  2. Seat the grille into place.
  3. Close the door(s).

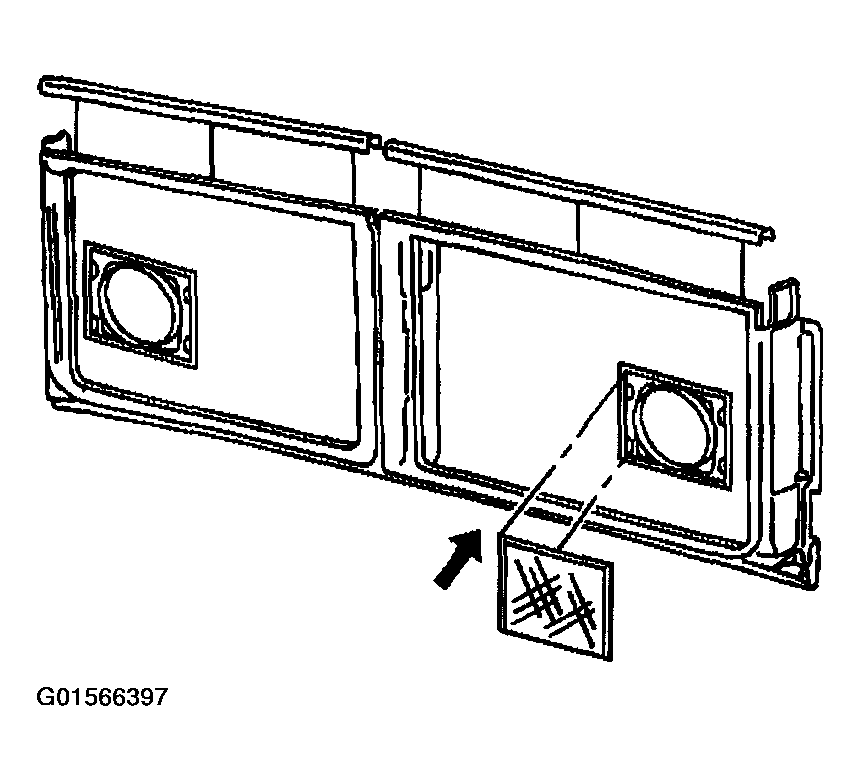

    Fig 1: Installing Rear Speaker Grille To The Door Trim Panel
    G01566397Courtesy of GENERAL MOTORS CORP.
