Removal Procedure

  1. Remove the quarter inner rear trim finishing panel.
  2. Remove the spare tire and jack.
  3. Disconnect the antenna cable (4) from the power antenna.
  4. Disconnect the power antenna electrical connector (3).
  5. Remove the drain tube (1) from the grommet in the rear quarter panel.
  6. Remove the power antenna bracket bolt (2).
  7. Pull down the bracket. Disengage the power antenna from the antenna bezel.
  8. Remove the power antenna.
  9. Unsnap the bezel from the rear quarter panel.
  10. Remove the antenna bezel.

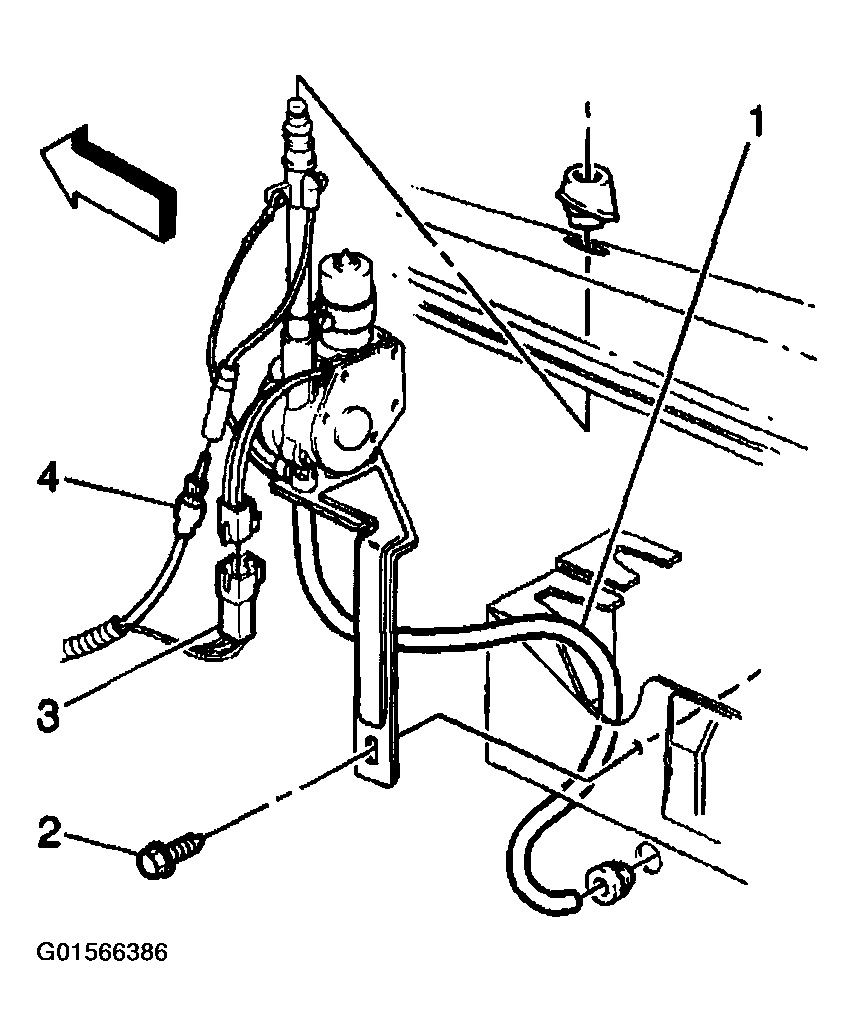

    Fig 1: Removing Power Antenna
    G01566386Courtesy of GENERAL MOTORS CORP.
