Installation Procedure

  1. Install the antenna cable to the vehicle.
  2. Install the antenna cable though the grommet on the cowl.

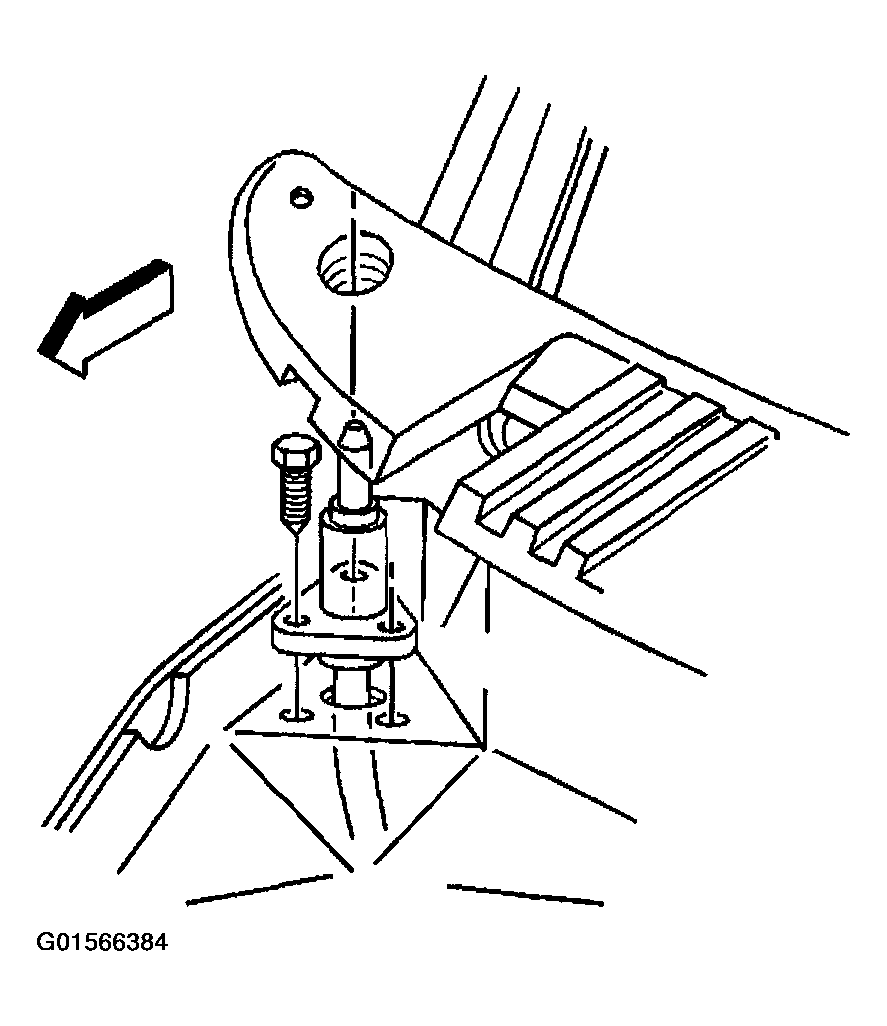

    Fig 1: Installing Antenna Cable At Cowl
    G01566384Courtesy of GENERAL MOTORS CORP.
  3. Install the antenna cable to the clip at the HVAC module.
  4. Roll the instrument panel up. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages, and Console.
  5. Install the radio. Refer to RADIO REPLACEMENT .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the antenna mounting bolts.

    Tighten

    Tighten the antenna mounting bolts to 2 N.m (18 lb in).

  7. Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  8. Install the radio antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT .

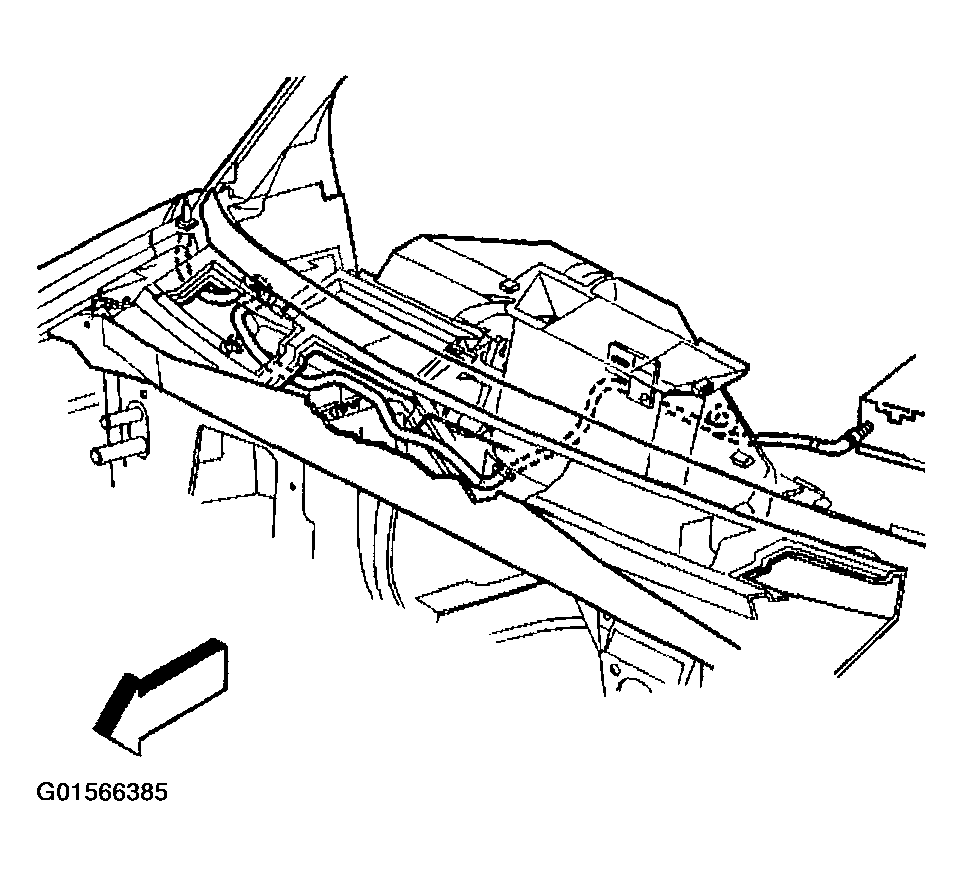

    Fig 2: View Of Fixed Mast Antenna Cable Routing
    G01566385Courtesy of GENERAL MOTORS CORP.
  9. Install the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  10. Verify component operation.
