Installation Procedure

NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.
  1. Install the antenna mast to the antenna base.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Secure the antenna mast to the antenna base.

    Tighten

    Tighten the antenna mast to 5.5 N.m (49 lb in).

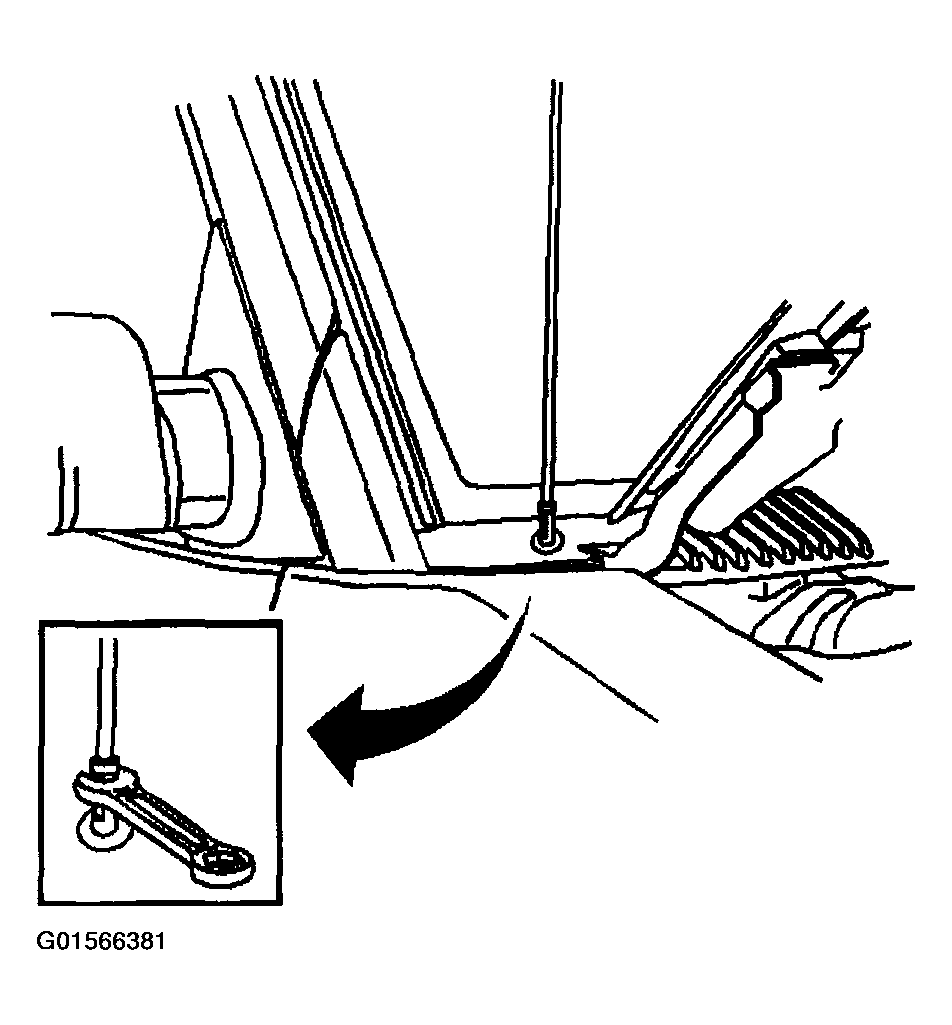

    Fig 1: Installing Fixed Antenna Mast
    G01566381Courtesy of GENERAL MOTORS CORP.
