Installation Procedure

  1. Connect the electrical connector to the audio control.
  2. Install the audio control to the trim panel and press to engage the tabs.

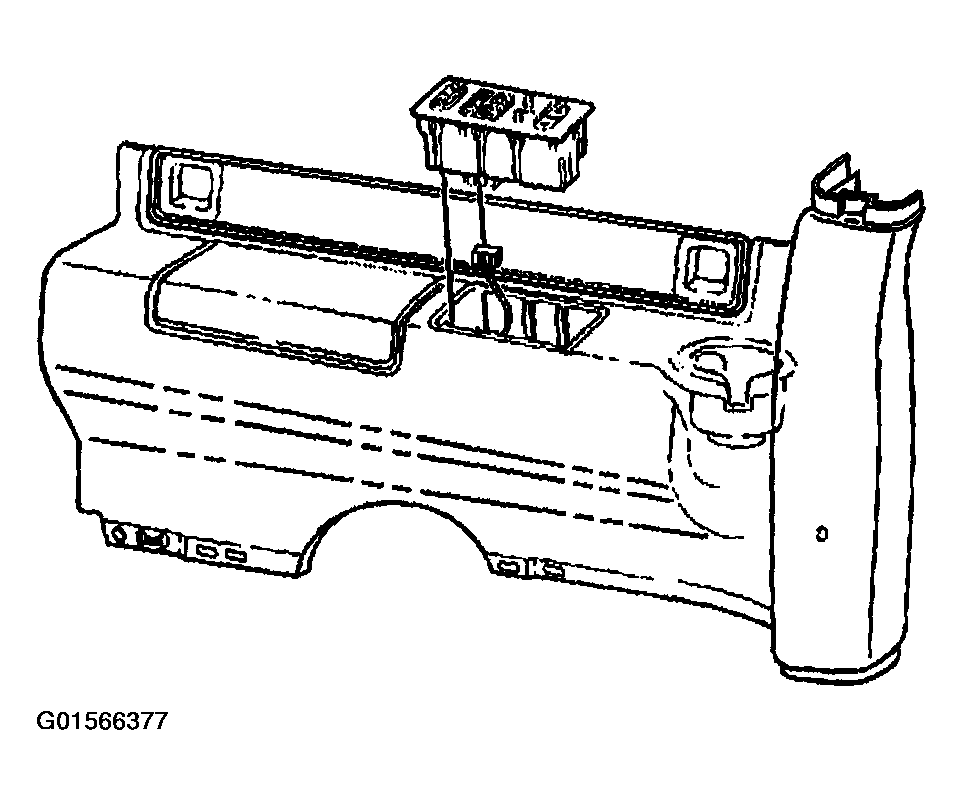

    Fig 1: Installing Rear Seat Audio Control
    G01566377Courtesy of GENERAL MOTORS CORP.
