Removal Procedure

  1. Remove the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
  2. Disconnect the electrical connector from the amplifier.

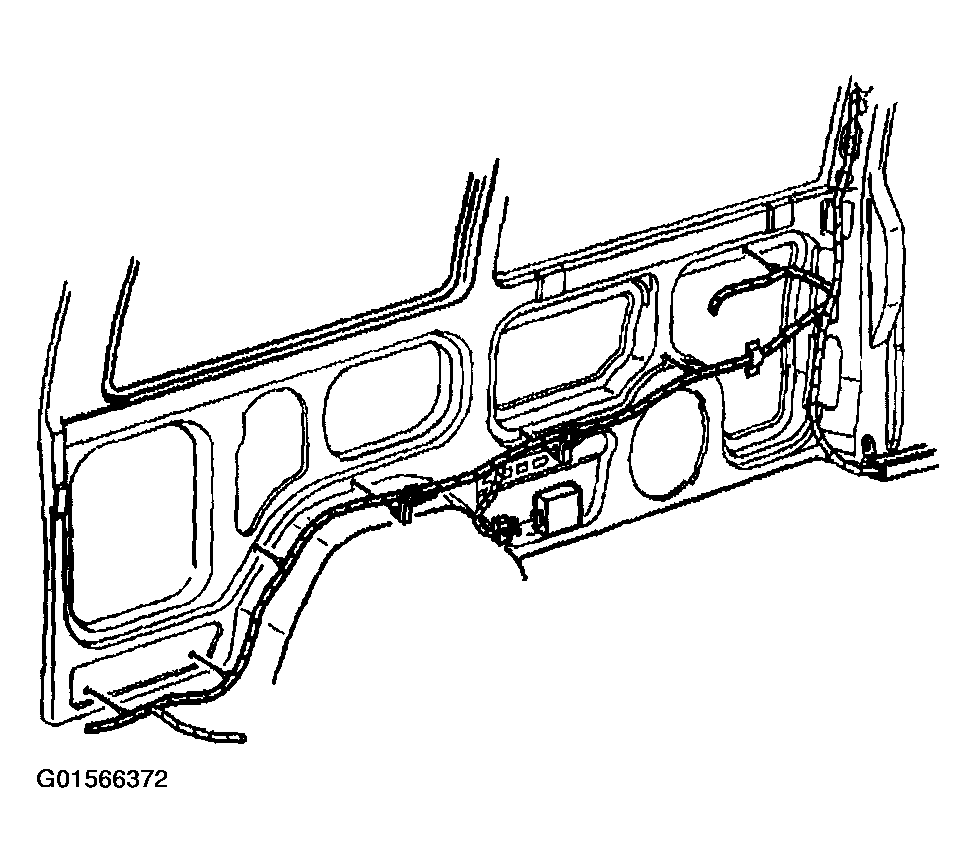

    Fig 1: View Of Amplifier & Wiring
    G01566372Courtesy of GENERAL MOTORS CORP.
  3. Remove the amplifier from the vehicle by sliding the amplifier toward the rear of the vehicle.

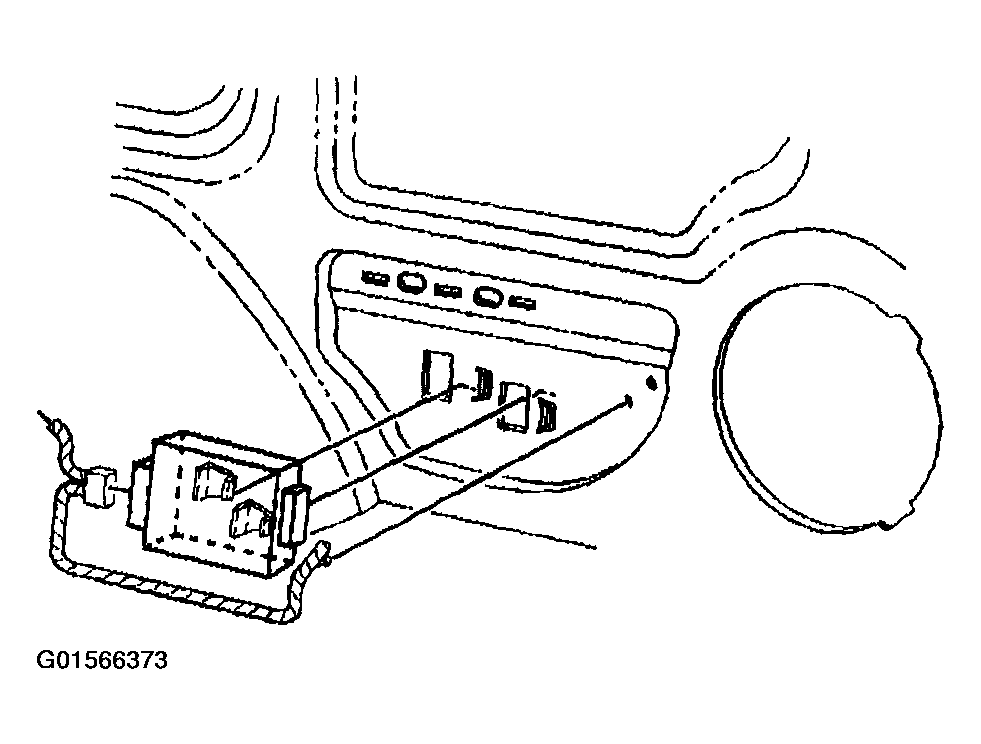

    Fig 2: Removing Amplifier
    G01566373Courtesy of GENERAL MOTORS CORP.
