Installation Procedure

  1. Align the mounting tabs and slide the amplifier toward the front of the vehicle in order to install the amplifier to the vehicle.

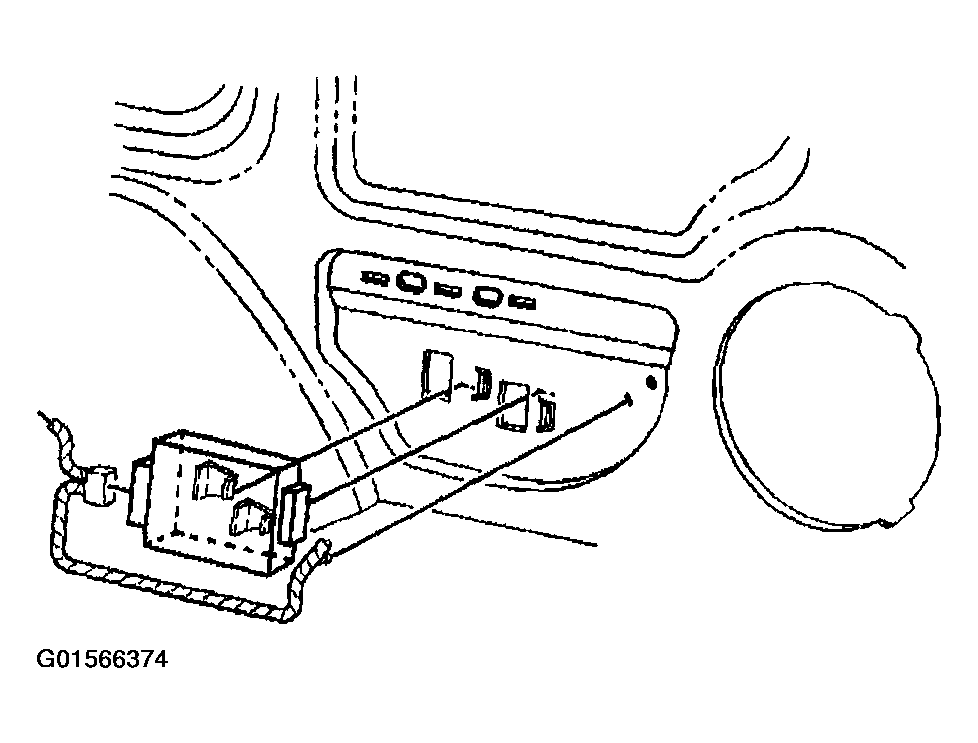

    Fig 1: Installing Amplifier
    G01566374Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the amplifier.
  3. Install the body front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.

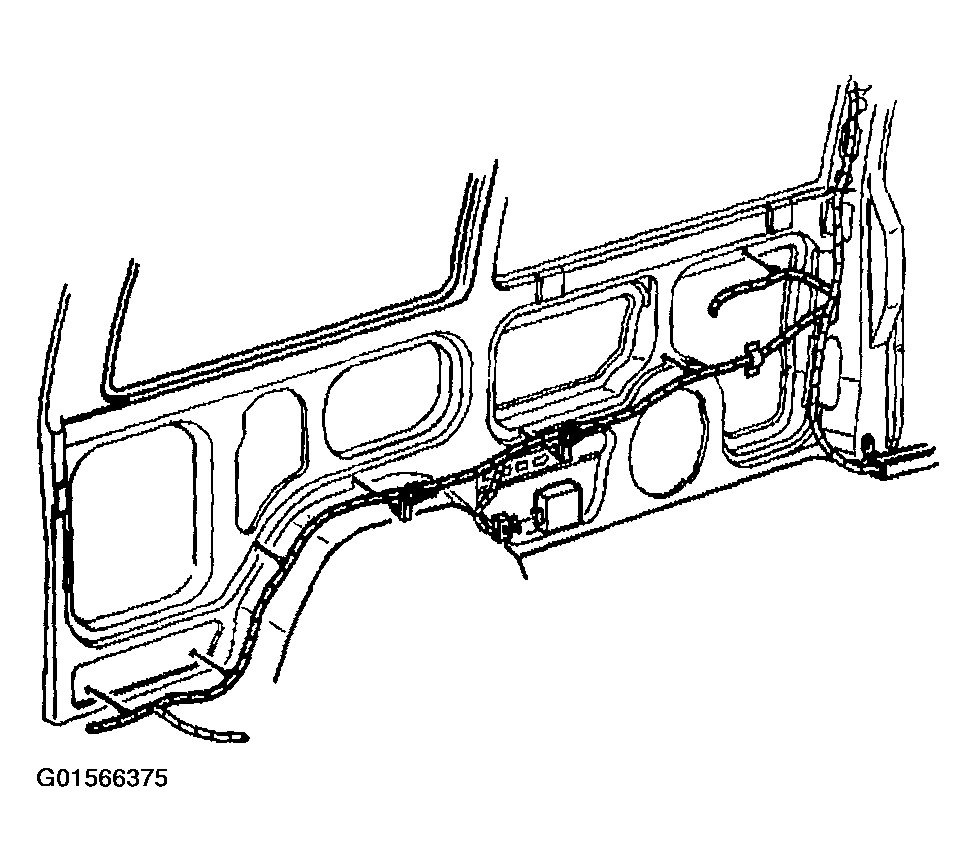

    Fig 2: View Of Amplifier & Wiring
    G01566375Courtesy of GENERAL MOTORS CORP.
