Speakers Inoperative - Subwoofer

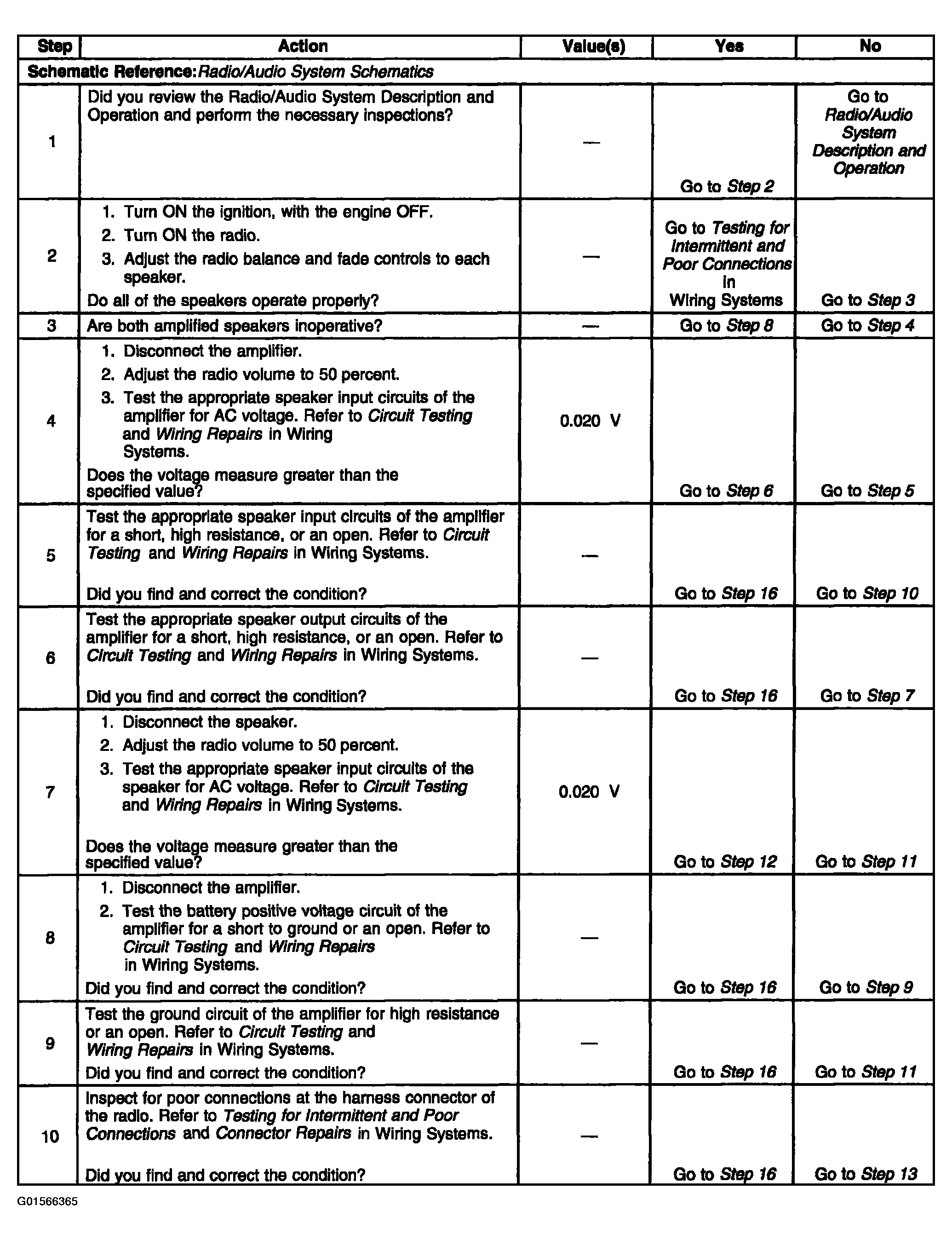

Fig 1: Speakers Inoperative - Subwoofer Troubleshooting Table (1 Of 2)
G01566365Courtesy of GENERAL MOTORS CORP.

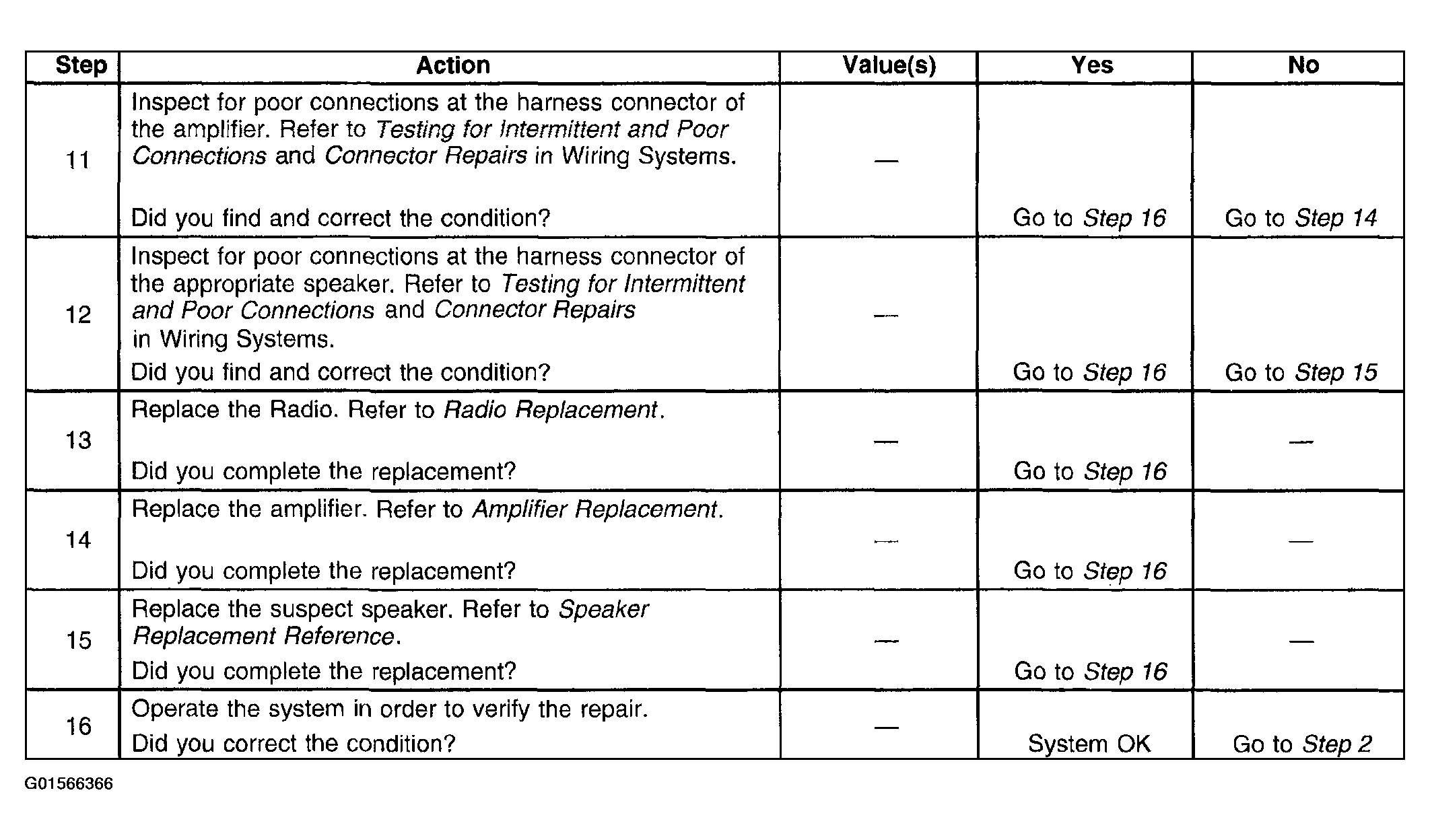

Fig 2: Speakers Inoperative - Subwoofer Troubleshooting Table (2 Of 2)
G01566366Courtesy of GENERAL MOTORS CORP.
