Remote Playback Device - Audio Noise

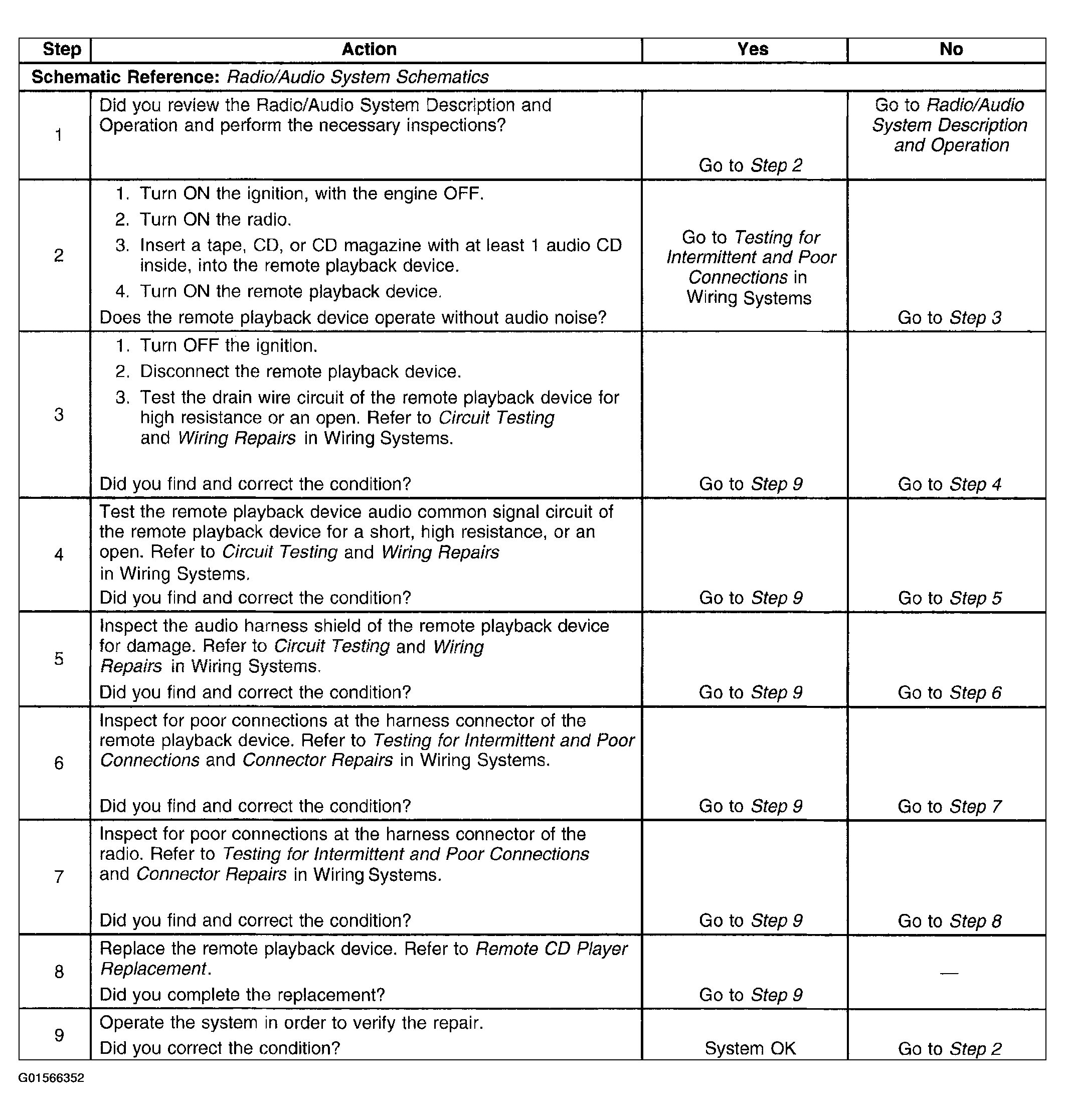

Fig 1: Remote Playback Device - Audio Noise Troubleshooting Table

G01566352

Courtesy of GENERAL MOTORS CORP.
