Radio Displays LOC, LOCKED, or CODE (Non-Class 2 Radio)

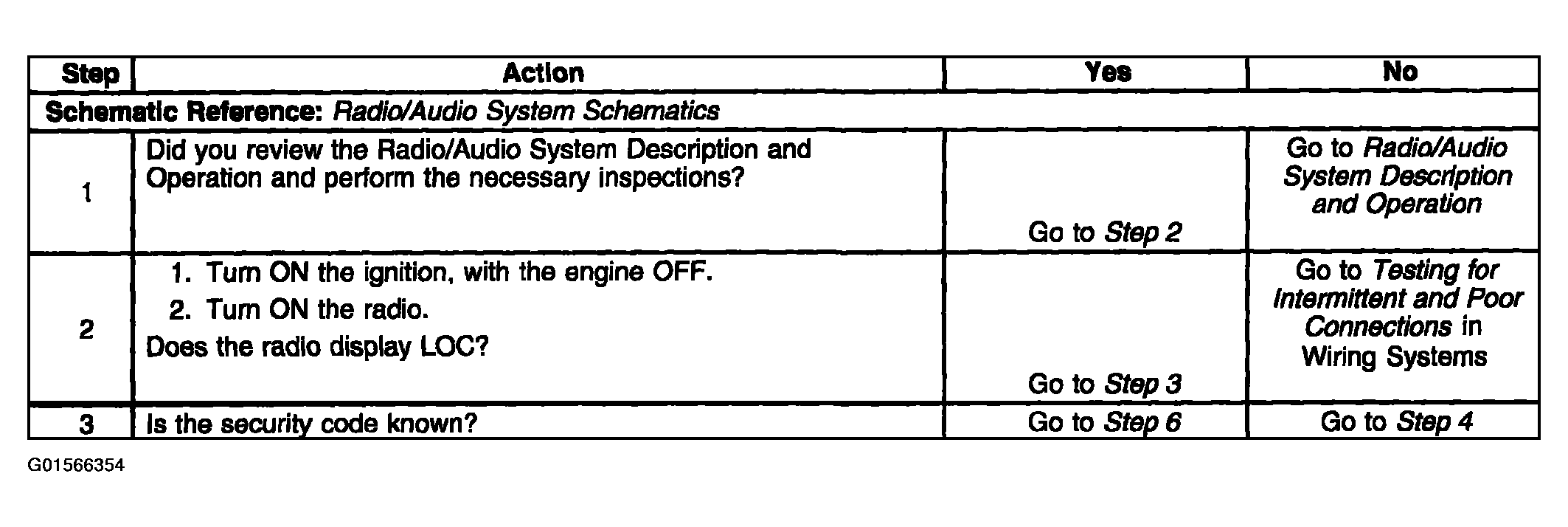

Fig 1: Radio Displays LOC, LOCKED, Or CODE (Non-Class 2 Radio) Troubleshooting Table (1 Of 2)
G01566354Courtesy of GENERAL MOTORS CORP.

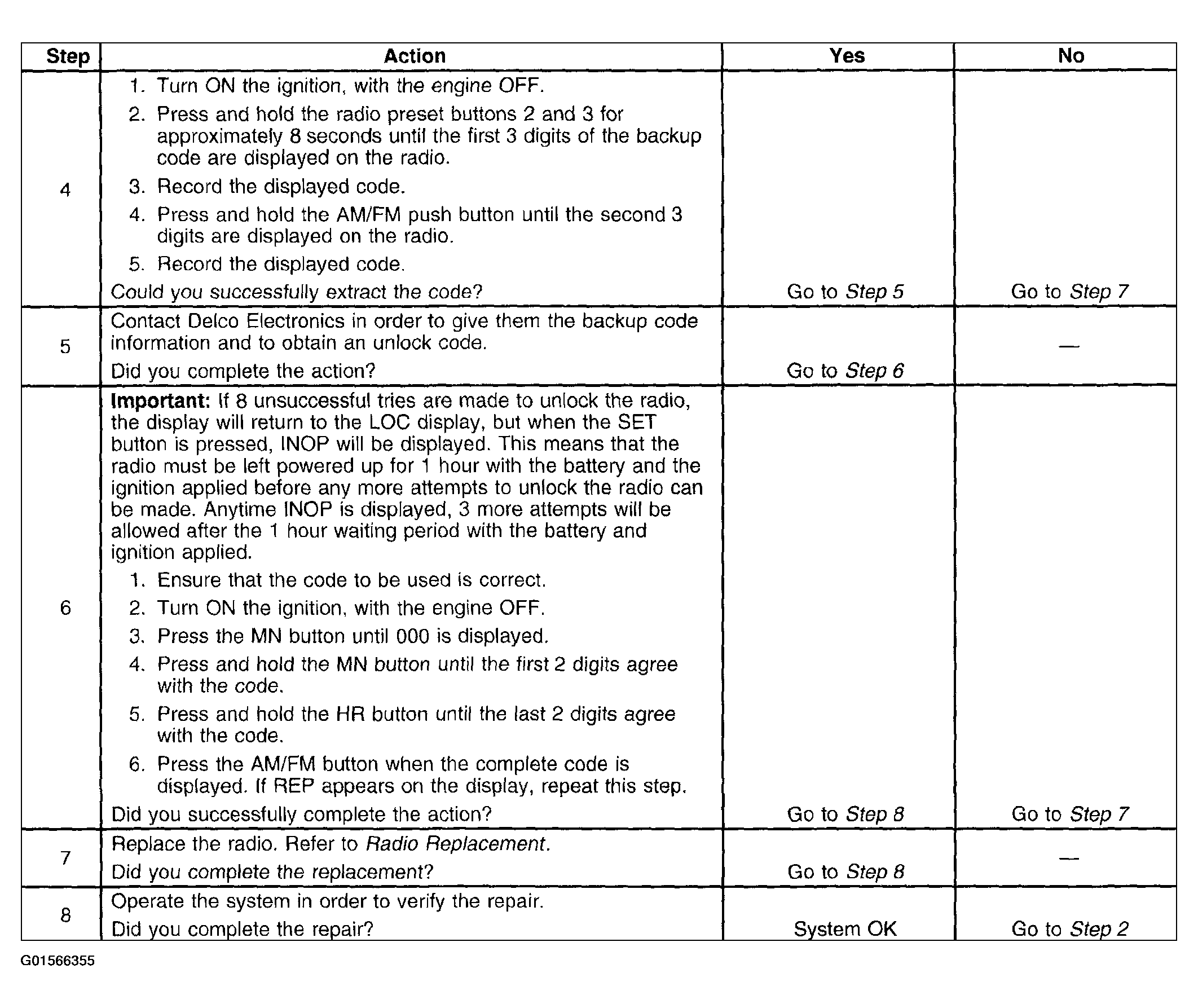

Fig 2: Radio Displays LOC, LOCKED, Or CODE (Non-Class 2 Radio) Troubleshooting Table (2 Of 2)
G01566355Courtesy of GENERAL MOTORS CORP.
