Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Entertainment System >> Diagnostic Information and Procedures >> Radio Audio Inoperative at Rear Seat Audio (RSA) Control

Radio Audio Inoperative at Rear Seat Audio (RSA) Control

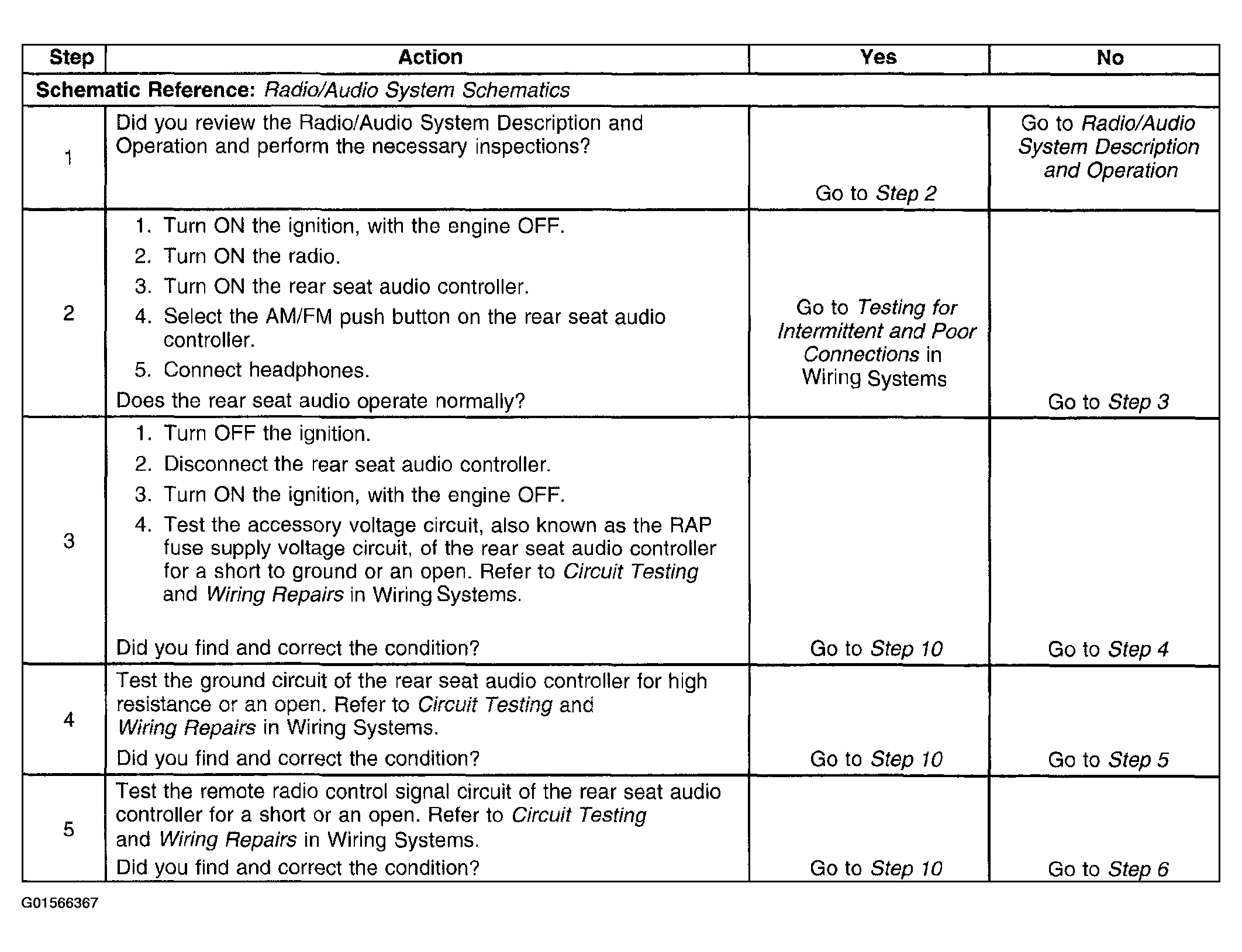

Fig 1: Radio Audio Inoperative At Rear Seat Audio (RSA) Control Troubleshooting Table (1 Of 2)
G01566367Courtesy of GENERAL MOTORS CORP.

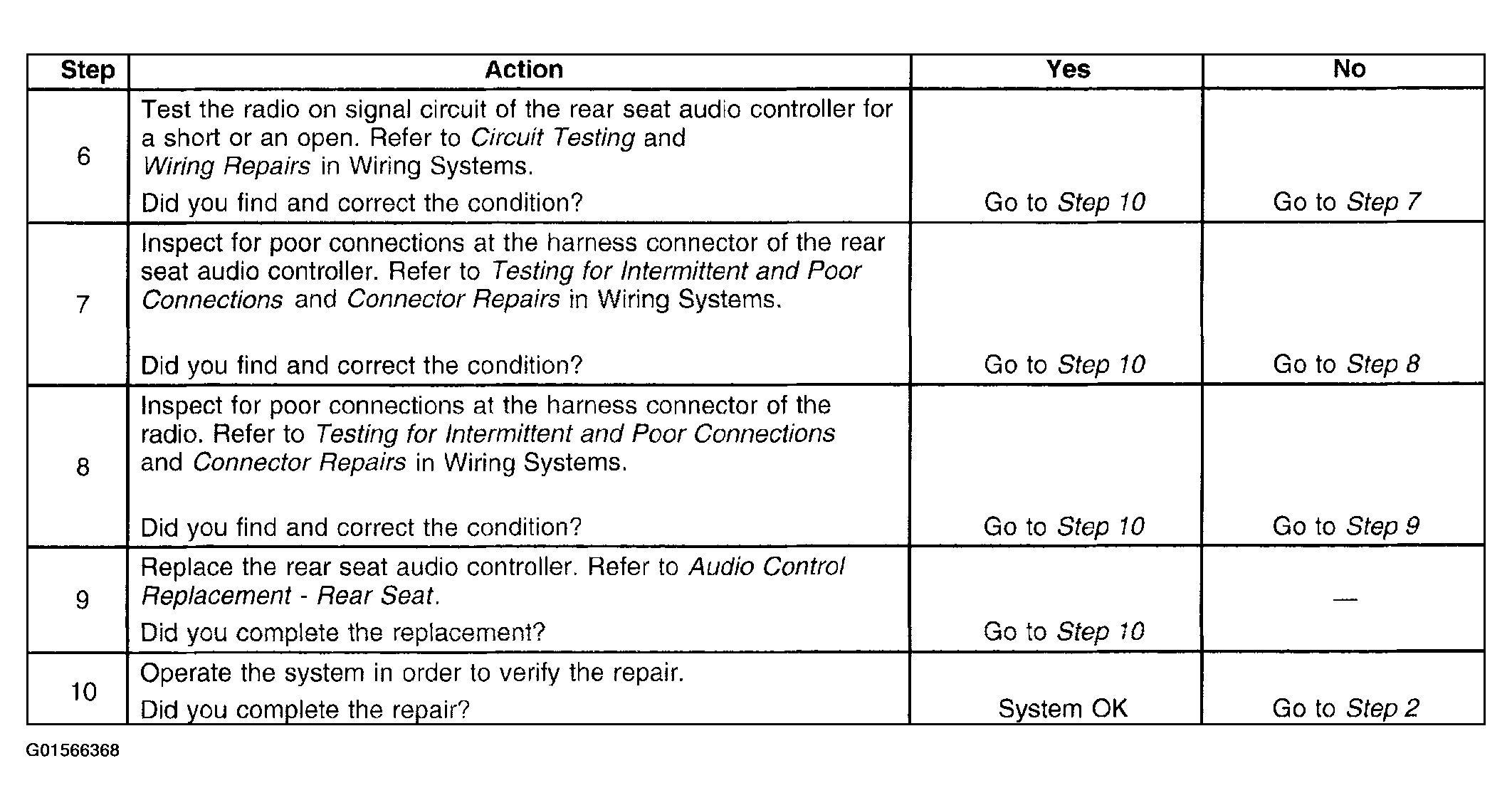

Fig 2: Radio Audio Inoperative At Rear Seat Audio (RSA) Control Troubleshooting Table (2 Of 2)
G01566368Courtesy of GENERAL MOTORS CORP.
