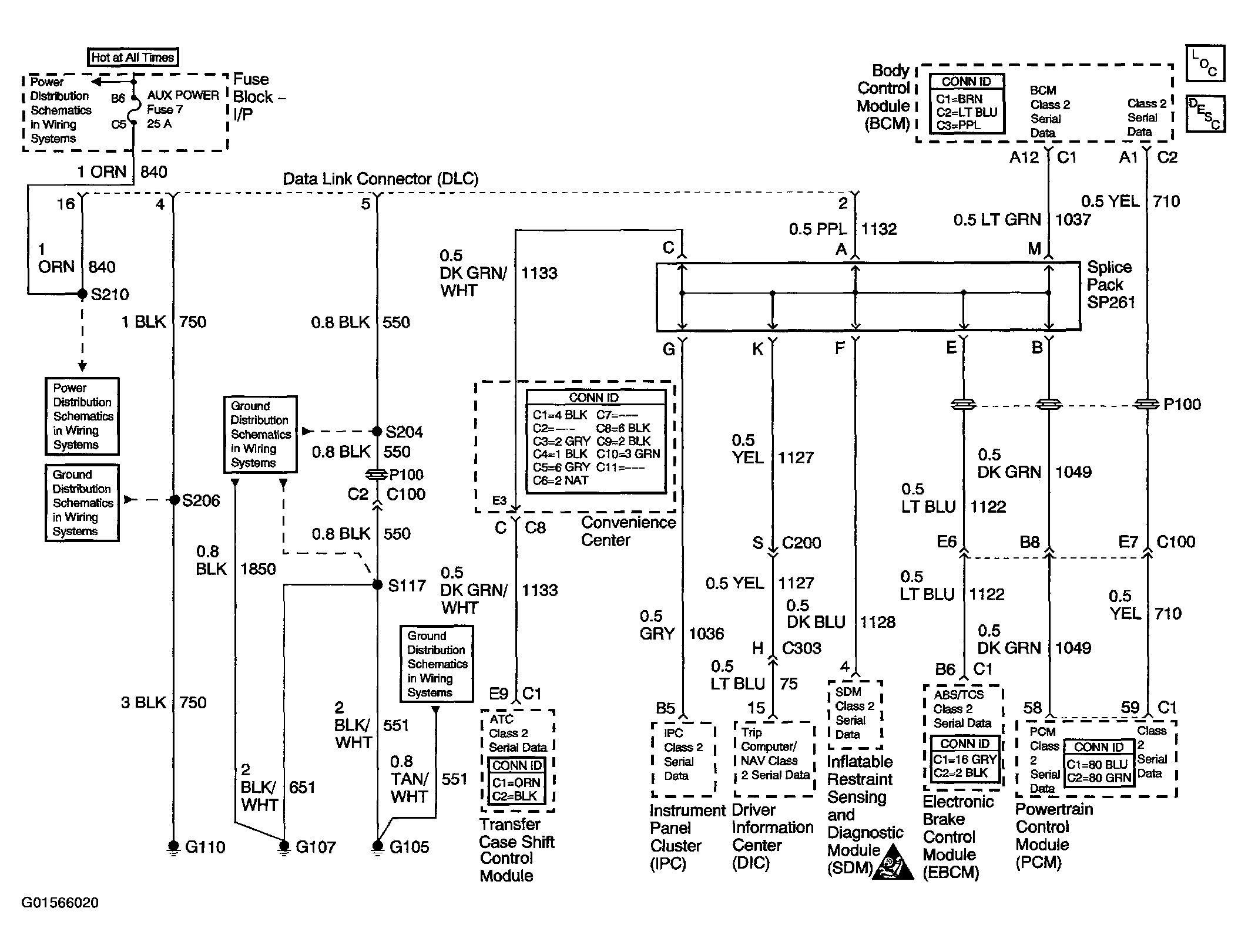

Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Link Communications System >> Schematic and Routing Diagrams >> Data Link Connector (DLC) Schematic
