Diagnostic Test

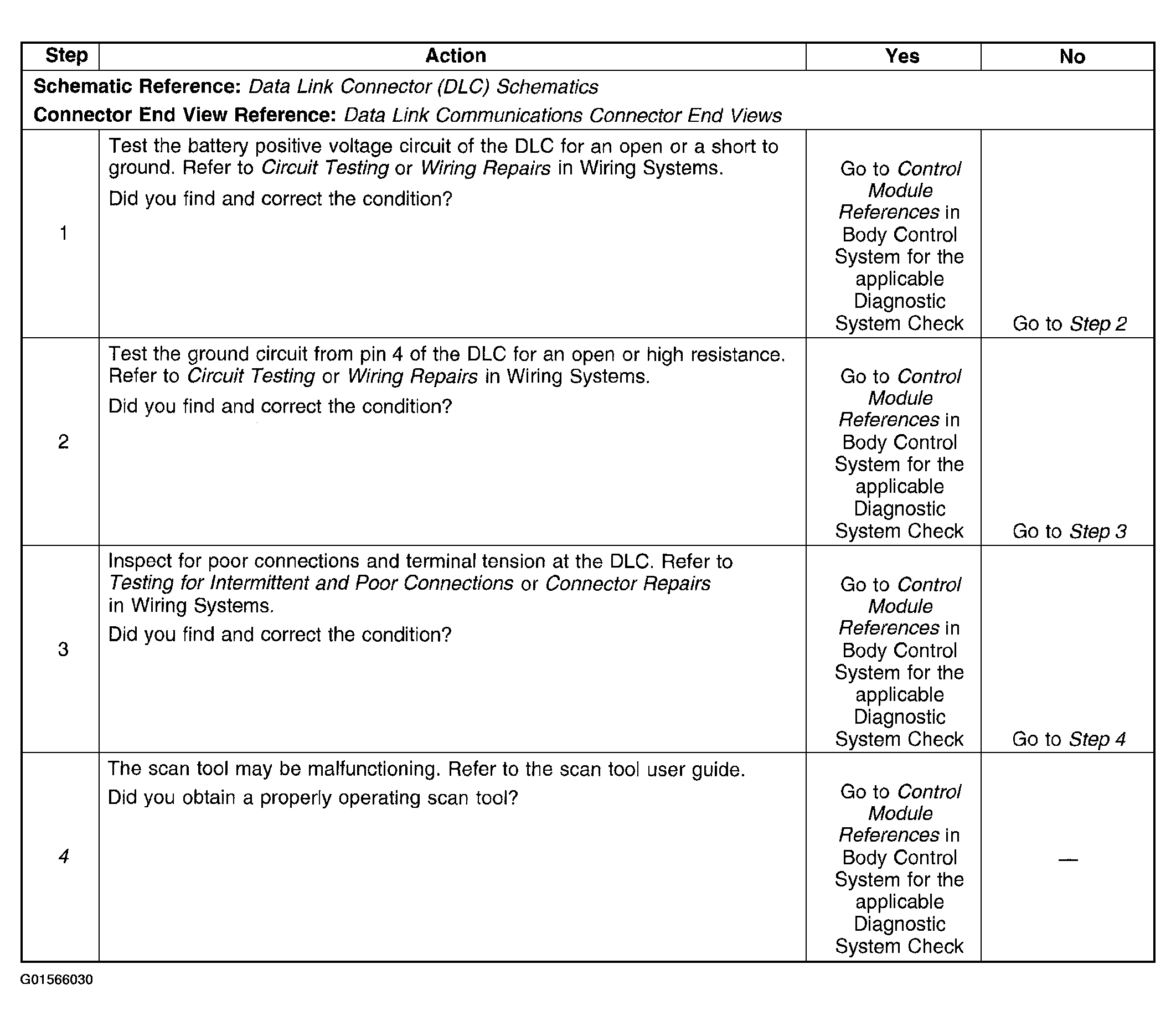

Fig 1: Scan Tool Does Not Power Up Diagnostic Test
G01566030Courtesy of GENERAL MOTORS CORP.
