Diagnostic Test

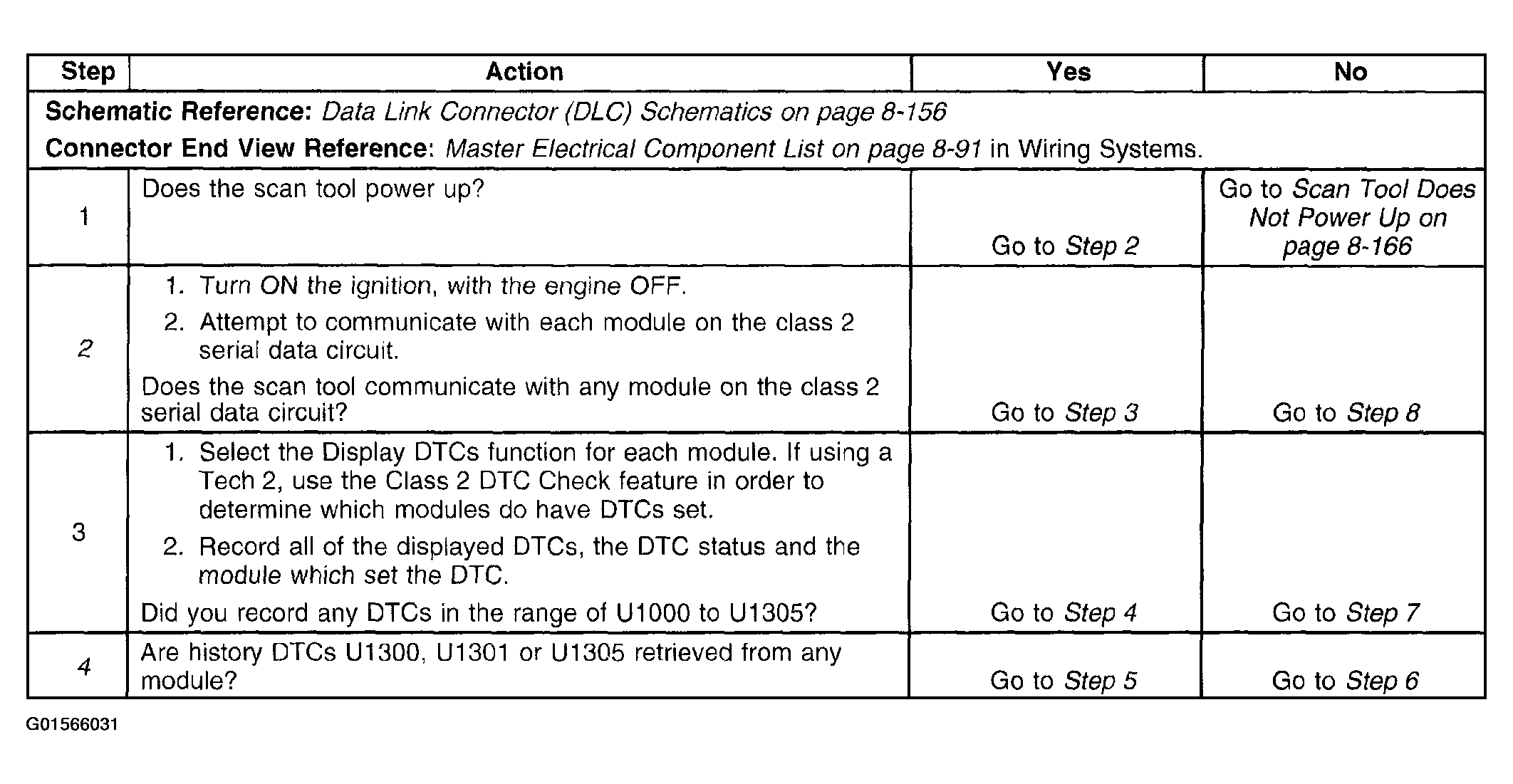

Fig 1: Scan Tool Does Not Communicate with Class 2 Device Diagnostic Test (1 Of 4)
G01566031Courtesy of GENERAL MOTORS CORP.

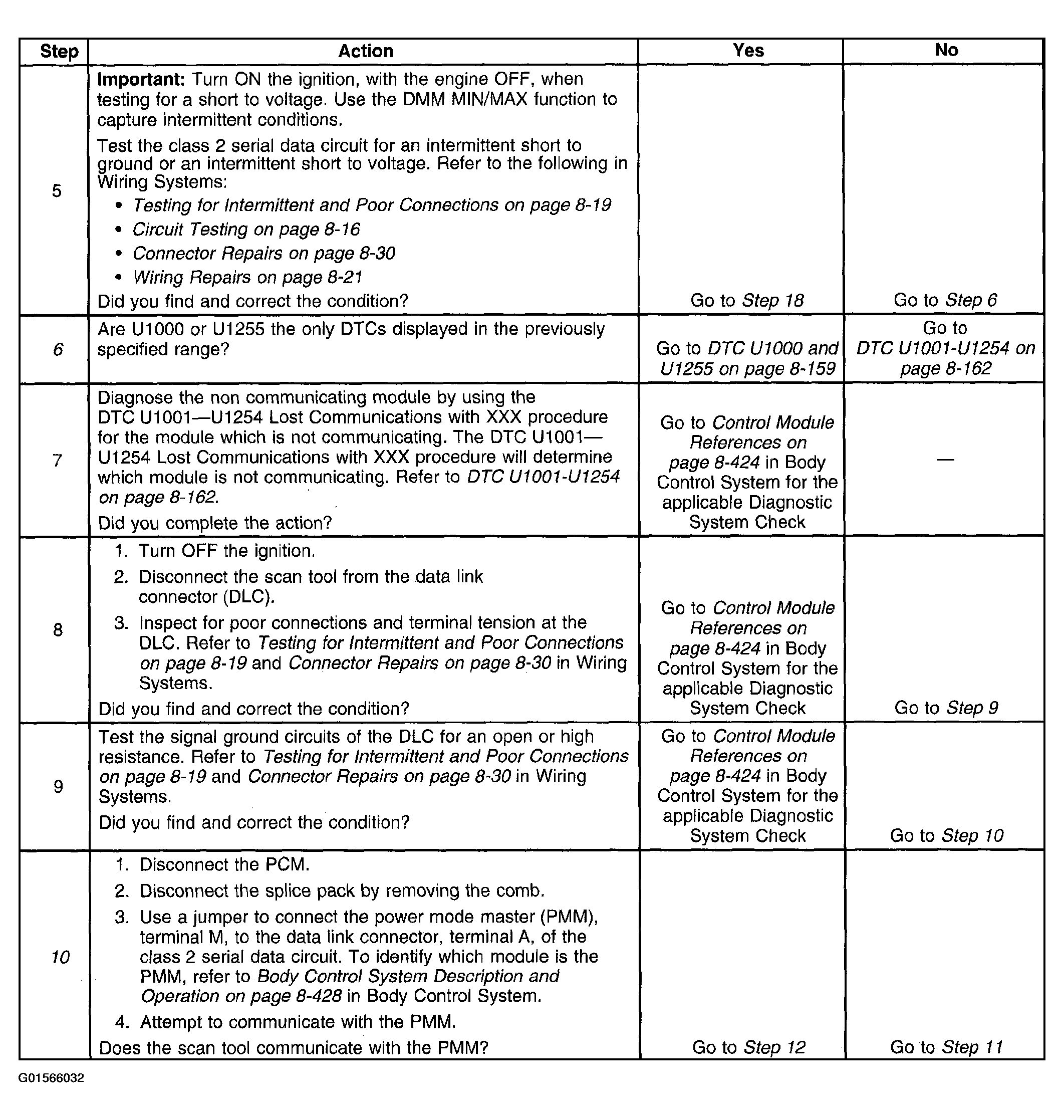

Fig 2: Scan Tool Does Not Communicate with Class 2 Device Diagnostic Test (2 Of 4)
G01566032Courtesy of GENERAL MOTORS CORP.

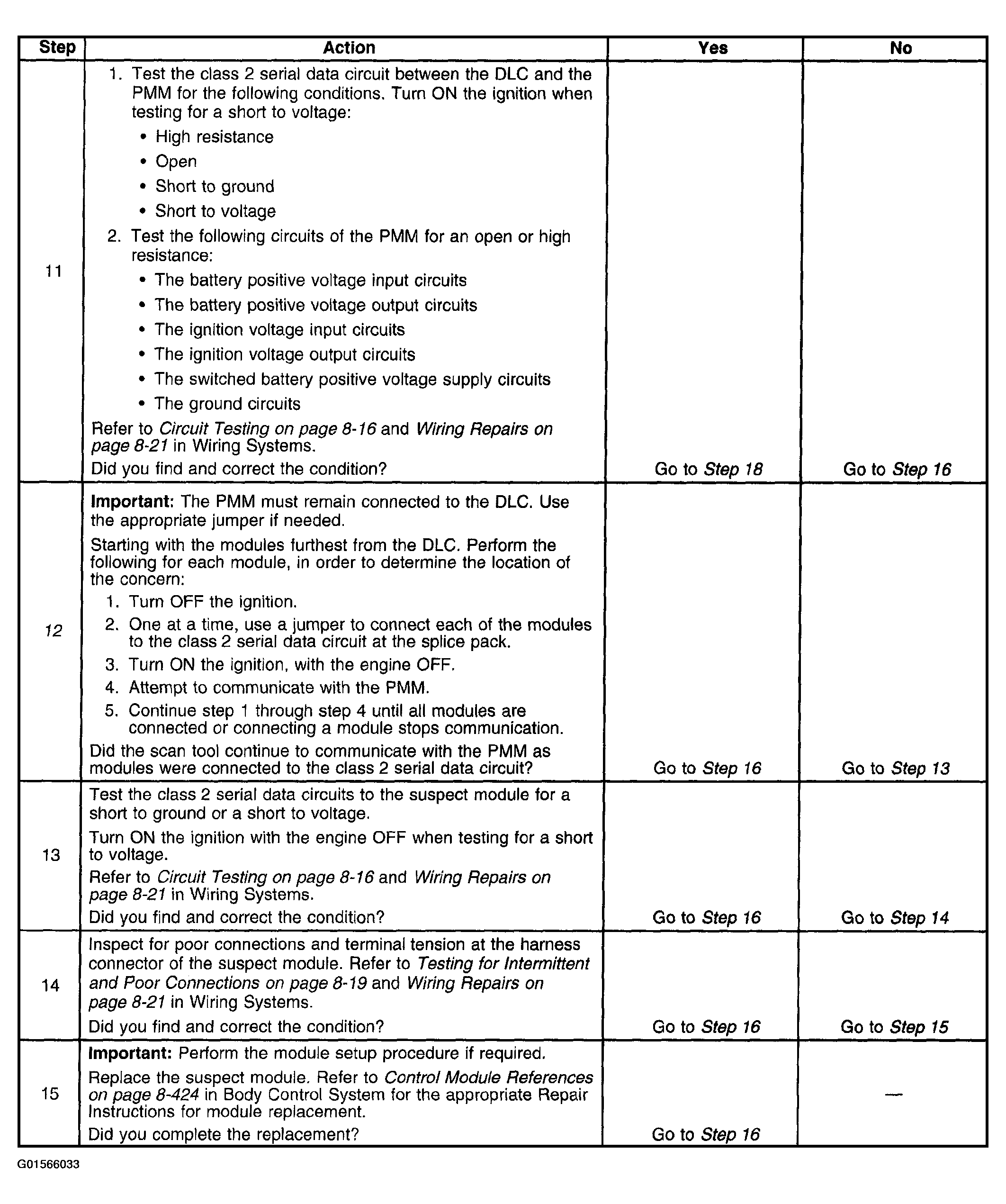

Fig 3: Scan Tool Does Not Communicate with Class 2 Device Diagnostic Test (3 Of 4)
G01566033Courtesy of GENERAL MOTORS CORP.

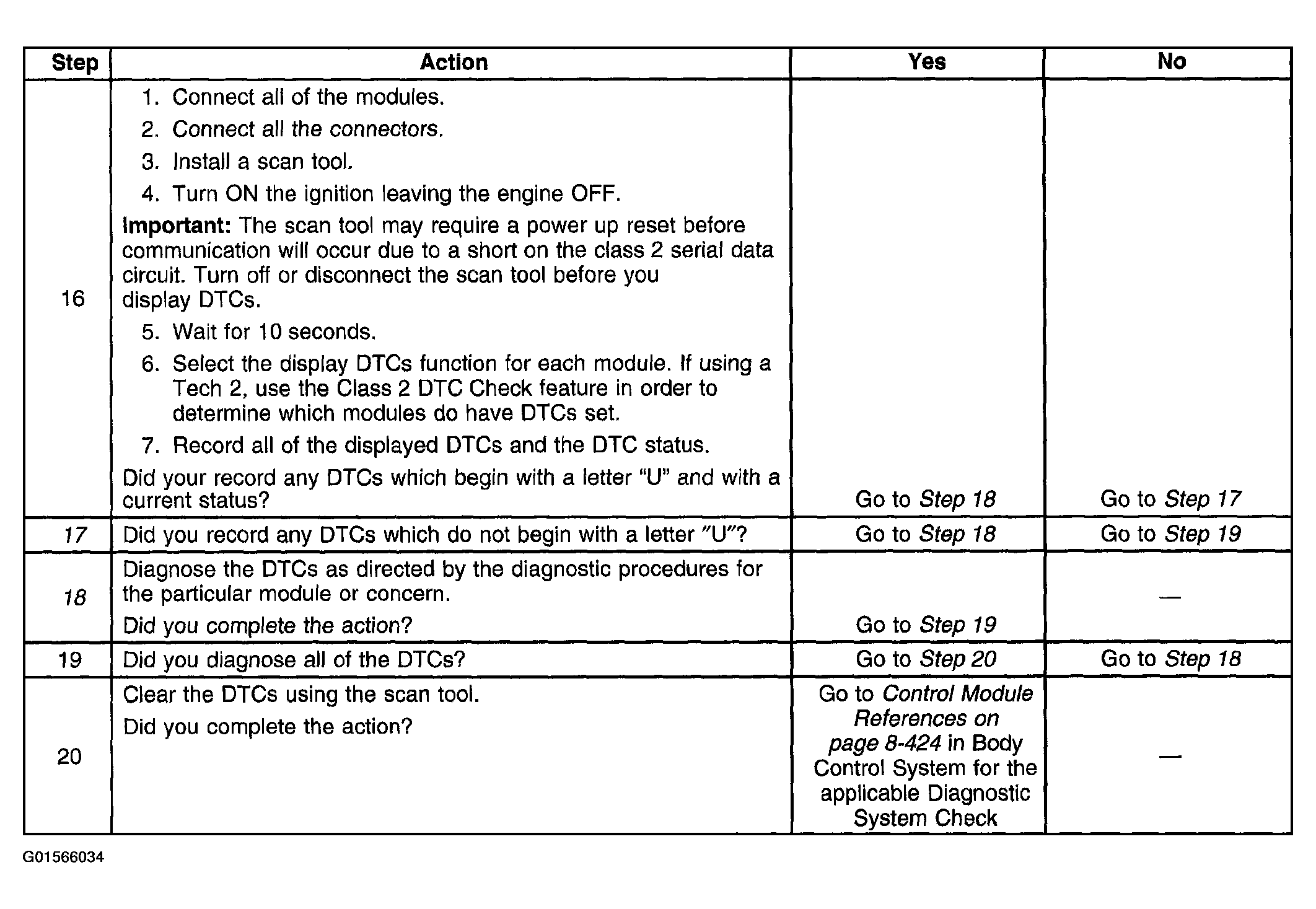

Fig 4: Scan Tool Does Not Communicate with Class 2 Device Diagnostic Test (4 Of 4)
G01566034Courtesy of GENERAL MOTORS CORP.
