Diagnostic Test

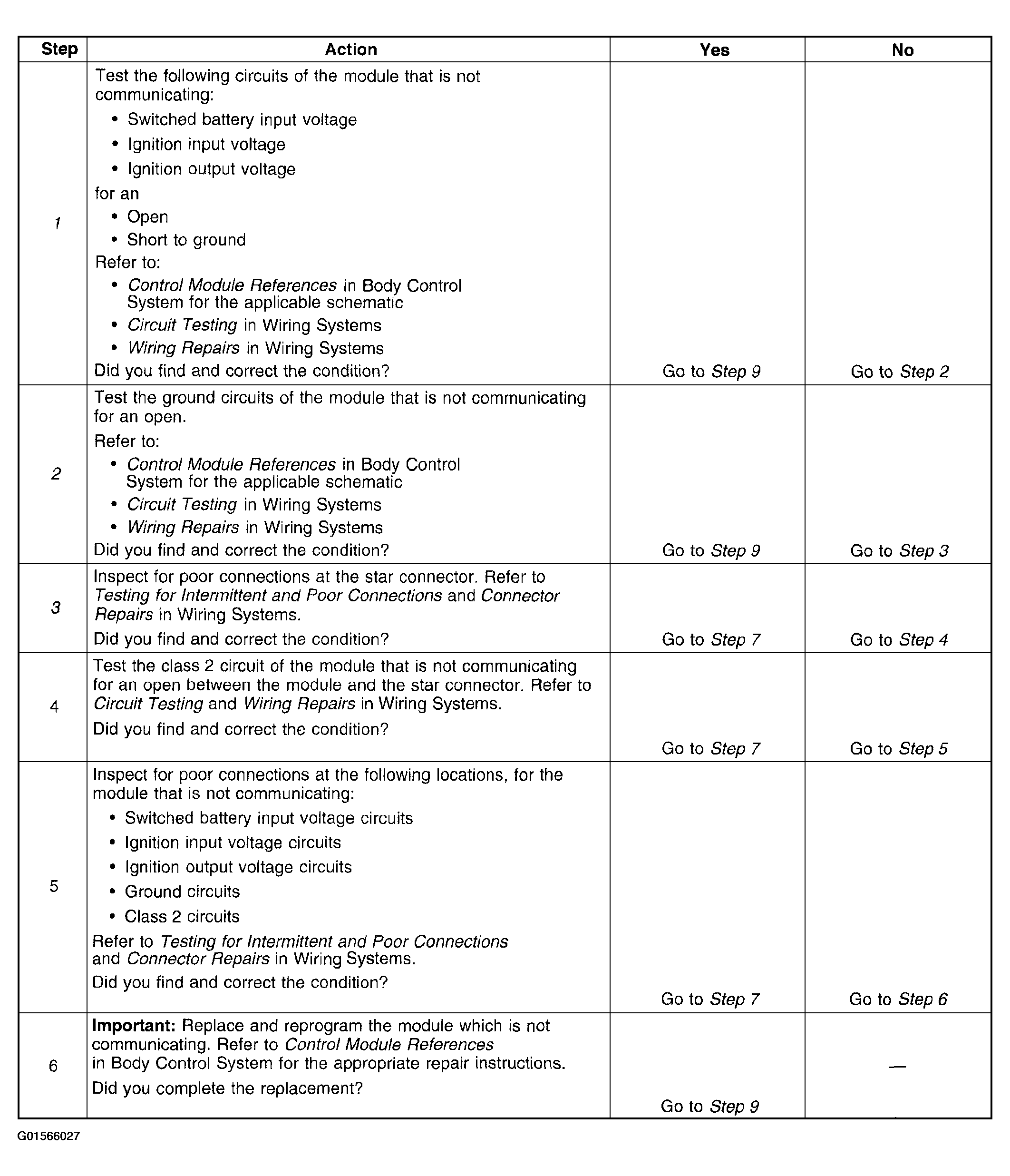

Fig 1: DTC U1001 And U1254 Diagnostic Test (1 of 2)

G01566027

Courtesy of GENERAL MOTORS CORP.

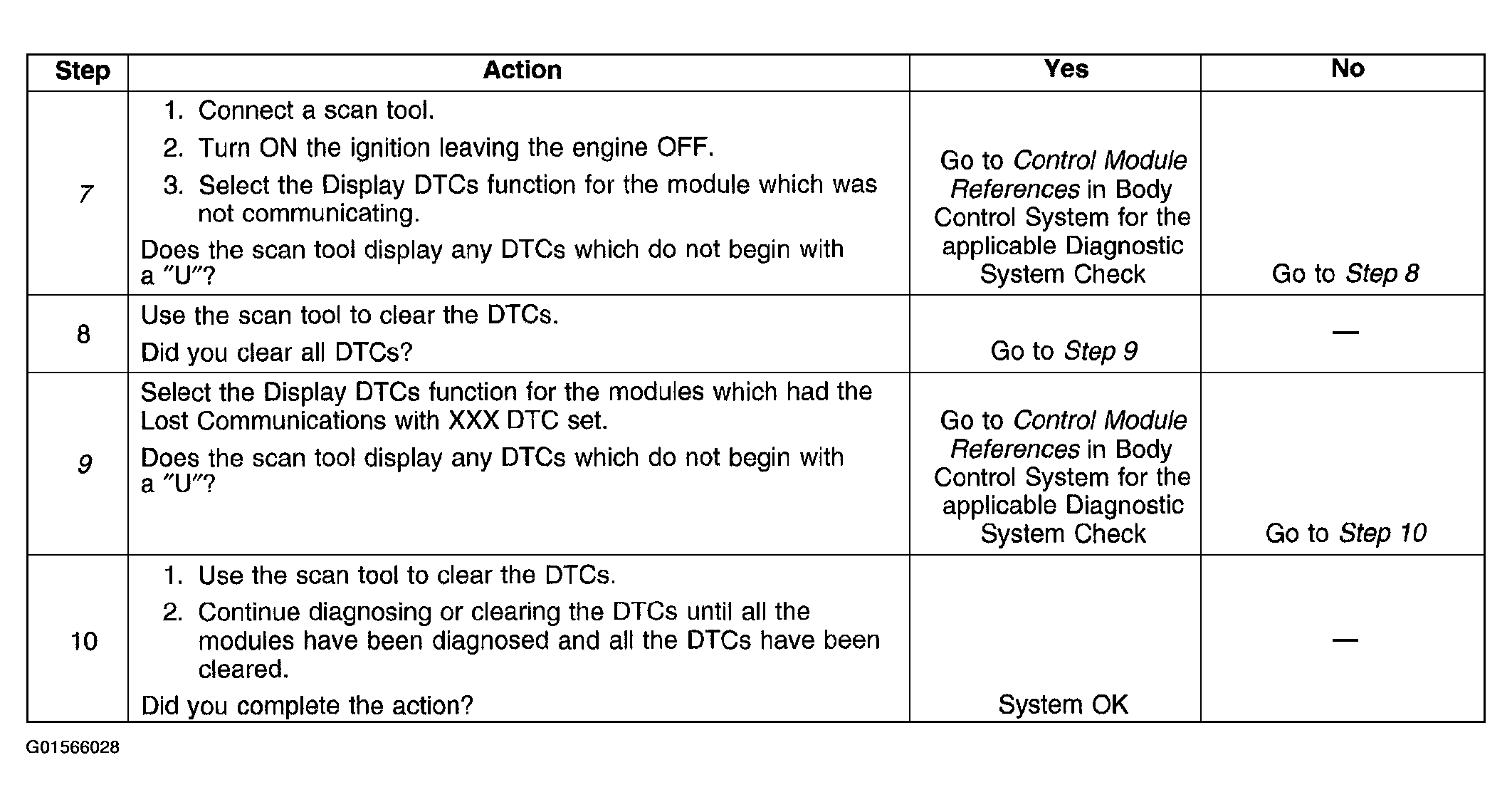

Fig 2: DTC U1001 And U1254 Diagnostic Test (2 of 2)

G01566028

Courtesy of GENERAL MOTORS CORP.
