Retained Accessory Power (RAP) Schematics (RAP Relay, BCM)

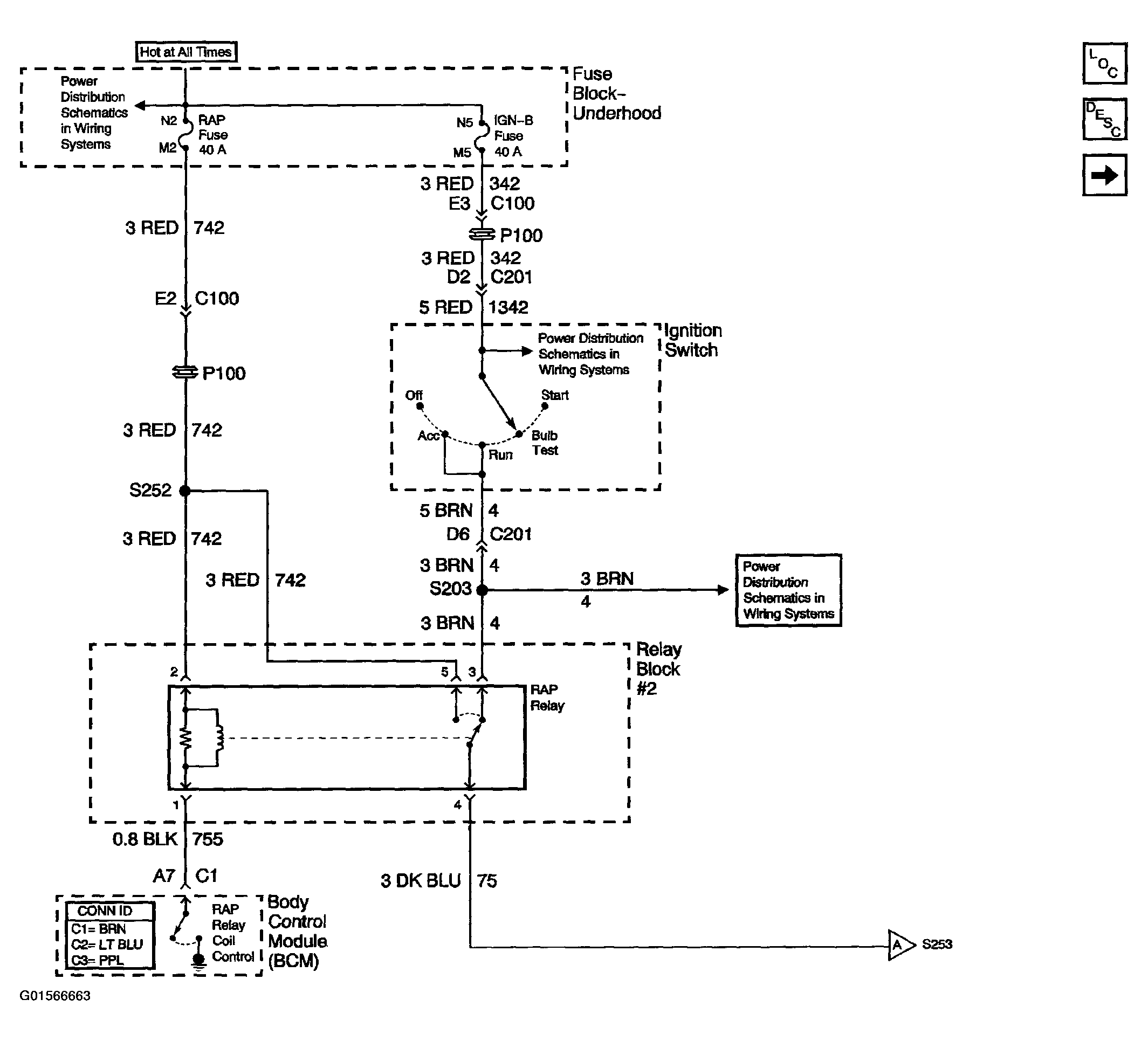

Fig 1: Retained Accessory Power (RAP) Schematics (RAP Relay, BCM)

Courtesy of GENERAL MOTORS CORP.

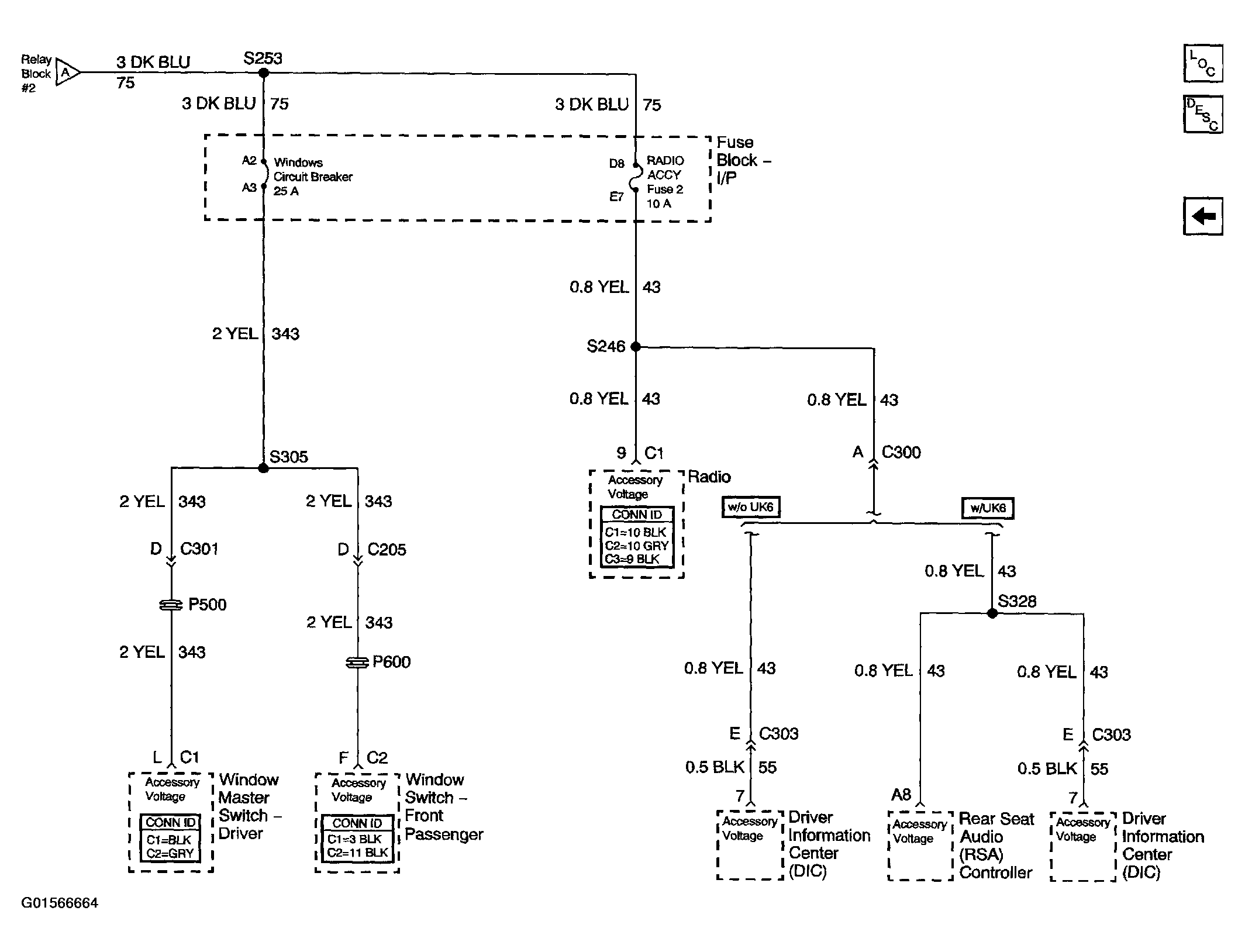

Fig 2: Retained Accessory Power (RAP) Schematics (Power Window Switch, Radio, Overhead Console)

Courtesy of GENERAL MOTORS CORP.
