Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Accessories Control Systems >> Retained Accessory Power System >> Diagnostic Information and Procedures >> Retained Accessory Power (RAP) On After Timeout

Retained Accessory Power (RAP) On After Timeout

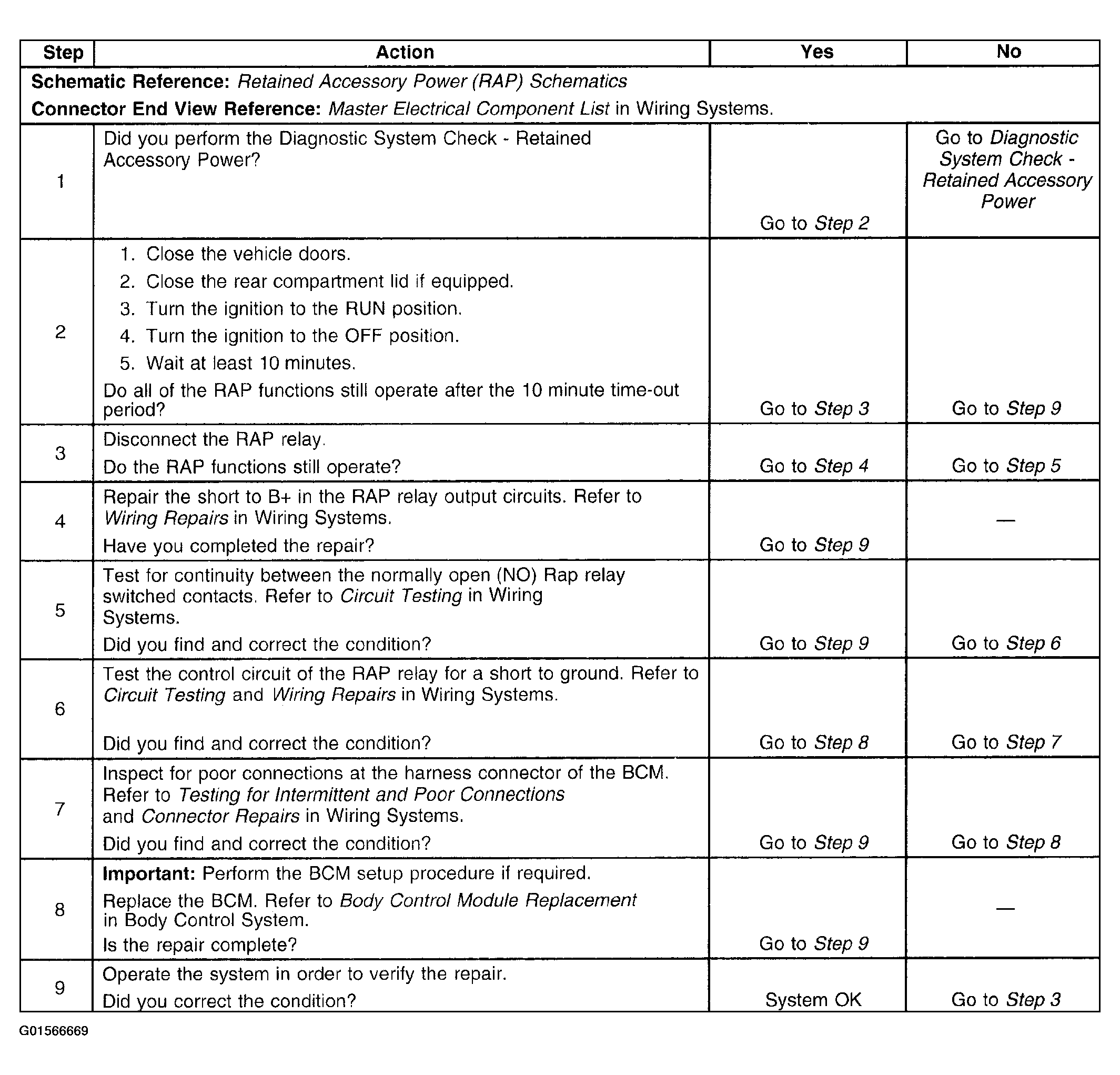

Fig 1: Retained Accessory Power On After Timeout

G01566669

Courtesy of GENERAL MOTORS CORP.
