Retained Accessory Power (RAP) Inoperative

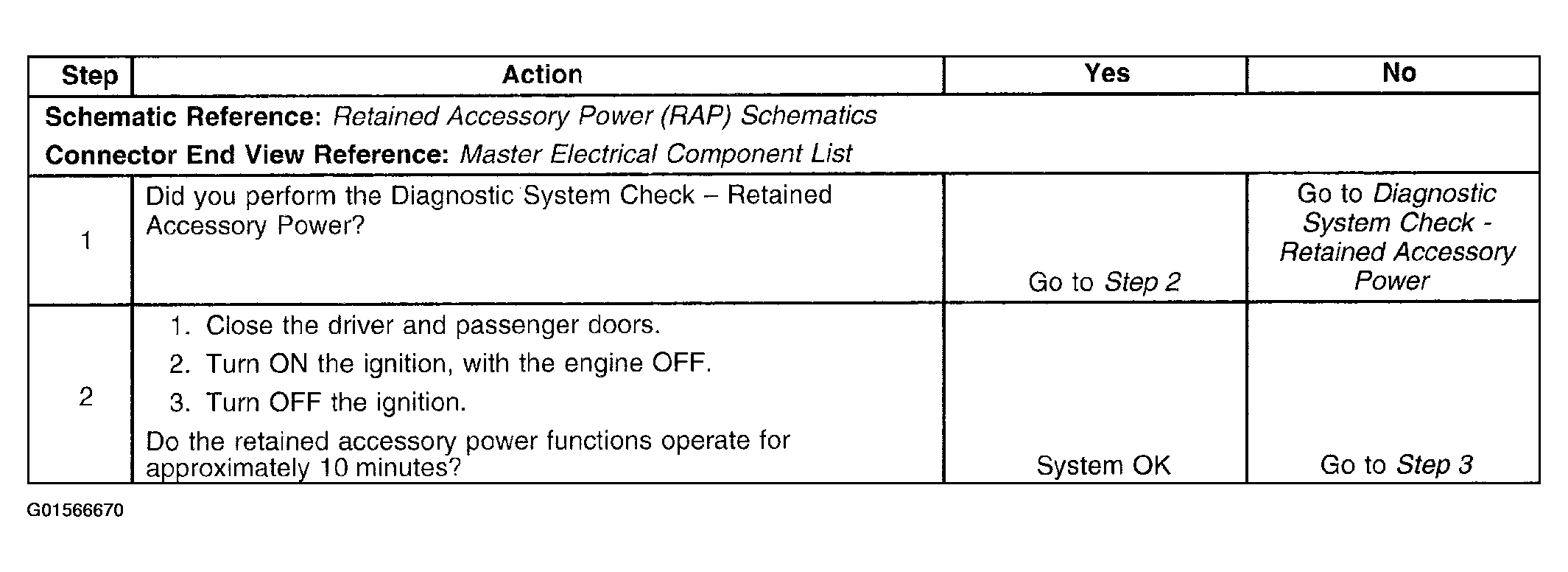

Fig 1: Retained Accessory Power Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

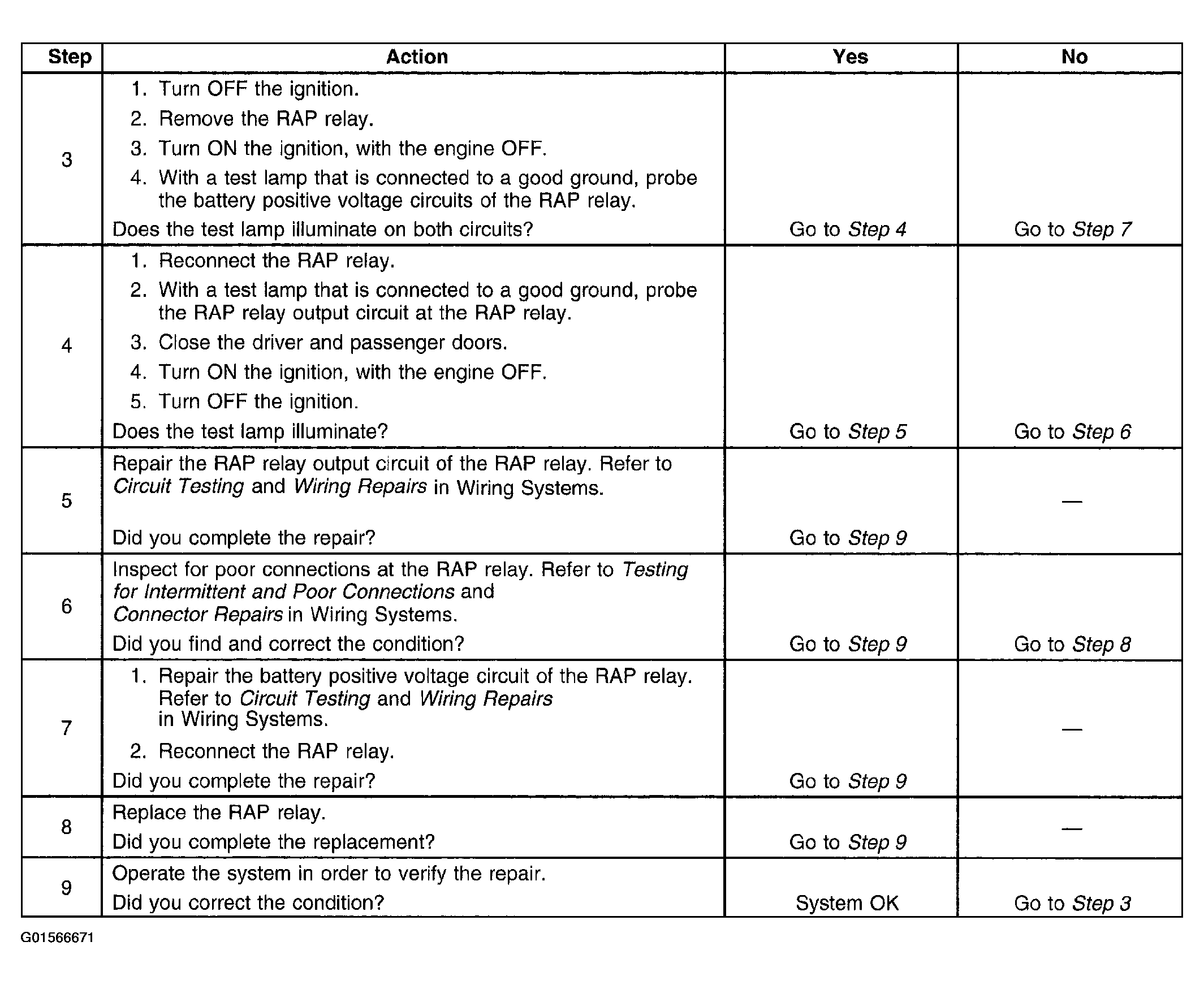

Fig 2: Retained Accessory Power Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
