Removal Procedure

  1. Release the barbed tab at the center of the access panel.

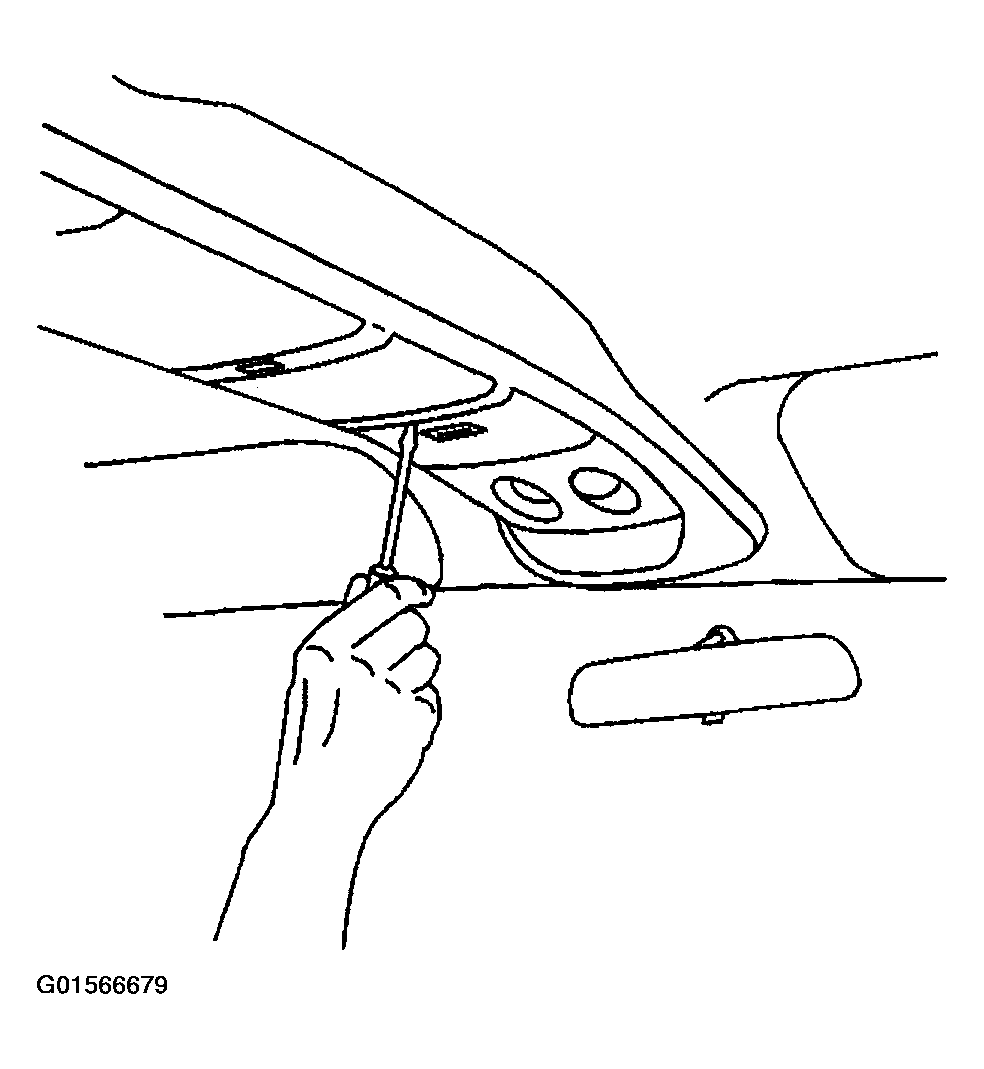

    Fig 1: Releasing Barbed Tab
    G01566679Courtesy of GENERAL MOTORS CORP.
  2. Swing the panel down and forward in order to access the module.
  3. Disconnect the electrical connector from the module and switch assembly.
    Fig 2: Disconnecting Electrical Connector From The Module And Switch Assembly
    G01566680Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the garage door opener and the switch assembly to the console.
  5. Remove the opener and the switch assembly from the console.

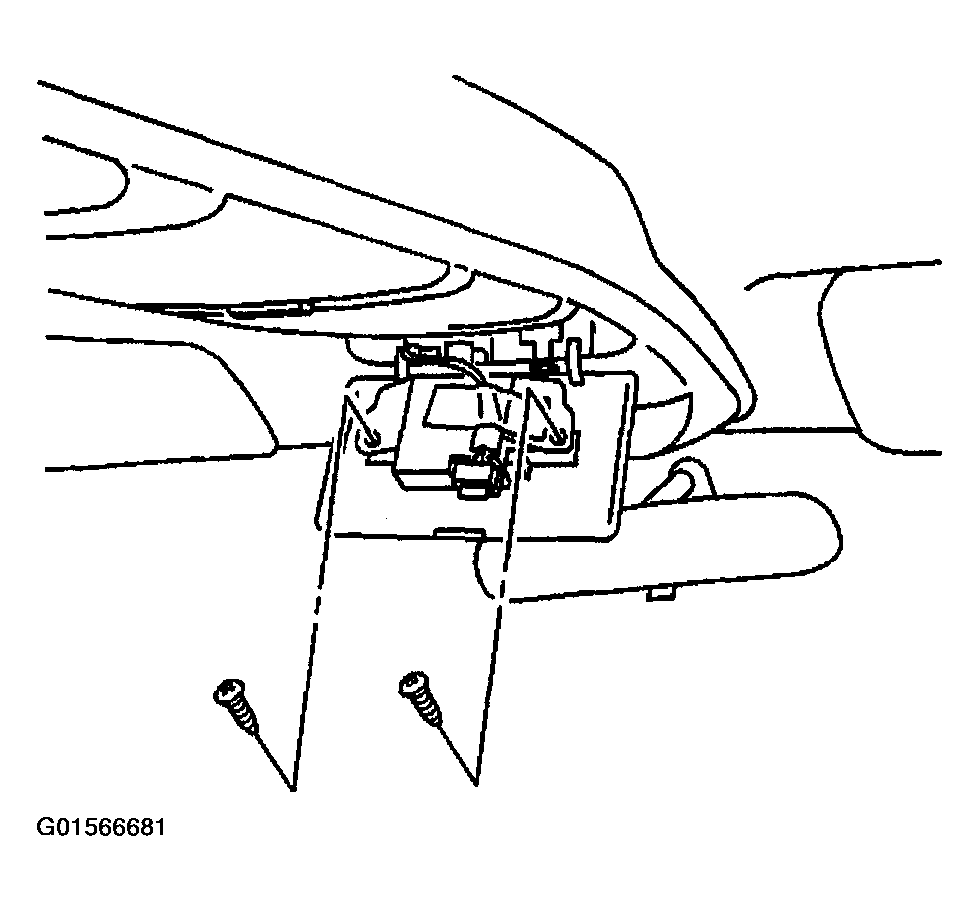

    Fig 3: Removing Opener And The Switch Assembly From The Console
    G01566681Courtesy of GENERAL MOTORS CORP.
