Speedometer and/or Odometer Inaccurate or Inoperative

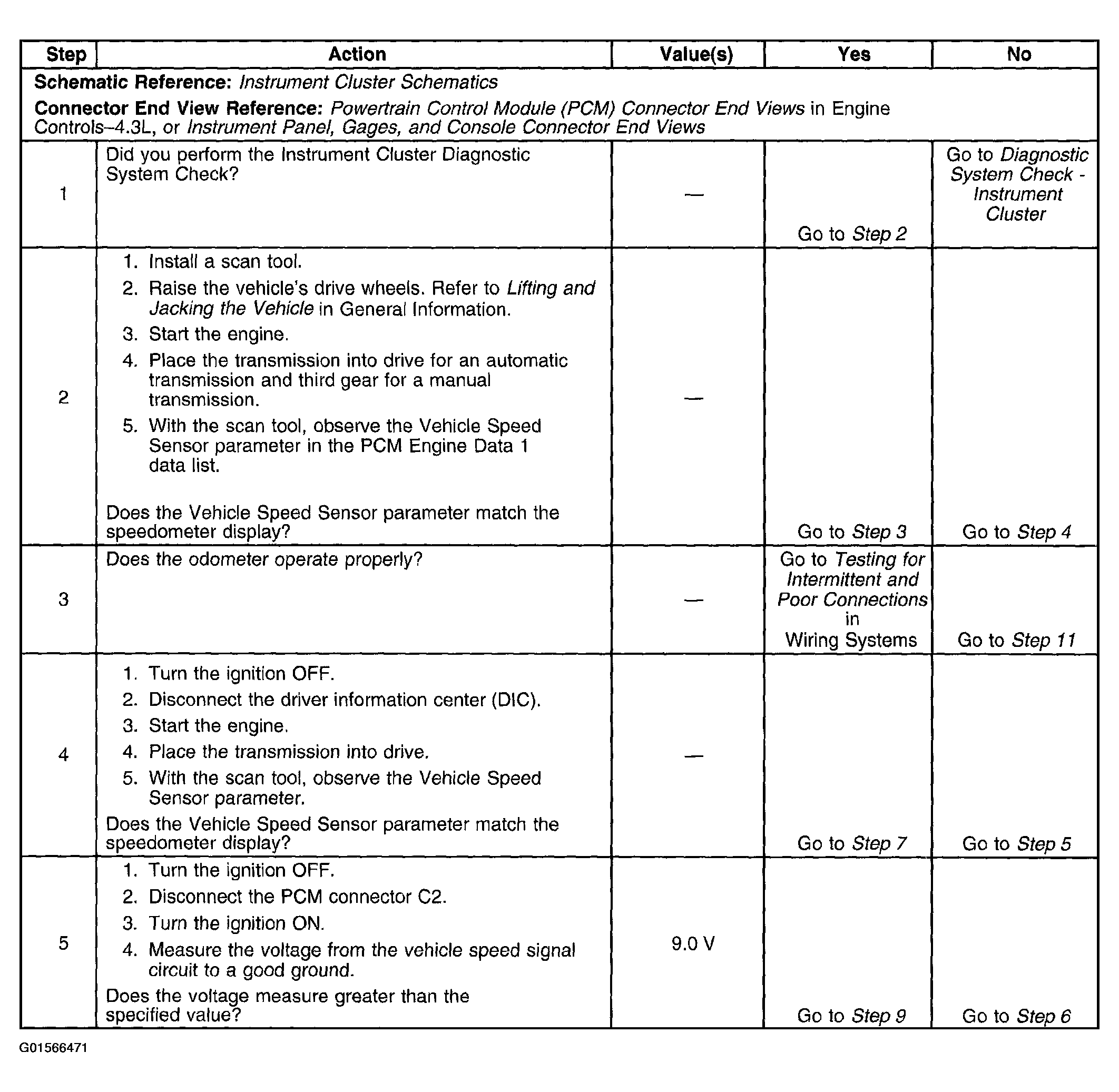

Fig 1: Speedometer And/Or Odometer Inaccurate Or Inoperative (1 Of 2)
G01566471Courtesy of GENERAL MOTORS CORP.

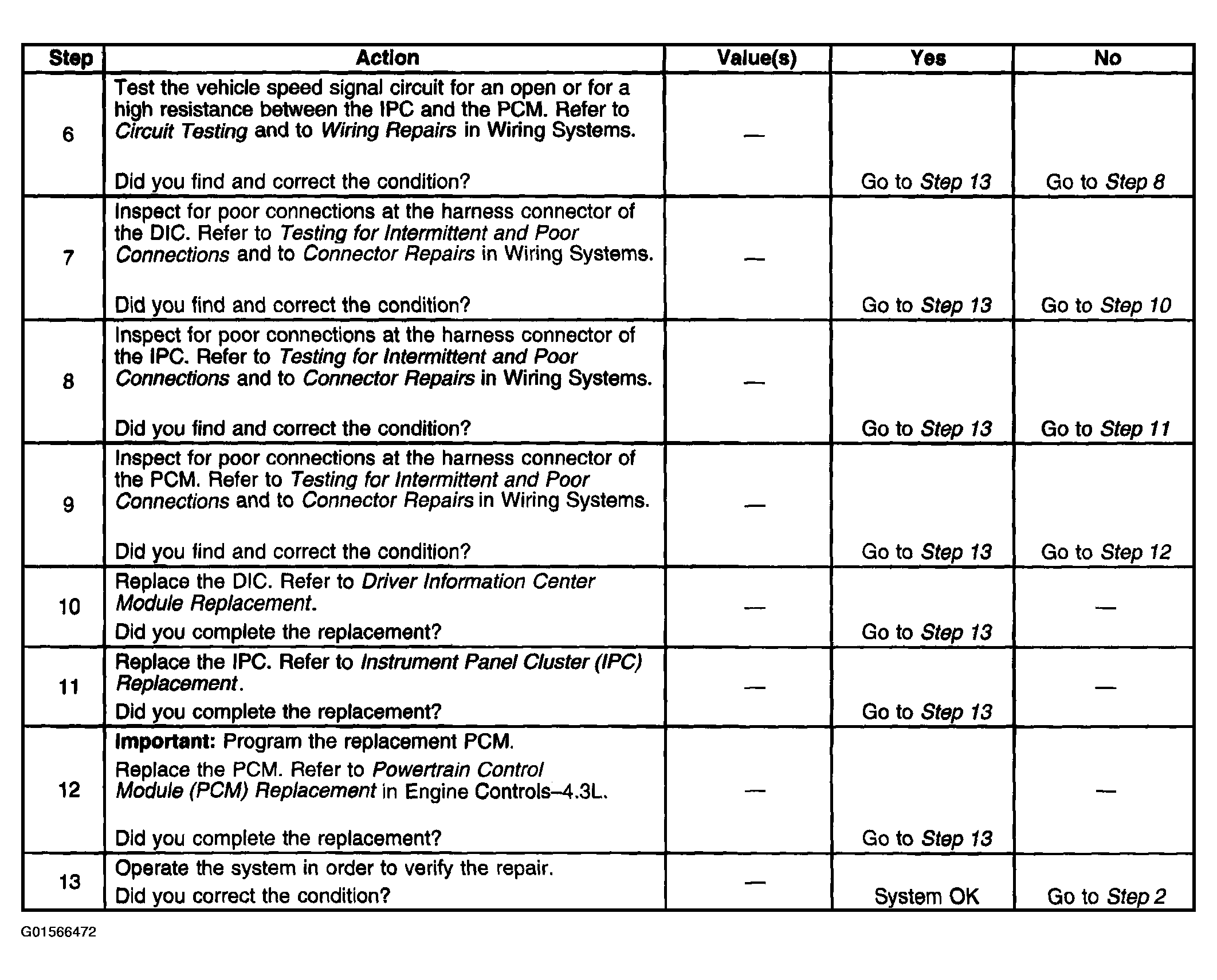

Fig 2: Speedometer And/Or Odometer Inaccurate Or Inoperative (2 Of 2)
G01566472Courtesy of GENERAL MOTORS CORP.
