Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  3. Remove the control rod (1) from the door lock.
  4. Remove the door handle nuts (2).

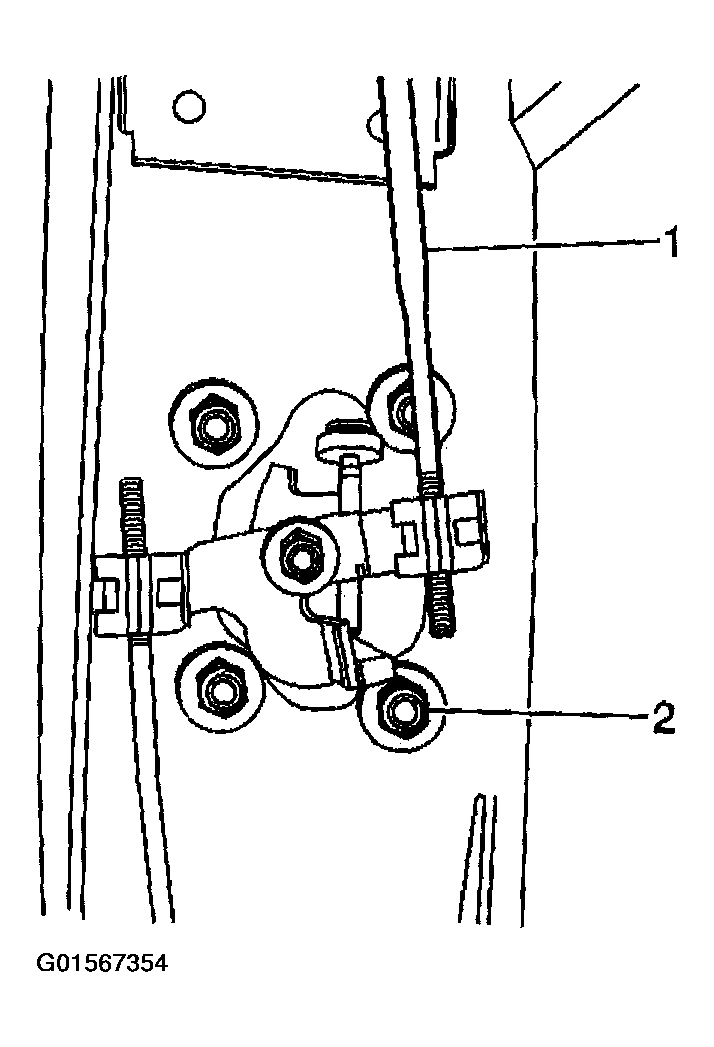

    Fig 1: Removing Door Lock Control Rod
    G01567354Courtesy of GENERAL MOTORS CORP.
  5. Remove the door handle from the door.

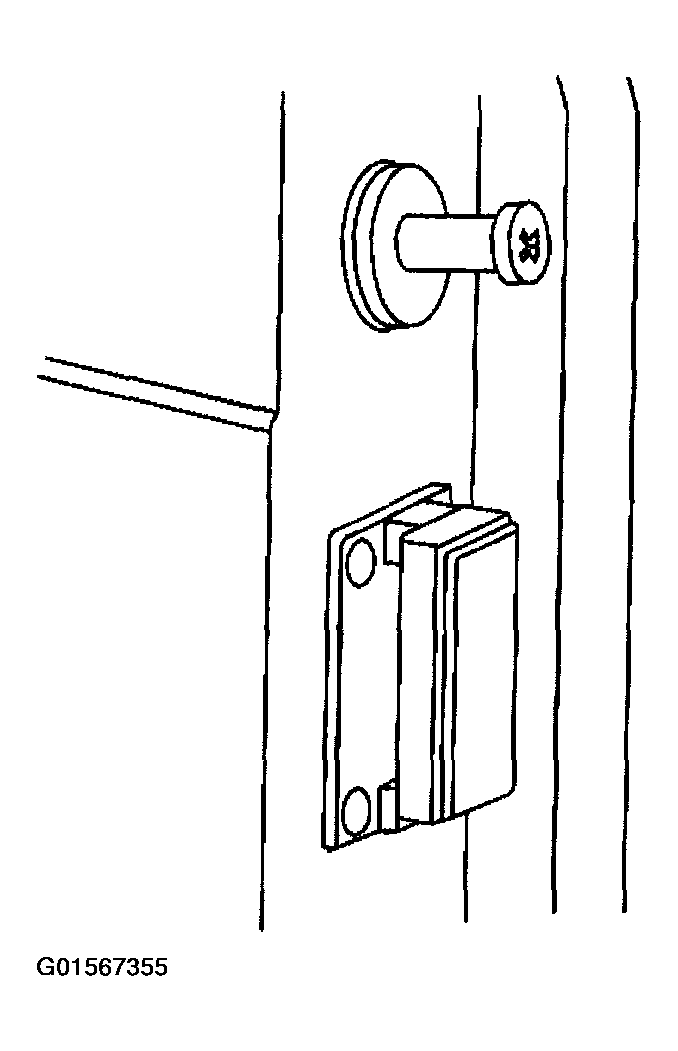

    Fig 2: Removing Door Handle
    G01567355Courtesy of GENERAL MOTORS CORP.
