Installation Procedure

  1. Install the seat back hinge to the seat cushion frame.
  2. Install the latch release cable to the seat back hinge.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the right and left bolts that retain the seat back hinge to the seat back frame and the seat cushion frame in the locations noted during disassembly.

    Tighten

    Tighten the right and left bolts retaining the seat back hinge to the seat back frame and the seat cushion frame to 30 N.m (22 lb ft).

  4. Install the right and left sides of the rear seat back hinge trim. Refer to SEAT BACK HINGE TRIM REPLACEMENT - REAR RIGHT (YC6)  and SEAT BACK HINGE TRIM REPLACEMENT - REAR LEFT  .

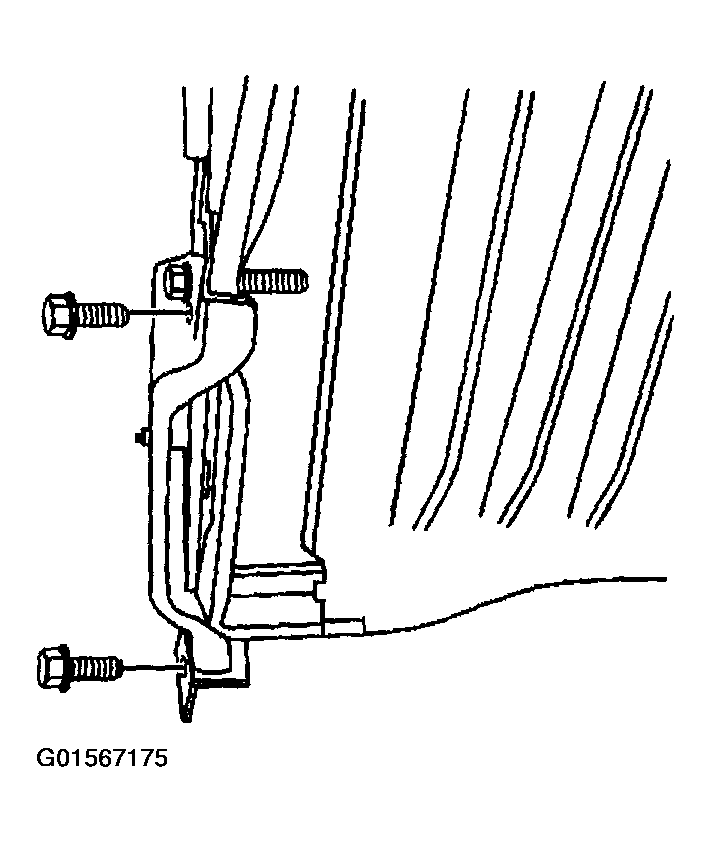

    Fig 1: Installing Right And Left Seat Back Frame Hinge Bolts - Rear (YC5 And YC6)
    G01567175Courtesy of GENERAL MOTORS CORP.
  5. Install the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH  .
