Driver Information System Schematics

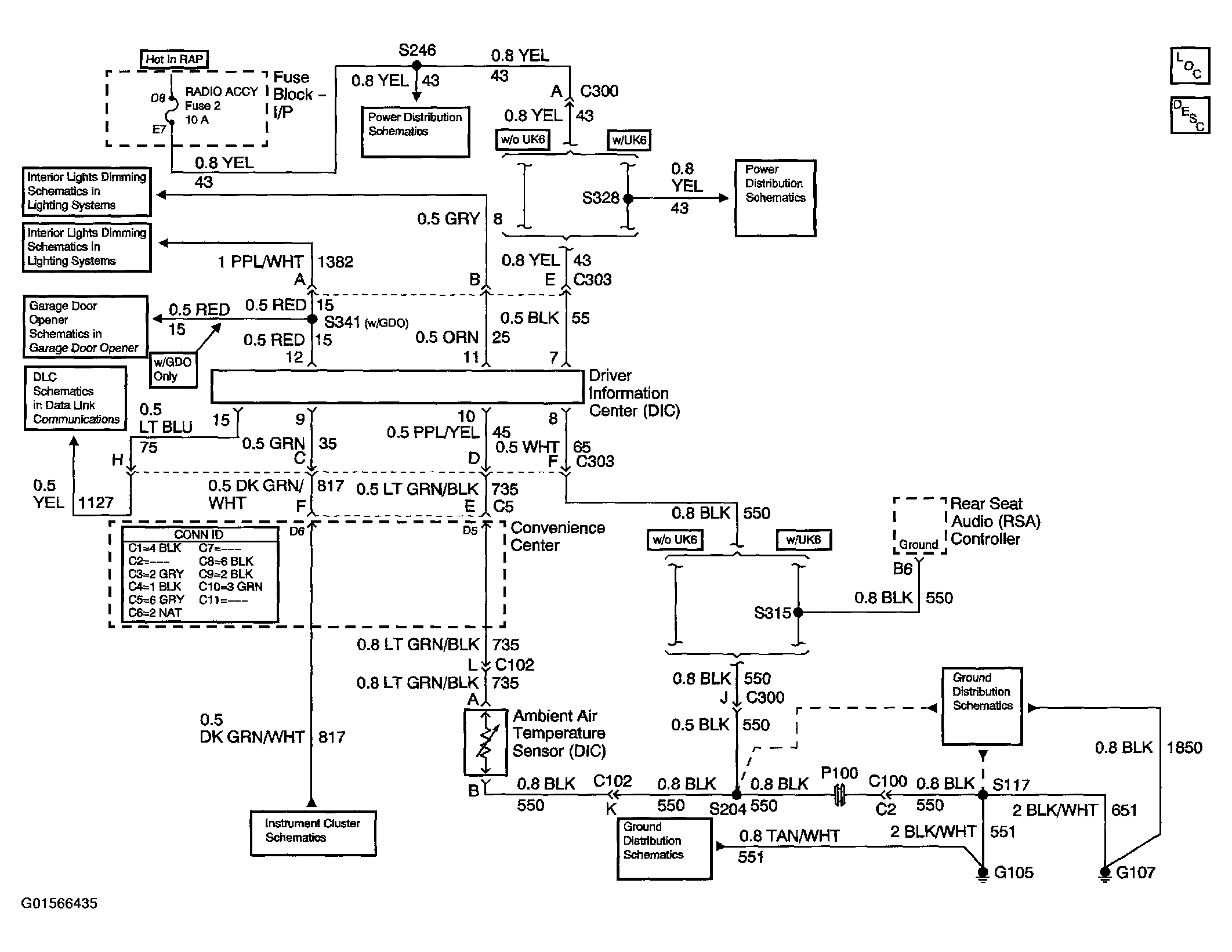

Fig 1: Driver Information System Schematics

G01566435

Courtesy of GENERAL MOTORS CORP.
