Installation Procedure

  1. Connect the electrical connectors.
  2. Install the extension to the instrument panel:
    1. 2.1. Align the retainers.
    2. 2.2. Press the extension into place until the retainers are seated.

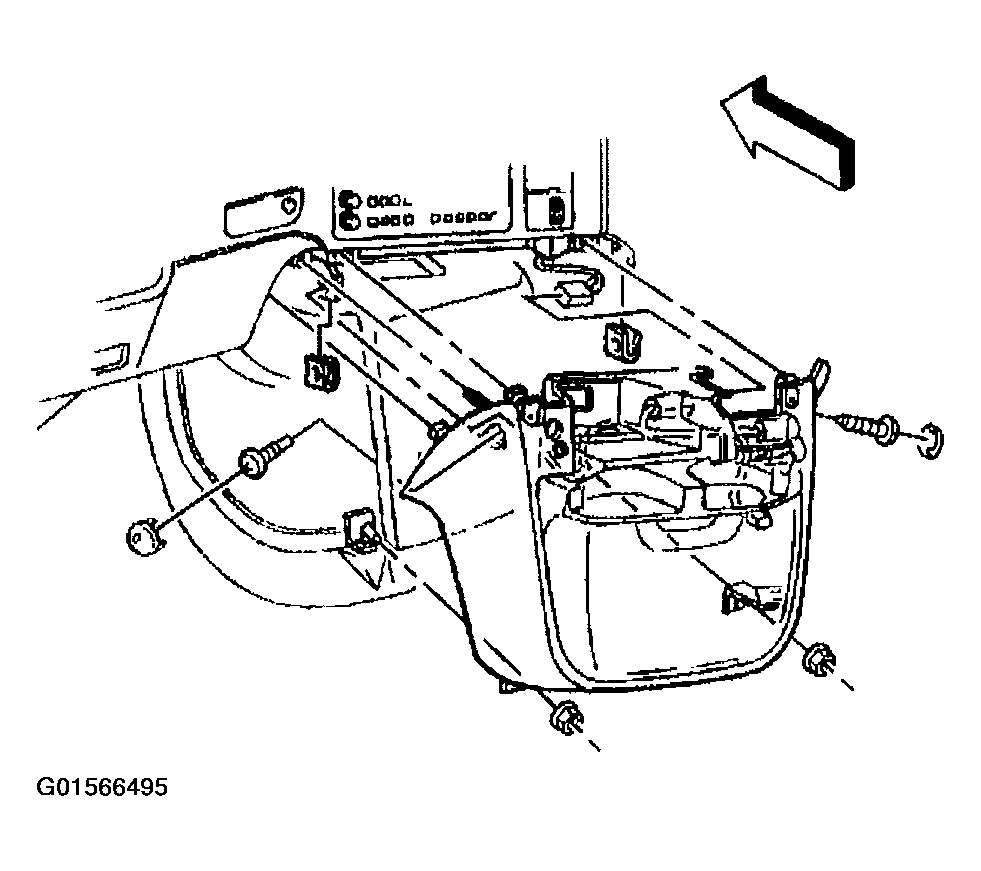

    Fig 1: Installing Screws & Nuts To Extension
    G01566495Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts that retain the extension to the floor.

    Tighten

    Tighten the nuts that retain the extension to the floor to 8 N.m (71 lb in).

  4. Install the retaining screws.

    Tighten

    Tighten the screws to 8 N.m (71 lb in).

  5. Install the extension screw covers.
