Exterior Lights Schematics (Domestic)

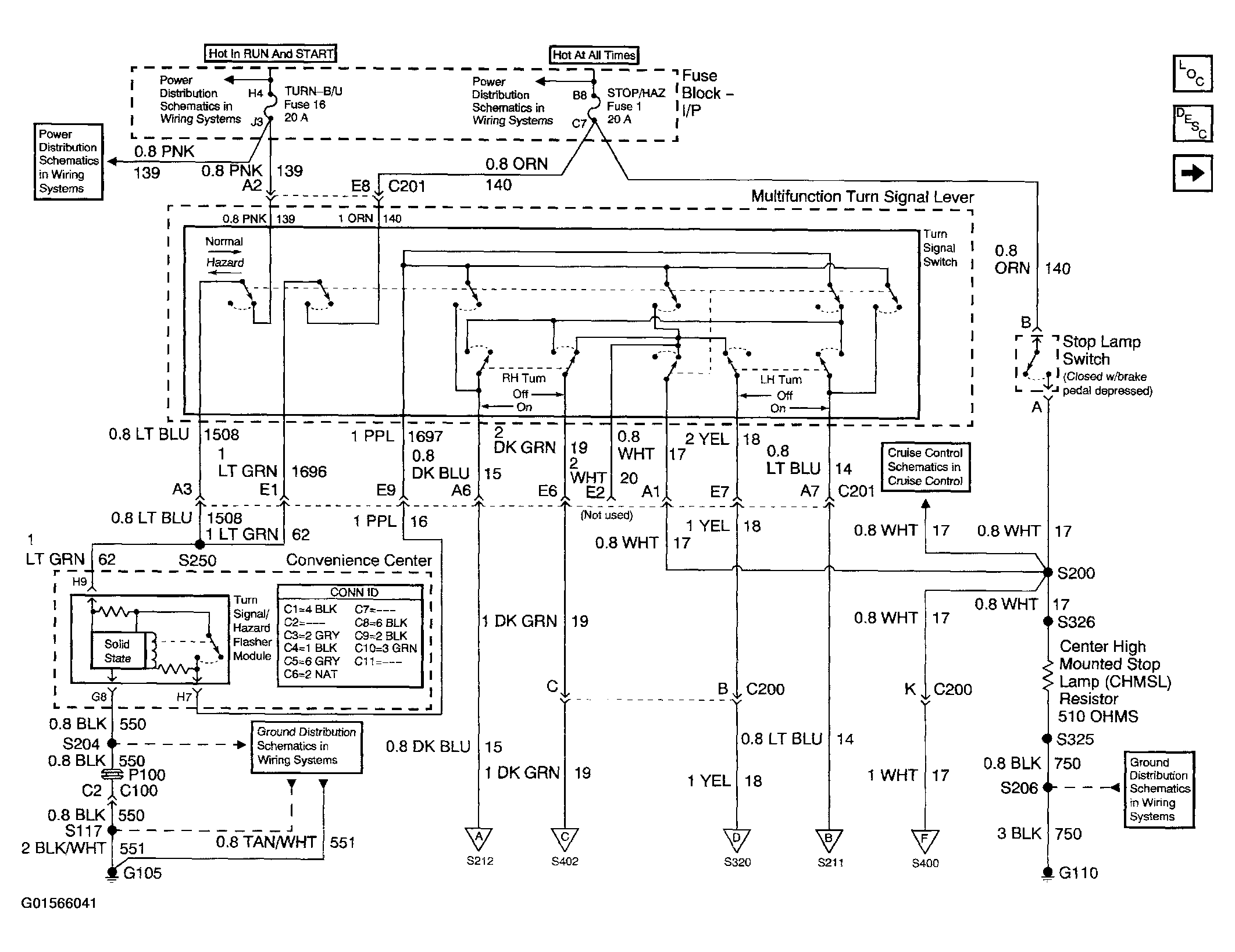

Fig 1: Turn Signal Switch, And Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.

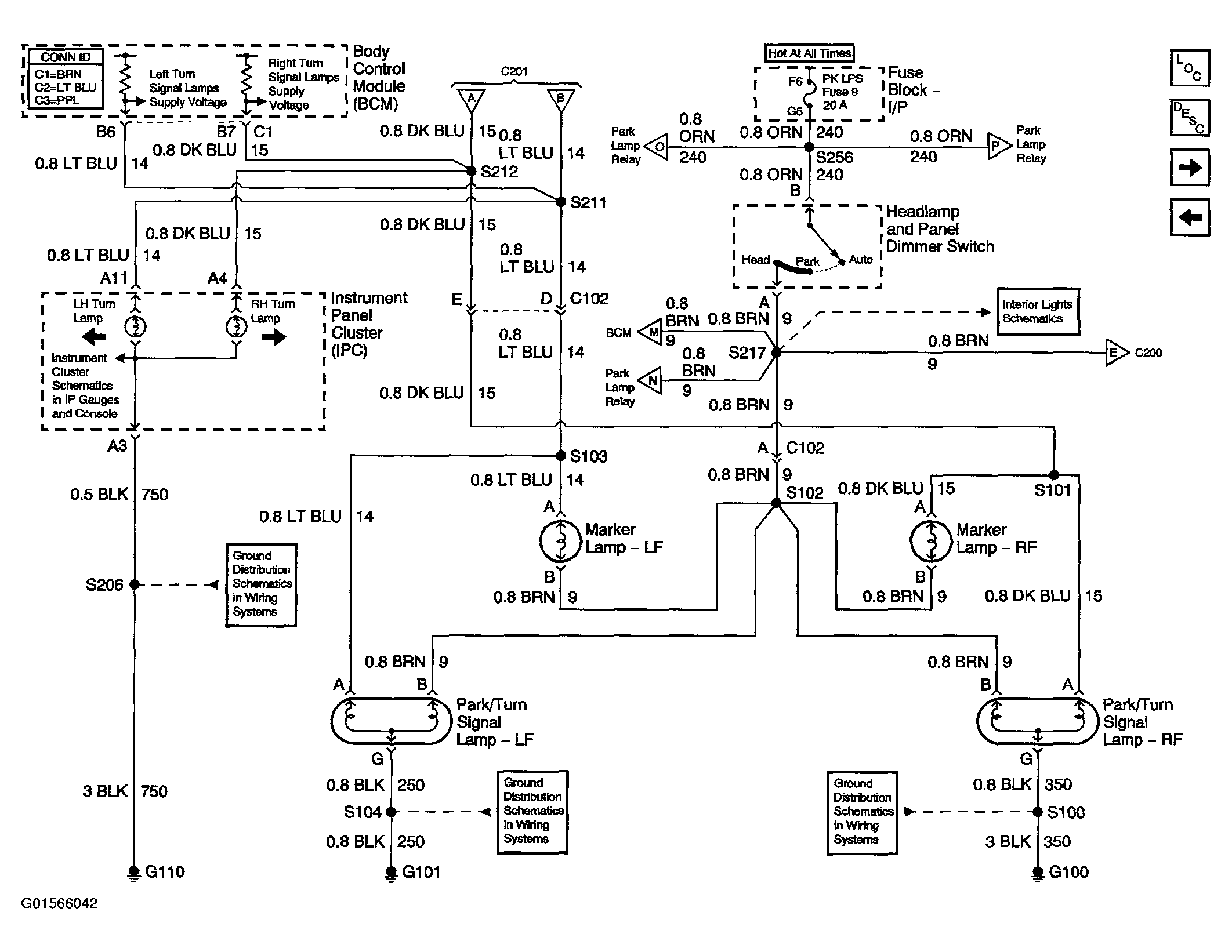

Fig 2: Turn Indicators, Front Marker Lamps, Front Park/Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.

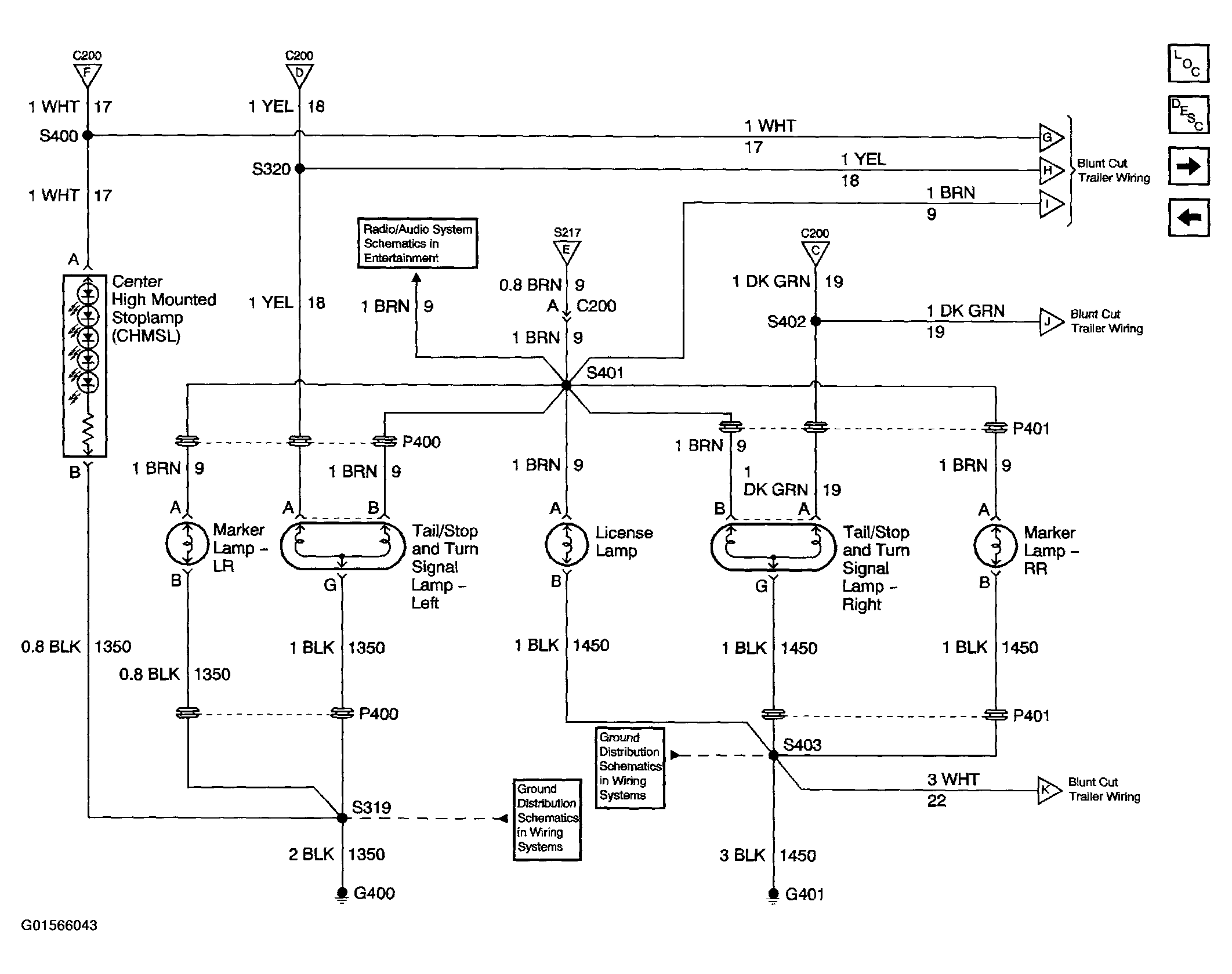

Fig 3: Rear Marker Lamps, Tail/Stop And Turn Signal Lamps, CHMSL, And License Lamp

Courtesy of GENERAL MOTORS CORP.

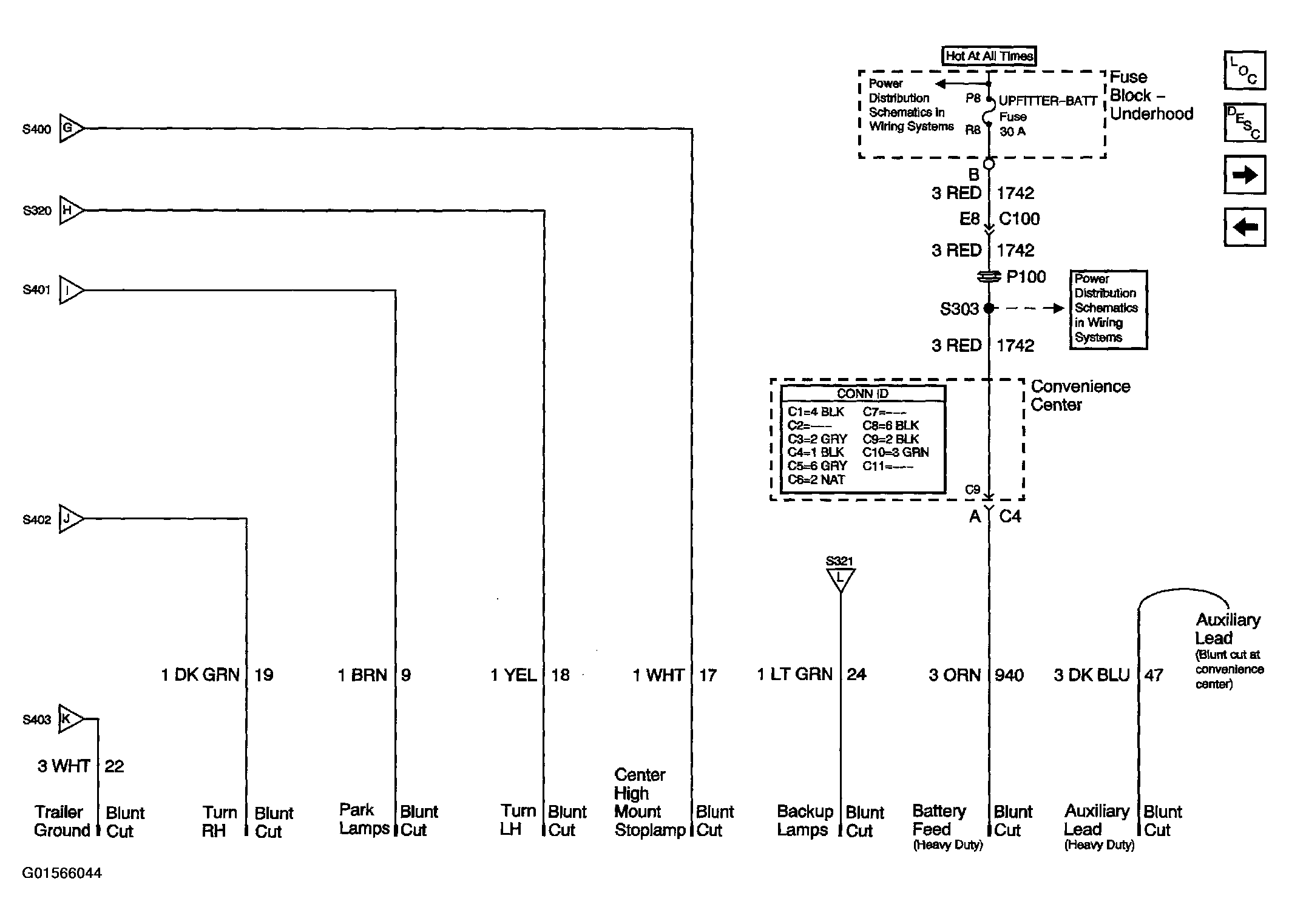

Fig 4: Trailer Wiring Harness Connections

Courtesy of GENERAL MOTORS CORP.

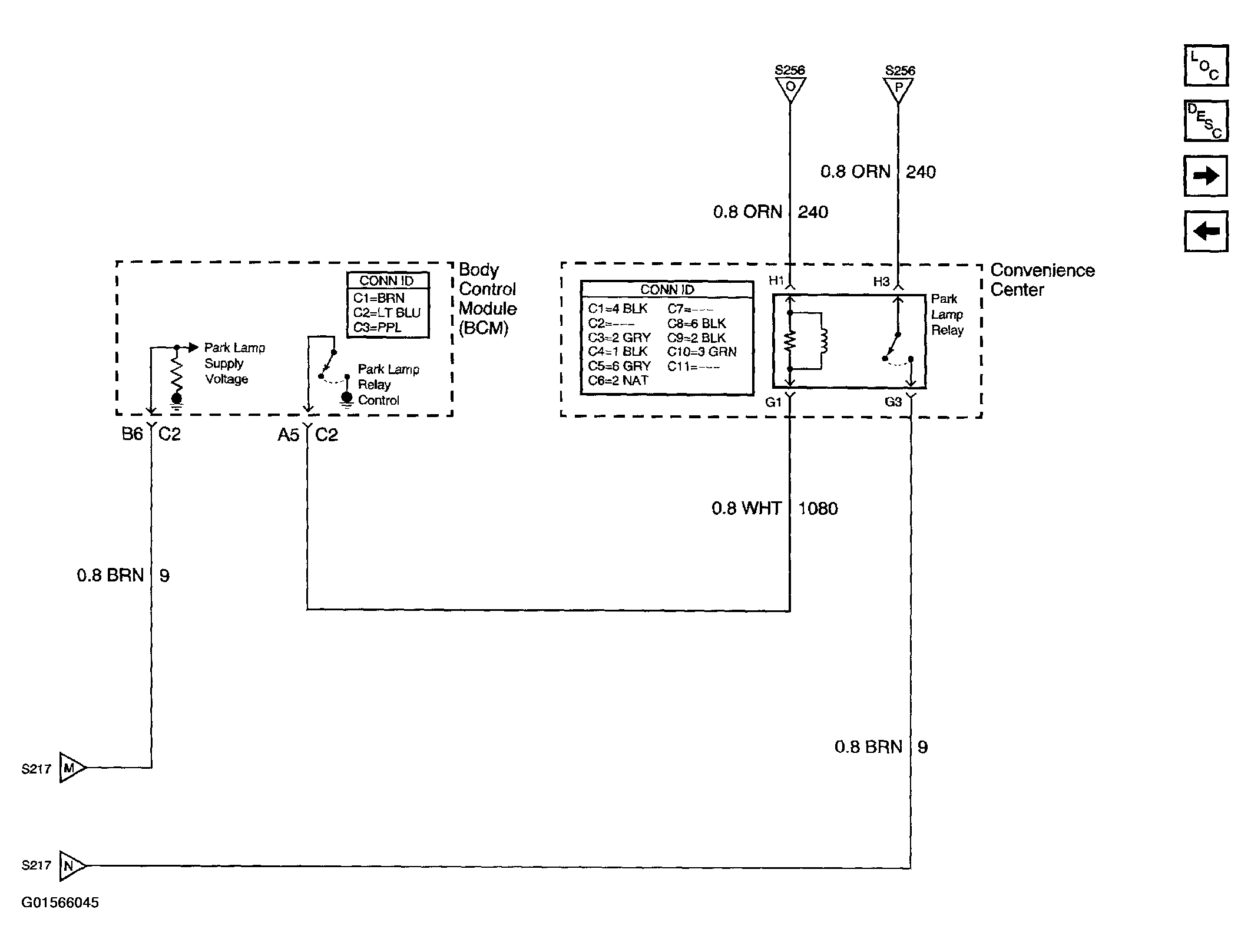

Fig 5: Park Lamp Relay

Courtesy of GENERAL MOTORS CORP.

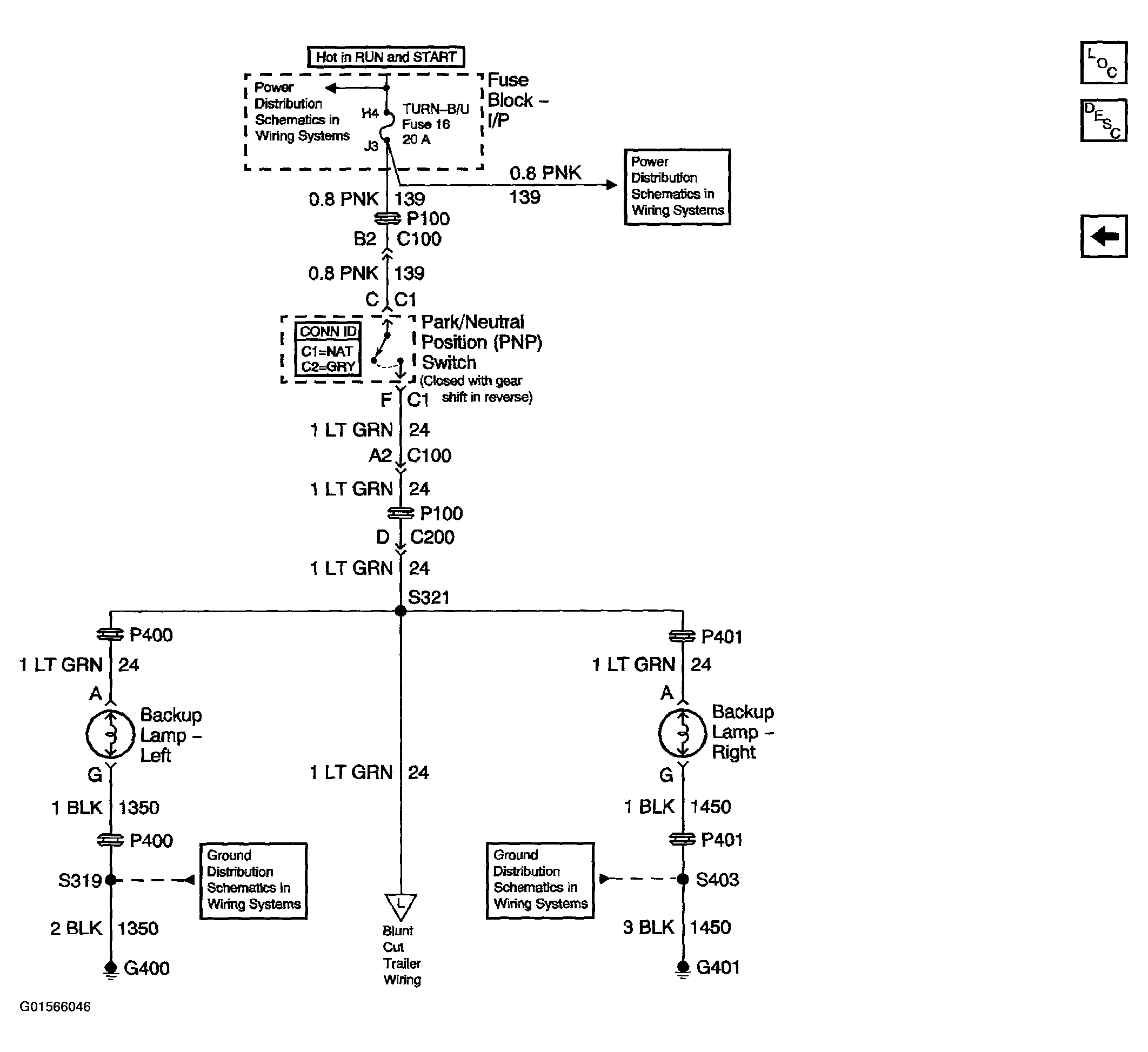

Fig 6: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
