Radio Display Inoperative, No Sound from Speakers

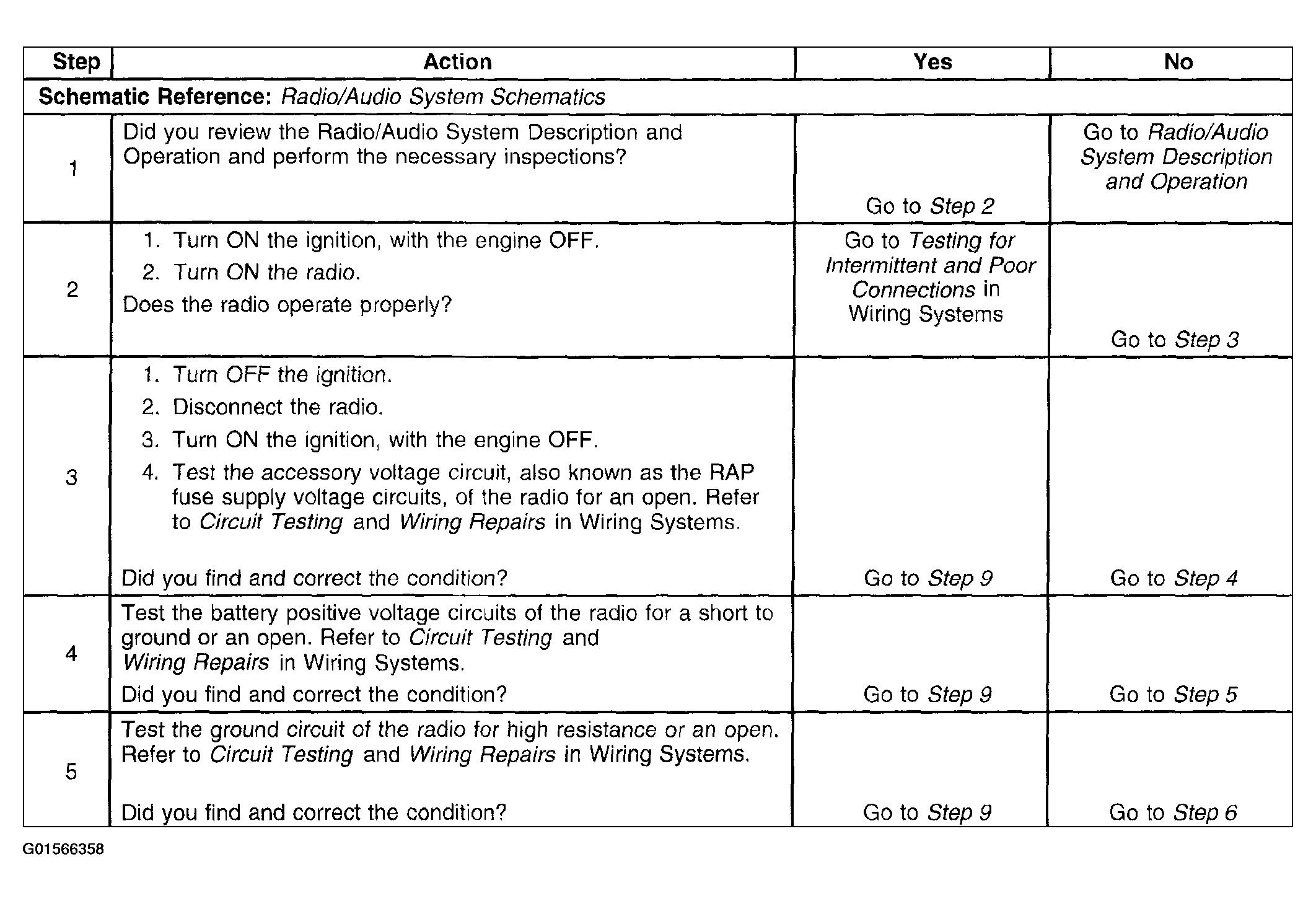

Fig 1: Radio Display Inoperative, No Sound From Speakers Troubleshooting Table (1 Of 2)
G01566358Courtesy of GENERAL MOTORS CORP.

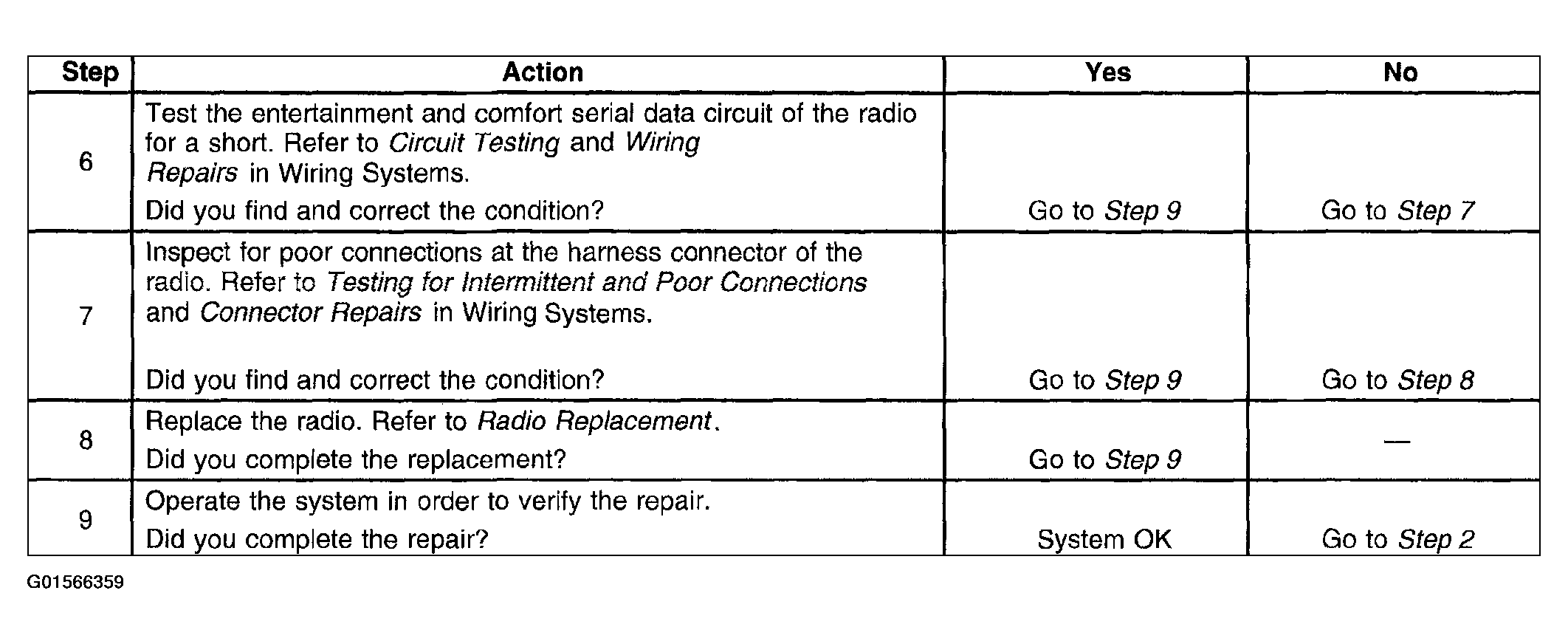

Fig 2: Radio Display Inoperative, No Sound From Speakers Troubleshooting Table (2 Of 2)
G01566359Courtesy of GENERAL MOTORS CORP.
