Home >> GMC >> 2003 >> Jimmy 2D Utility, Automatic, Standard >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Rear Drive Axle - Locking/Limited Axle >> Diagnostic Information and Procedures >> Noise in Addition to Normal Clutch Engagement

Noise in Addition to Normal Clutch Engagement

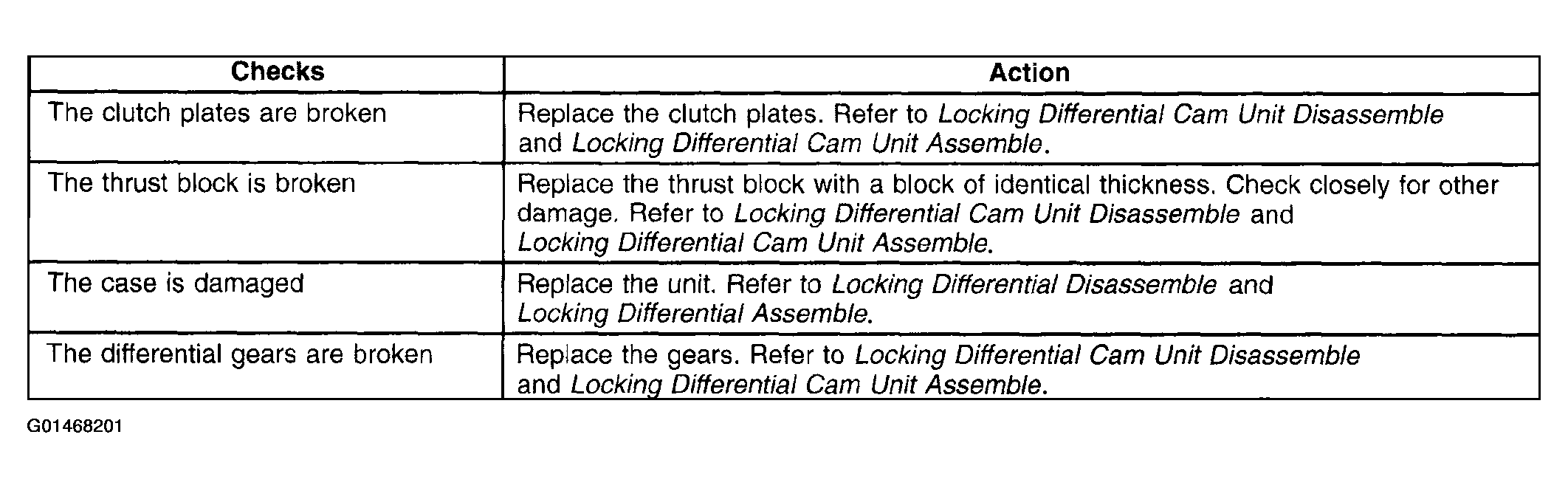

Fig 1: Diagnostic System Check (Noise in Addition to Normal Clutch Engagement)

G01468201

Courtesy of GENERAL MOTORS CORP.
