Locking Rear Axle Locks in Turns

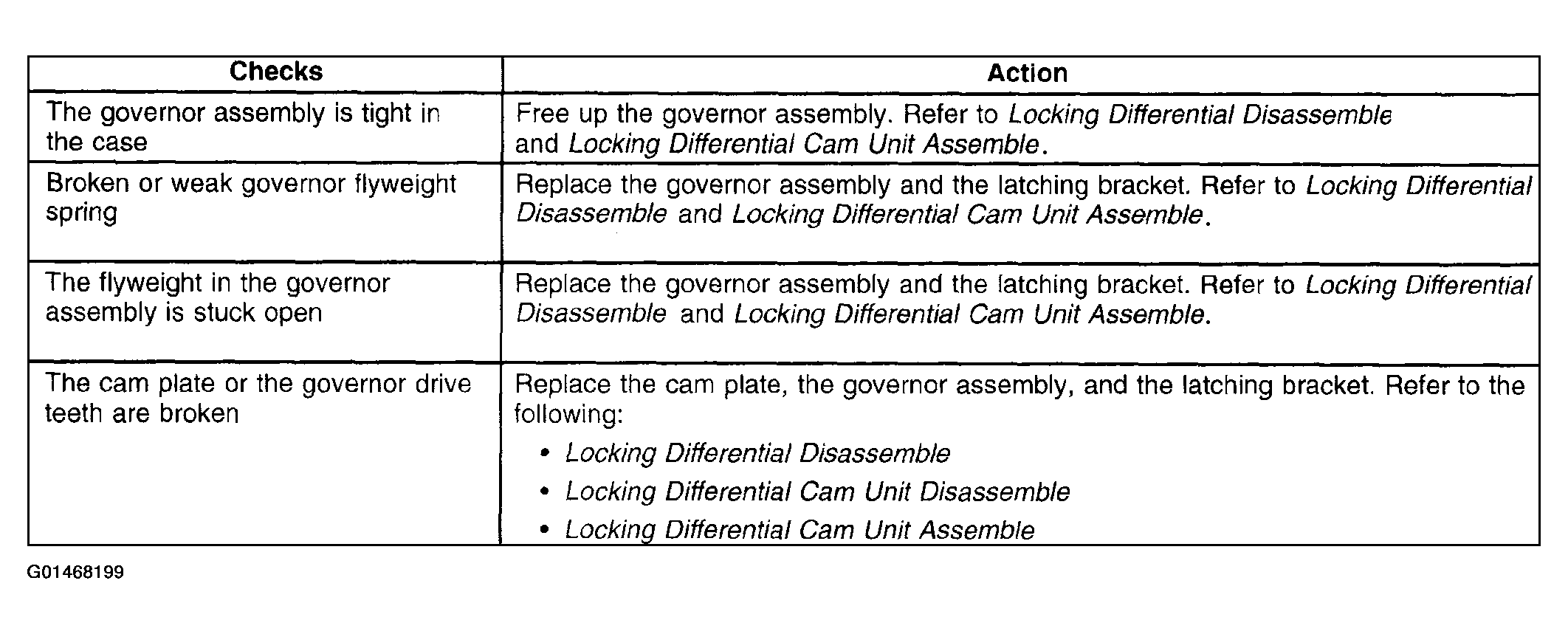

Fig 1: Diagnostic System Check (Locking Rear Axle Locks in Turns)
G01468199Courtesy of GENERAL MOTORS CORP.
