Removal Procedure

  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .
  2. Remove the screws from the instrument panel cluster.
  3. Disconnect the electrical connector from the instrument panel cluster.
  4. Remove the instrument panel cluster from the instrument panel.

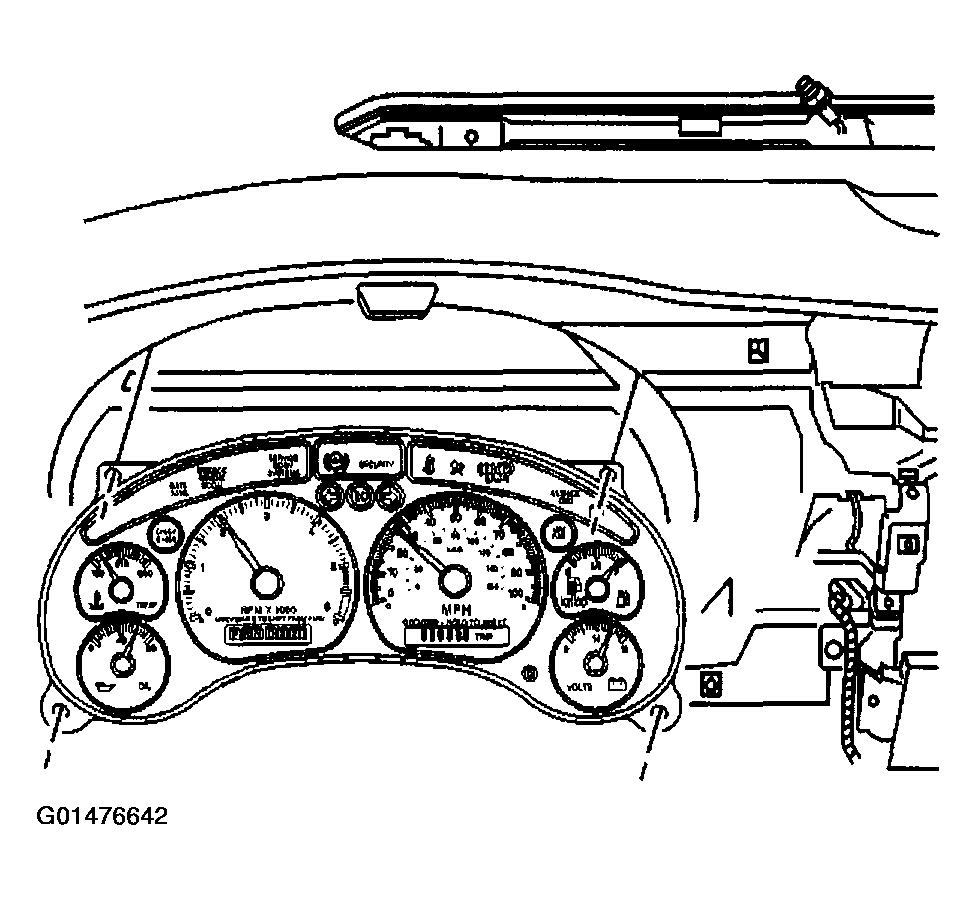

    Fig 1: Removing Instrument Panel Cluster From Instrument Panel
    G01476642Courtesy of GENERAL MOTORS CORP.
