Installation Procedure

  1. Install the instrument panel cluster to the instrument panel.
  2. Connect the electrical connector to the instrument panel cluster.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to instrument panel cluster.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  4. Install the instrument panel accessory trim plate.

    Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .

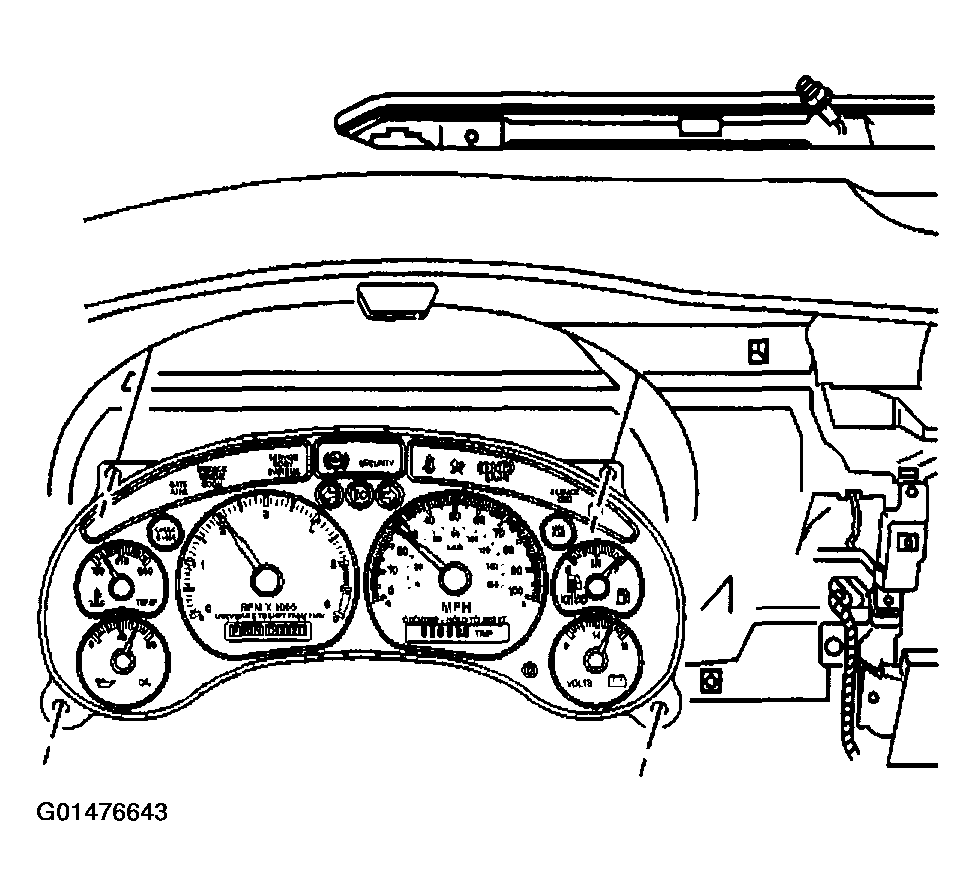

    Fig 1: Installing Instrument Panel Cluster To Instrument Panel
    G01476643Courtesy of GENERAL MOTORS CORP.
