Installation Procedure

  1. Install the lens to the cluster housing by snapping it into place.
  2. Install the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

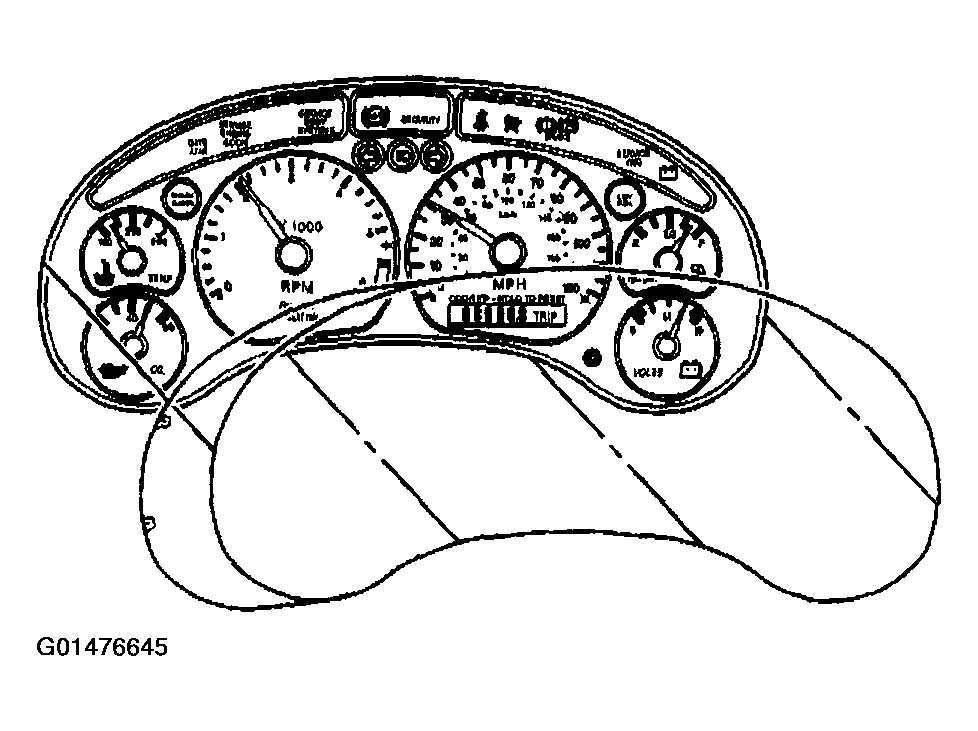

    Fig 1: Installing Lens To Cluster Housing
    G01476645Courtesy of GENERAL MOTORS CORP.
