Removal Procedure

Pull up on the lower edges of the cup holder in order to release the retaining clips and remove the cup holder from the vehicle.

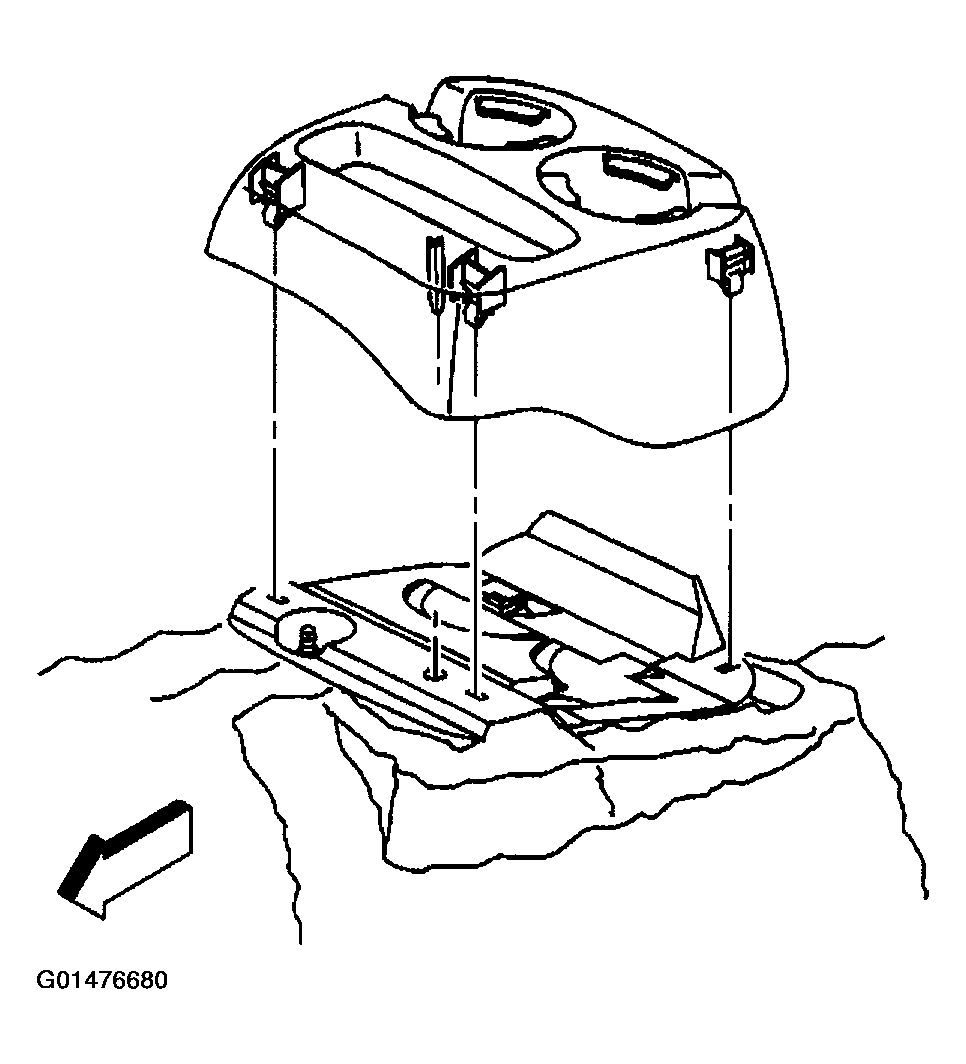

Fig 1: Removing Cup Holder From Vehicle
G01476680Courtesy of GENERAL MOTORS CORP.
