Installation Procedure

  1. Install the console to the vehicle.
  2. Connect the electrical connector, if equipped.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts that retain the console to the vehicle.

    Tighten

    Tighten the nuts to 10 N.m (88 Ib. in).

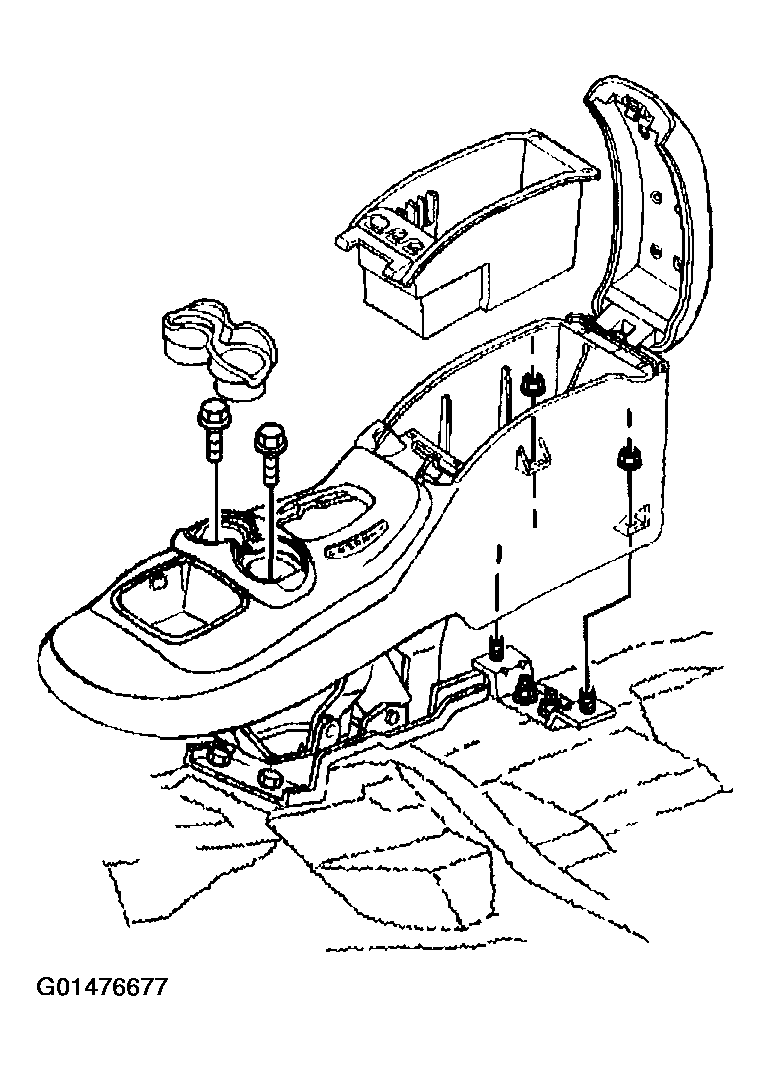

    Fig 1: Installing Console To Vehicle Retaining Nut
    G01476677Courtesy of GENERAL MOTORS CORP.
  4. Install the storage compartment to the vehicle.

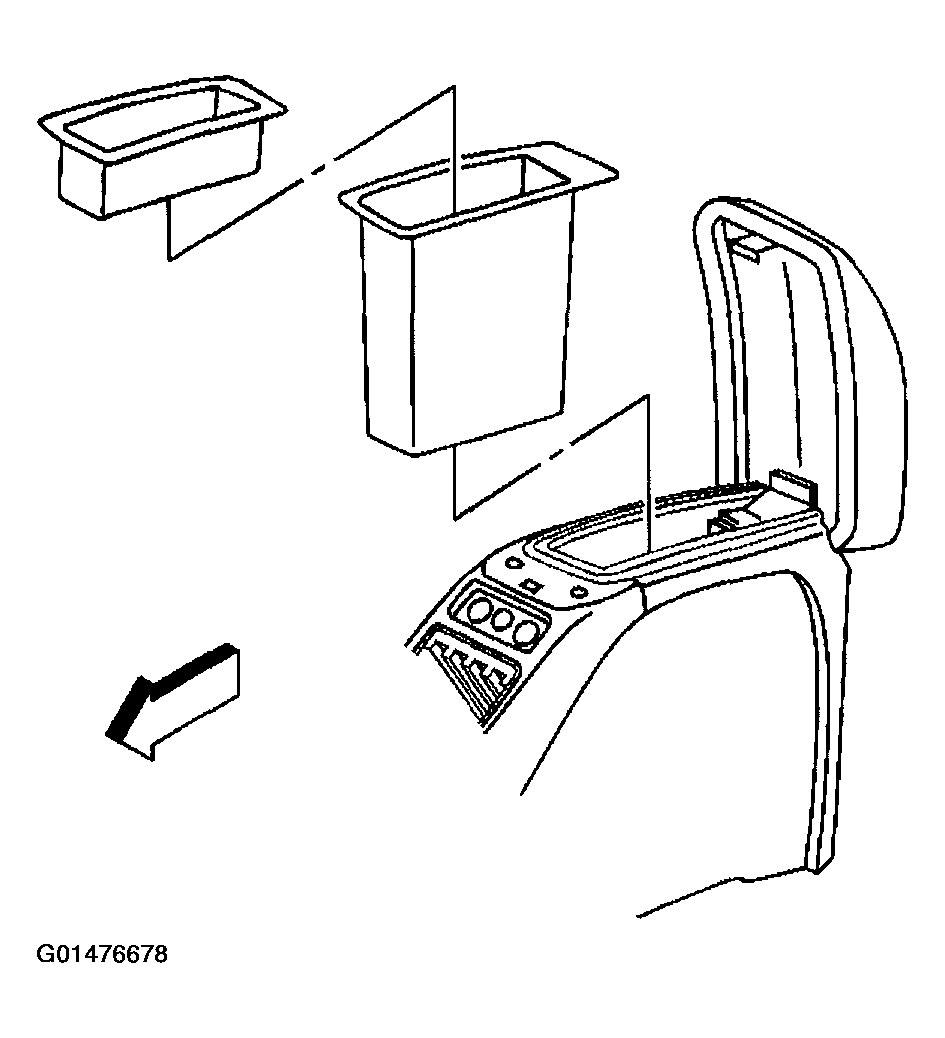

    Fig 2: Installing Storage Compartment To Vehicle
    G01476678Courtesy of GENERAL MOTORS CORP.
  5. Install the trim plate to the console.
  6. Install the screws that retain the trim plate to the console.

    Tighten

    Tighten the nuts to 1.9 N.m (17 Ib. in).

  7. Install the cup holder insert.
  8. Install the shift control lever. Refer to CONTROL LEVER AND/OR BOOT REPLACEMENT in Manual Transmission - NV 1500 or to CONTROL LEVER AND/OR BOOT REPLACEMENT in Manual Transmission - NV 3500.

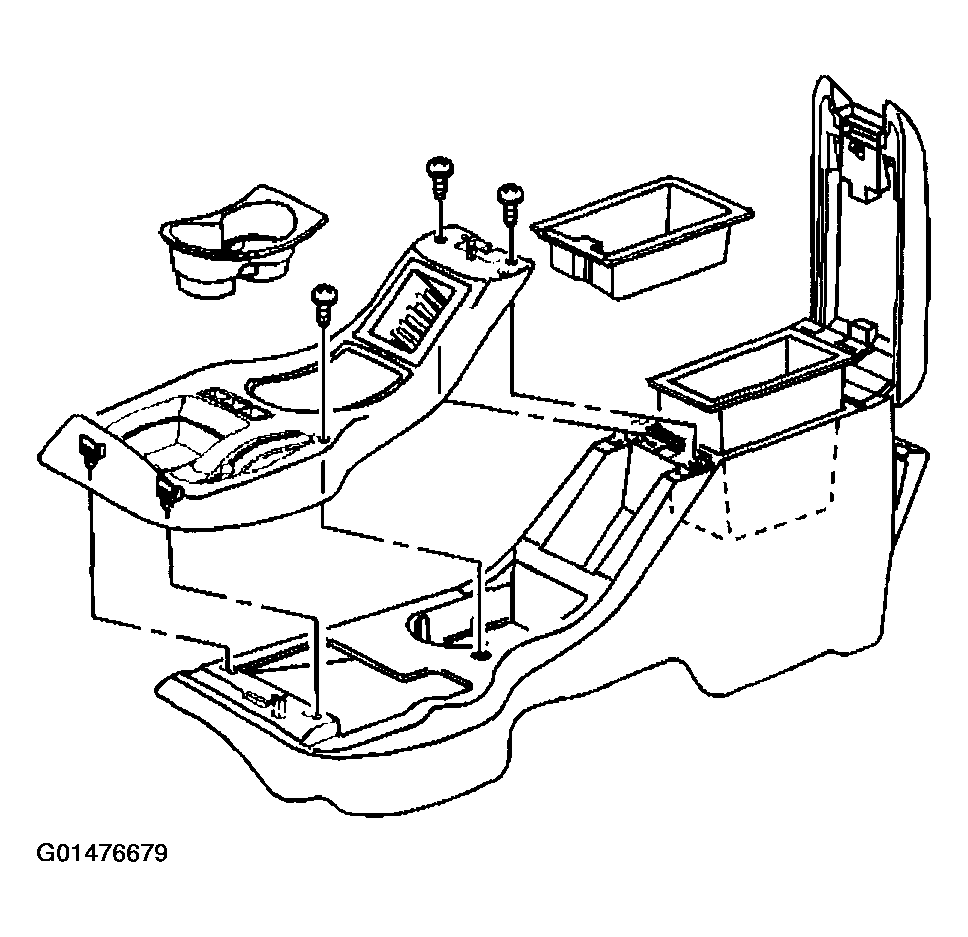

    Fig 3: Installing Trim Plate To Console Retaining Screws
    G01476679Courtesy of GENERAL MOTORS CORP.
