Removal Procedure

  1. Remove the front ashtray from console by gently prying out the ashtray with a flat-bladed tool.
  2. Carefully lift up on the wood shifter assembly close-out in order to remove the assembly from the console. The closeout panel will need to be rotated to fit over the shift handle.
  3. Remove the passenger side toe-panel by gently prying out the panel using a flat-bladed tool.
  4. Disconnect the instrument panel to console wiring harness connection.

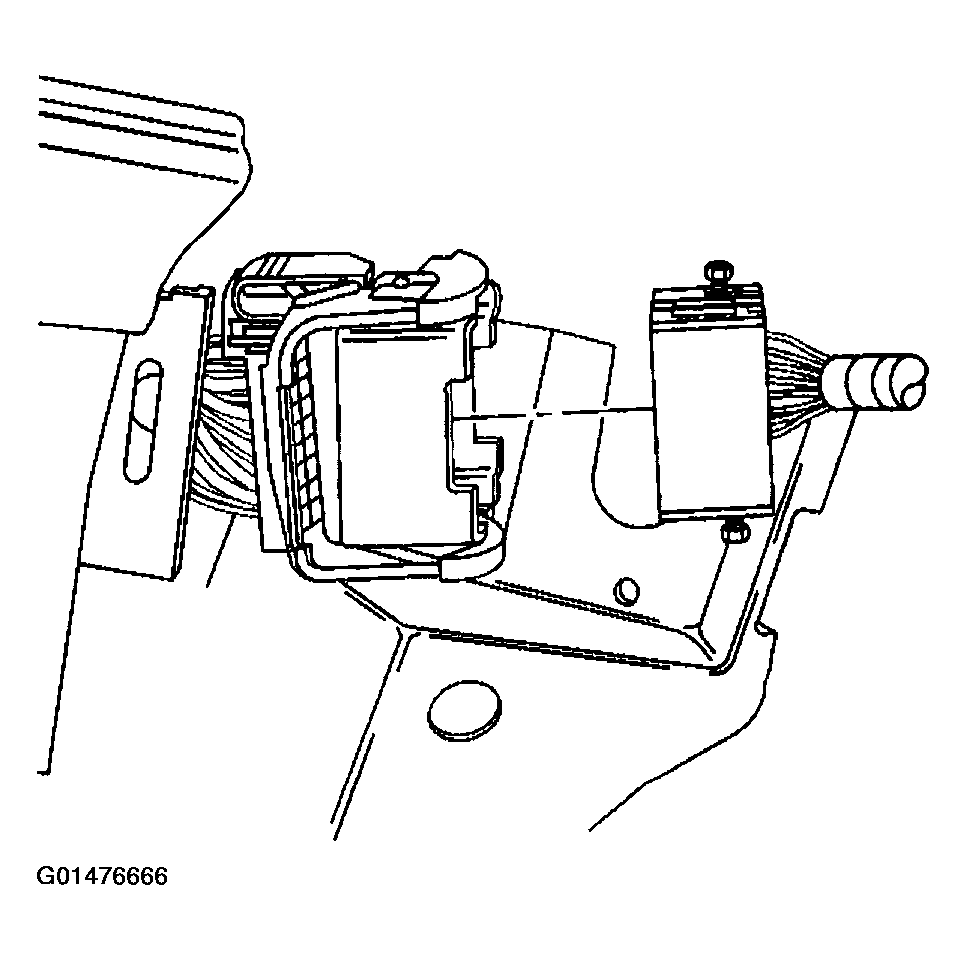

    Fig 1: Disconnecting Instrument Panel To Console Wiring Harness Connection
    G01476666Courtesy of GENERAL MOTORS CORP.
  5. Open the armrest in order to expose and remove the convenience tray from storage compartment.

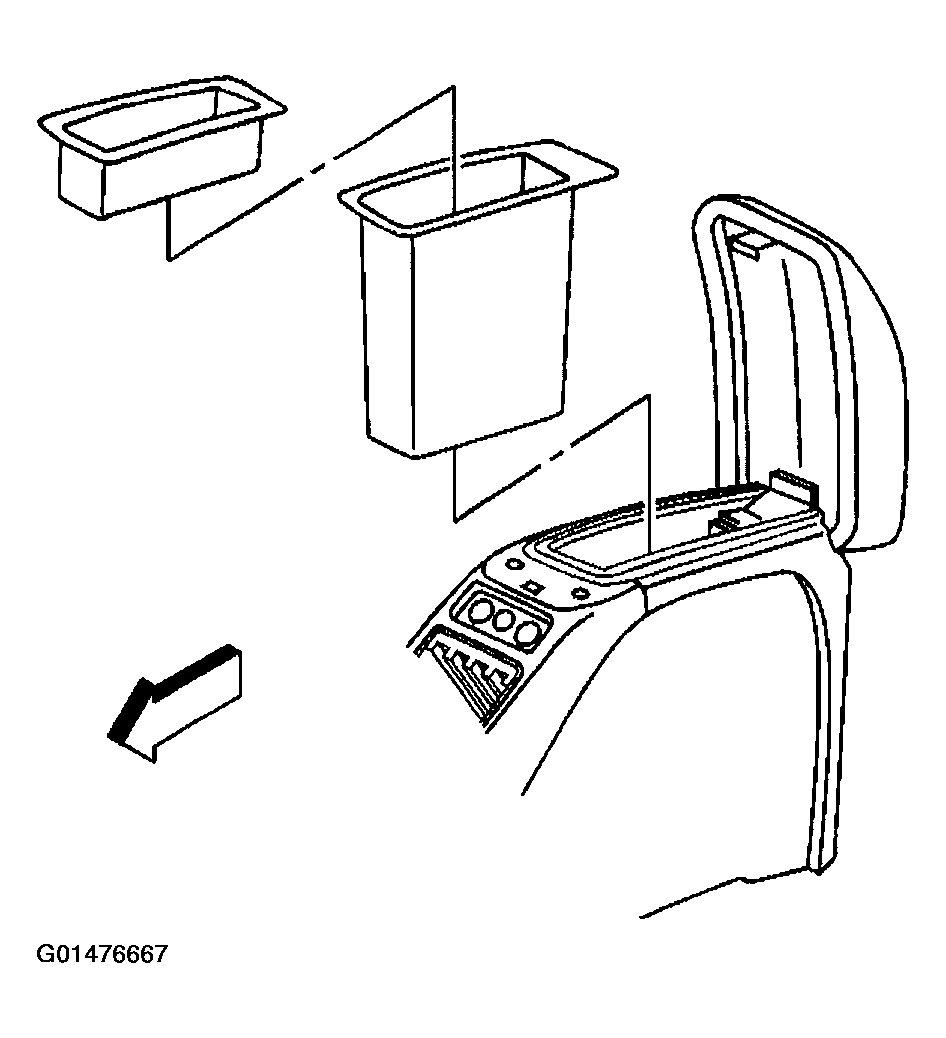

    Fig 2: Removing Convenience Tray From Storage Compartment
    G01476667Courtesy of GENERAL MOTORS CORP.
  6. Remove the fasteners (2) that retain the console (1) to the shifter assembly and the vehicle floor.
  7. Remove the console from the vehicle by lifting the console over the floor studs.
  8. If replacing the center console, remove the compact disc player from the console. Refer to REMOTE CD PLAYER REPLACEMENT in Entertainment.
  9. If replacing the center console, remove the amplifier from the console. Refer to AMPLIFIER REPLACEMENT in Entertainment.
  10. If replacing the center console, remove the rear seat audio control from the console. Refer to AUDIO CONTROL REPLACEMENT -- REAR SEAT in Entertainment.
  11. If replacing the center console, remove and retain the console wiring harness for use on the new console.

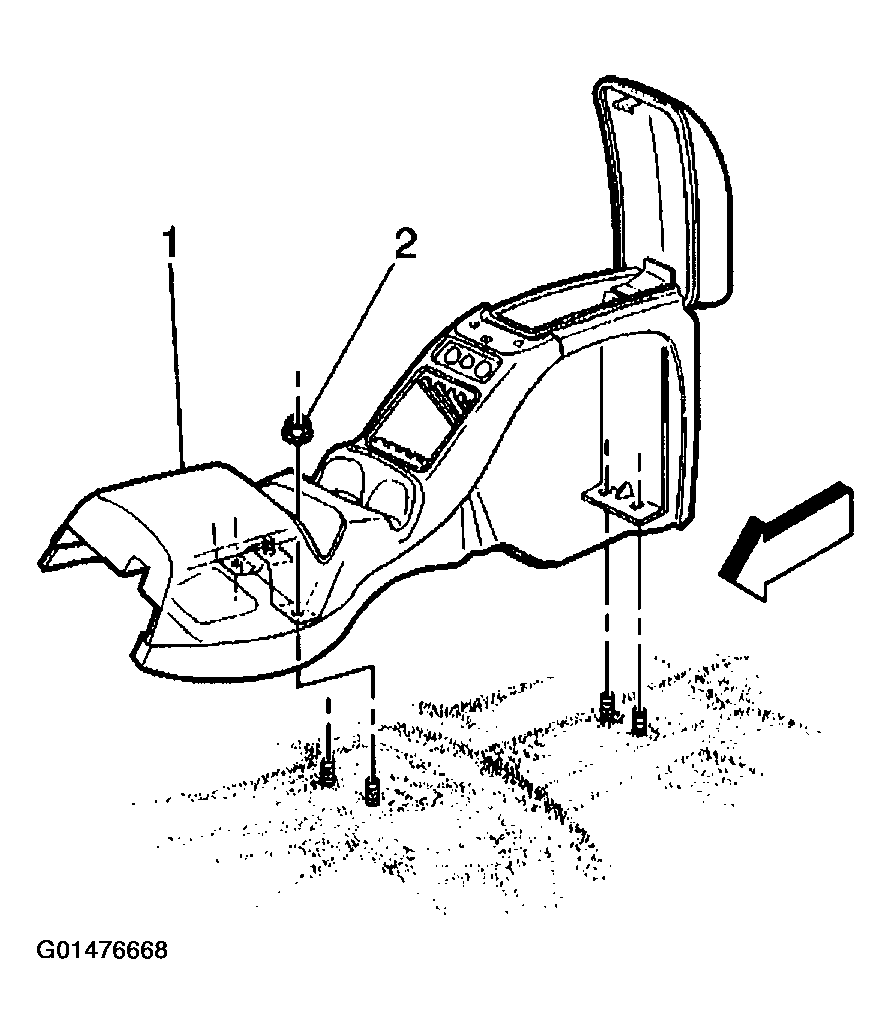

    Fig 3: Removing Console To Vehicle Floor Retaining Screws
    G01476668Courtesy of GENERAL MOTORS CORP.
