Removal Procedure

  1. Remove the shift handle retaining clip at the front of the handle.
  2. Remove the shift handle from the shift lever.
    Fig 1: Removing Shift Handle From Shift Lever
    G01476658Courtesy of GENERAL MOTORS CORP.
  3. Open the console lid.
  4. Remove the console compartment inserts.

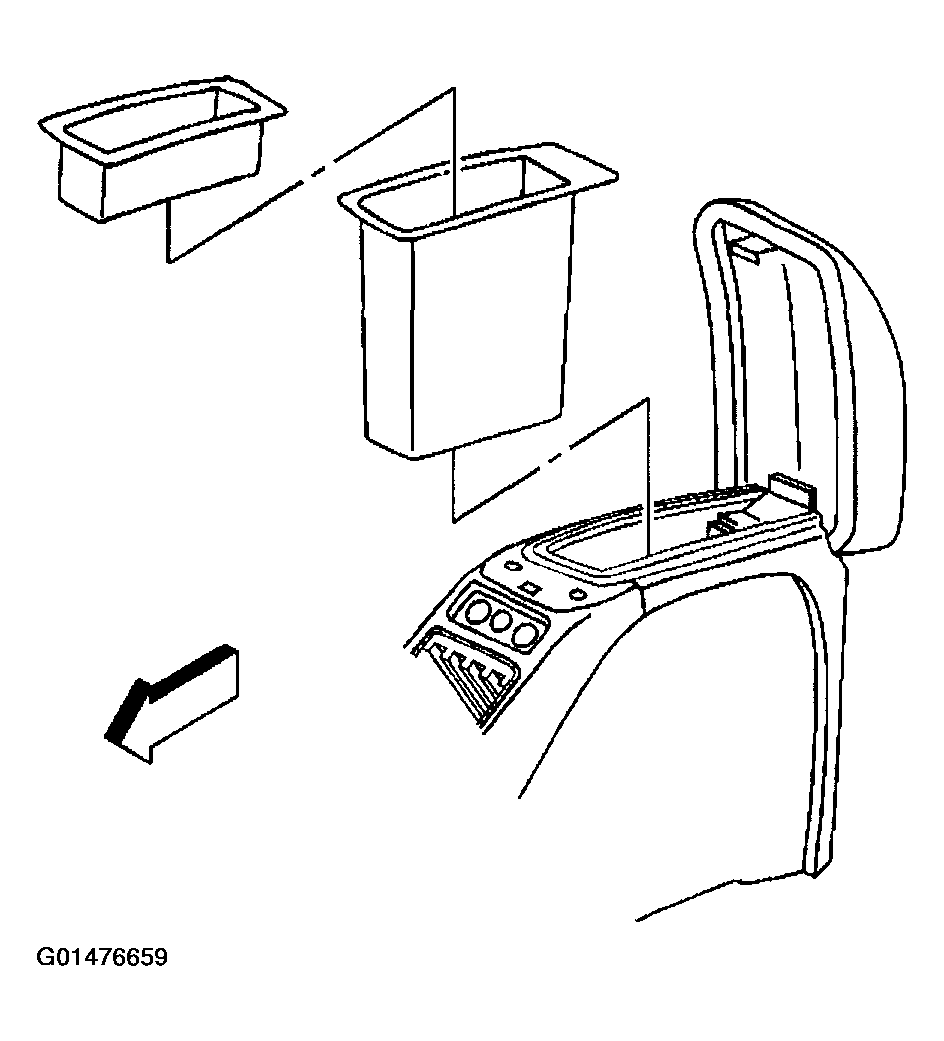

    Fig 2: Console Compartment Inserts
    G01476659Courtesy of GENERAL MOTORS CORP.
  5. Remove the transmission select switch (if equipped).

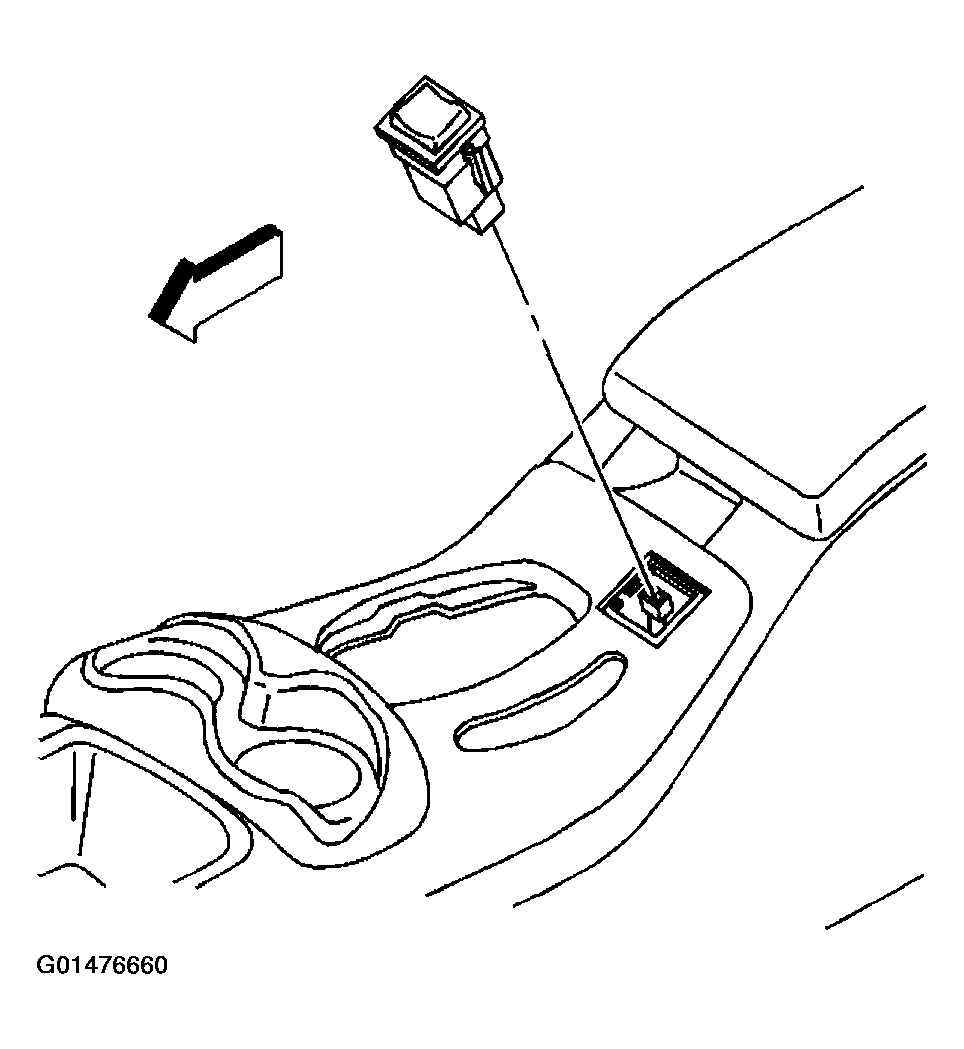

    Fig 3: Transmission Select Switch
    G01476660Courtesy of GENERAL MOTORS CORP.
  6. Remove the nuts that retain the rear of the console.
  7. Remove the cup holder insert.
  8. Remove the screws that retain the front of the console to the vehicle.
  9. Remove the console from the vehicle.

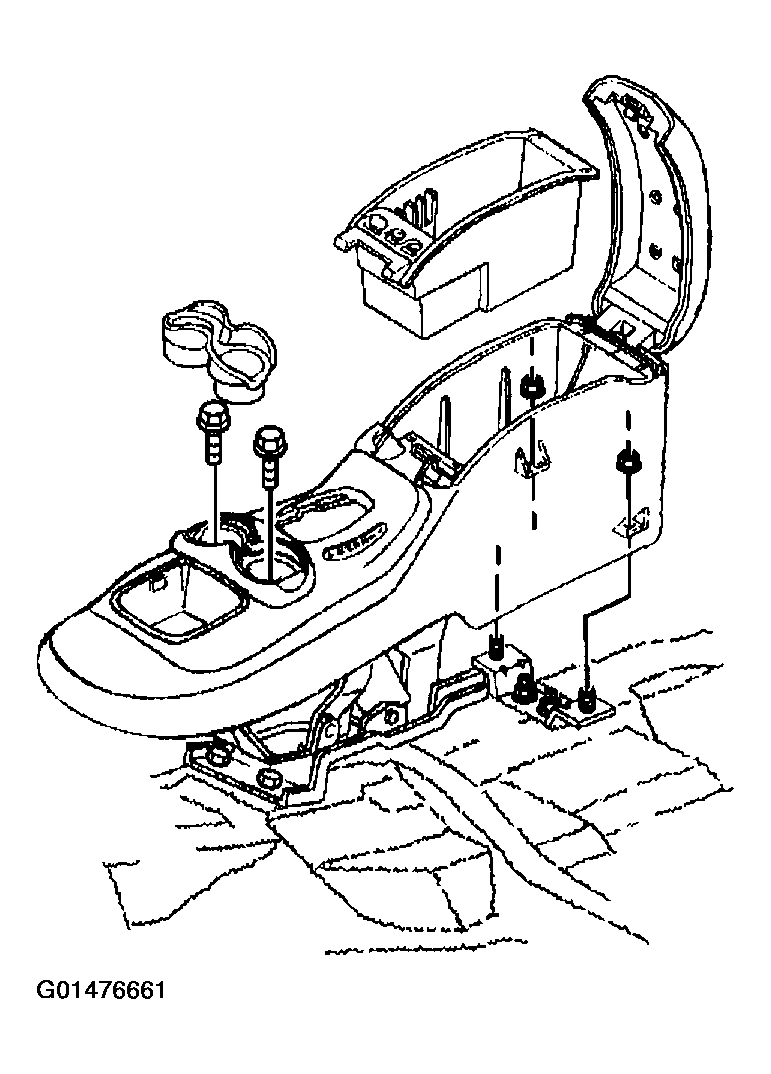

    Fig 4: Removing Front Of Console To Vehicle Retaining Screws
    G01476661Courtesy of GENERAL MOTORS CORP.
