Installation Procedure

  1. Install the console to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the front of the console.

    Tighten

    Tighten the screws to 7 N.m (63 Ib. in).

  3. Install the cup holder insert.
  4. Install the nuts that retain the rear of the console.

    Tighten

    Tighten the nuts to 10 N.m (89 Ib. in).

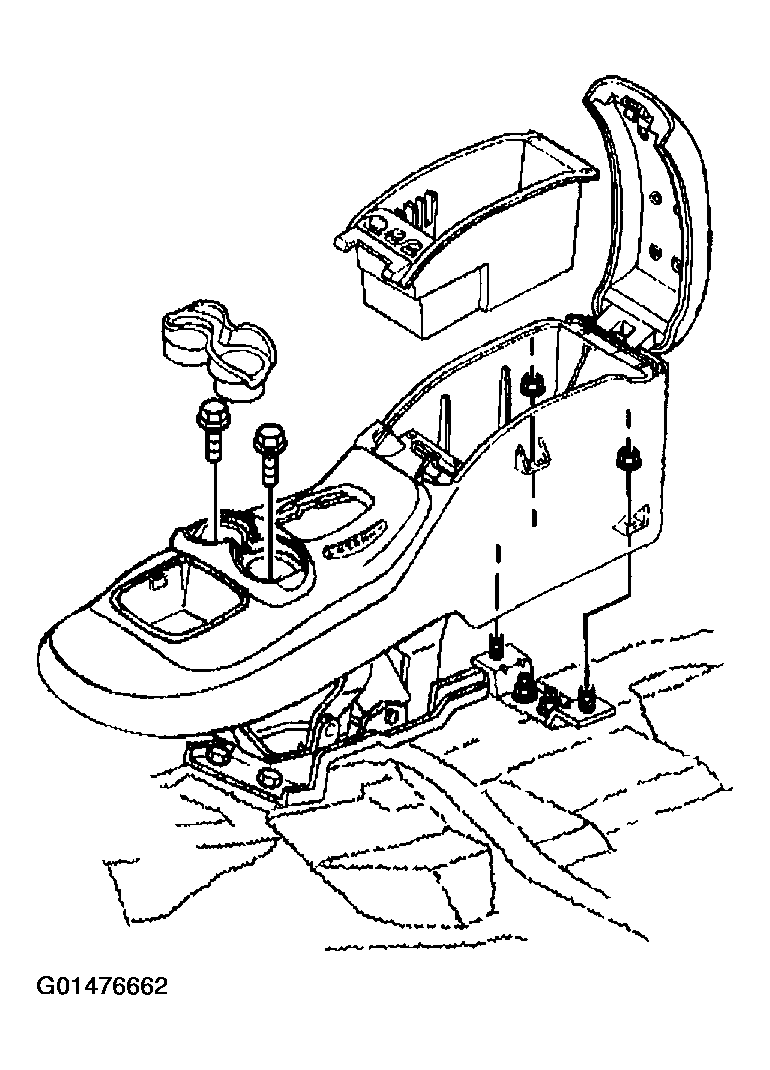

    Fig 1: Installing Front Of Console Retaining Screws
    G01476662Courtesy of GENERAL MOTORS CORP.
  5. Install the transmission select switch (if equipped).

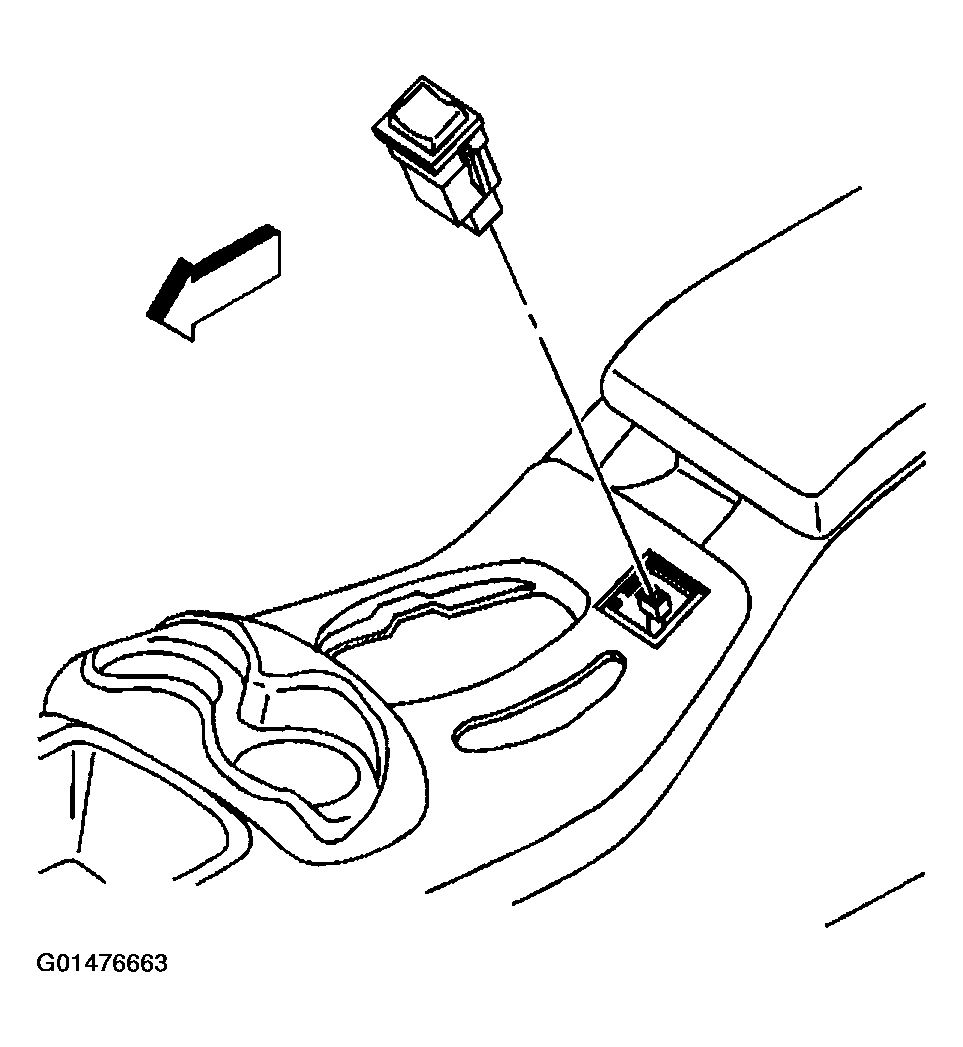

    Fig 2: Transmission Select Switch
    G01476663Courtesy of GENERAL MOTORS CORP.
  6. Install the console compartment insert.
  7. Install the console compartment insert screws.

    Tighten

    Tighten the nuts to 1.9 N.m (17 Ib. in).

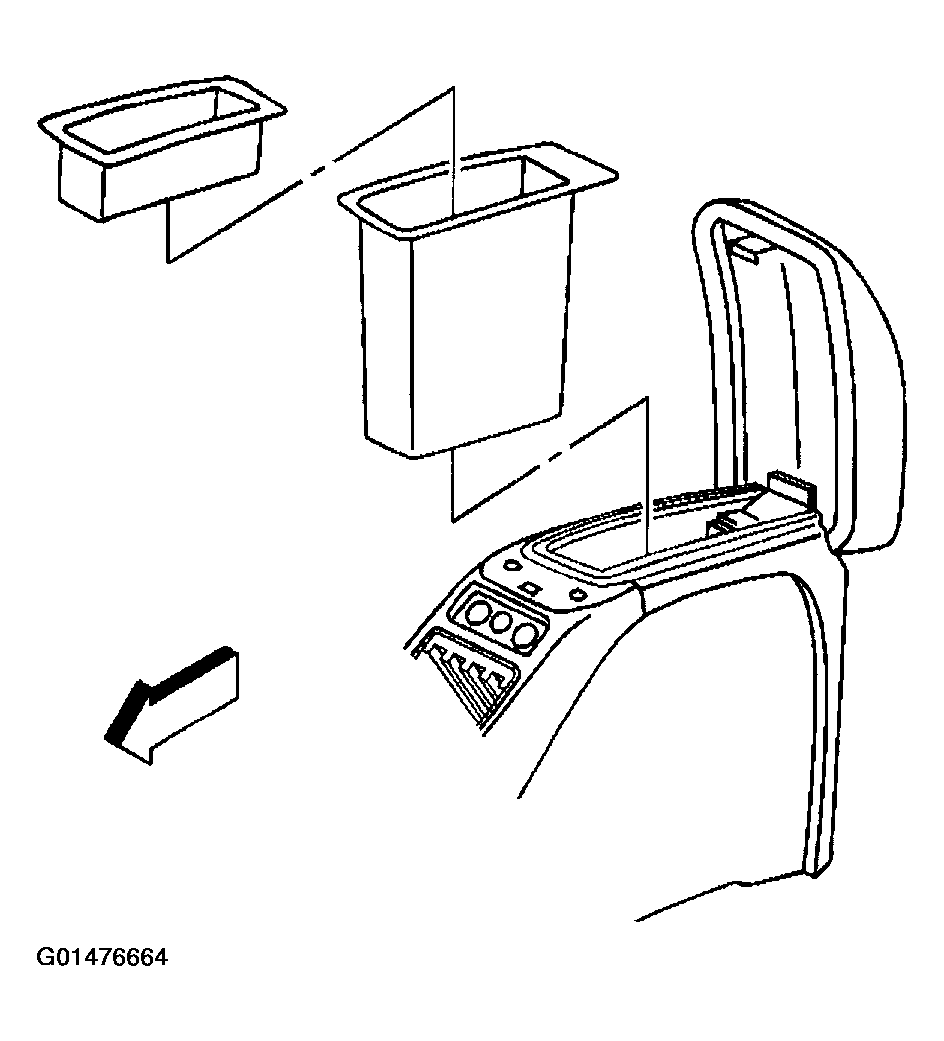

    Fig 3: Console Compartment Insert
    G01476664Courtesy of GENERAL MOTORS CORP.
  8. Install the shift handle to the shift lever.
  9. Install the shift handle retaining clip at the front of the handle.
    Fig 4: Installing Shift Handle To Shift Lever
    G01476665Courtesy of GENERAL MOTORS CORP.
