Installation Procedure

  1. Install the ashtray housing to the instrument panel.
  2. Position the ashtray housing in order to connect the electrical connectors.
  3. Connect the electrical connectors.
  4. Install the electrical connector retaining clip to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws that retain the ash tray housing to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  6. Install the instrument panel trimplate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY .

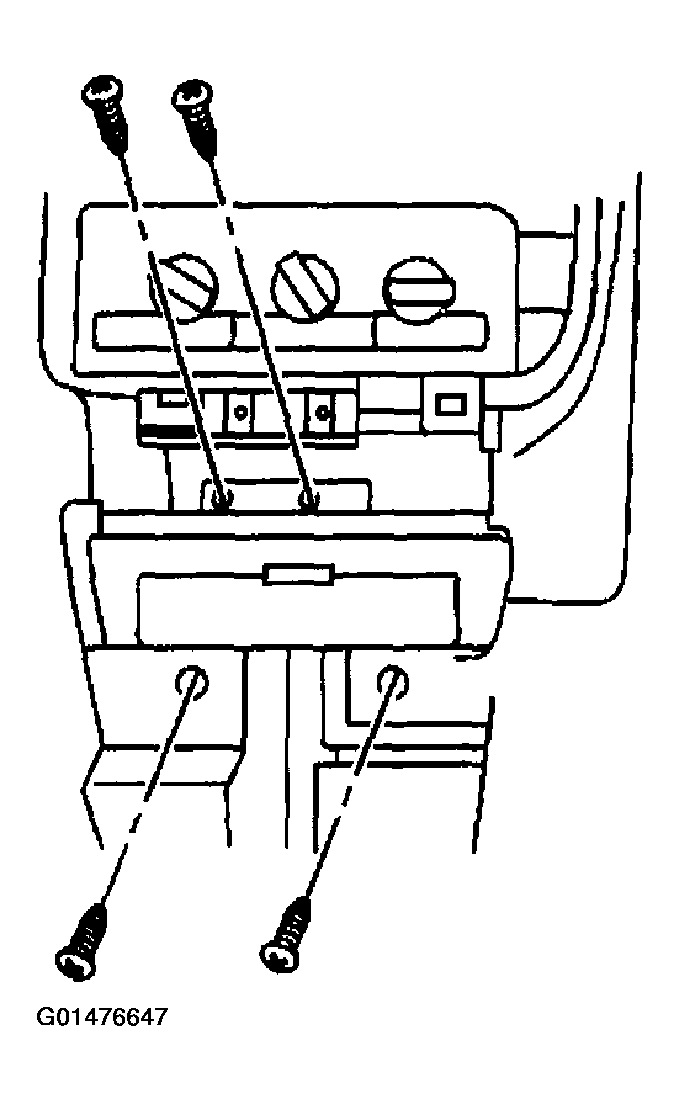

    Fig 1: Ashtray Housing Retaining Screws
    G01476647Courtesy of GENERAL MOTORS CORP.
