Diagnostic Aids

Replace the EBCM if DTC C0273 or DTC C0284 continues to set intermittently.

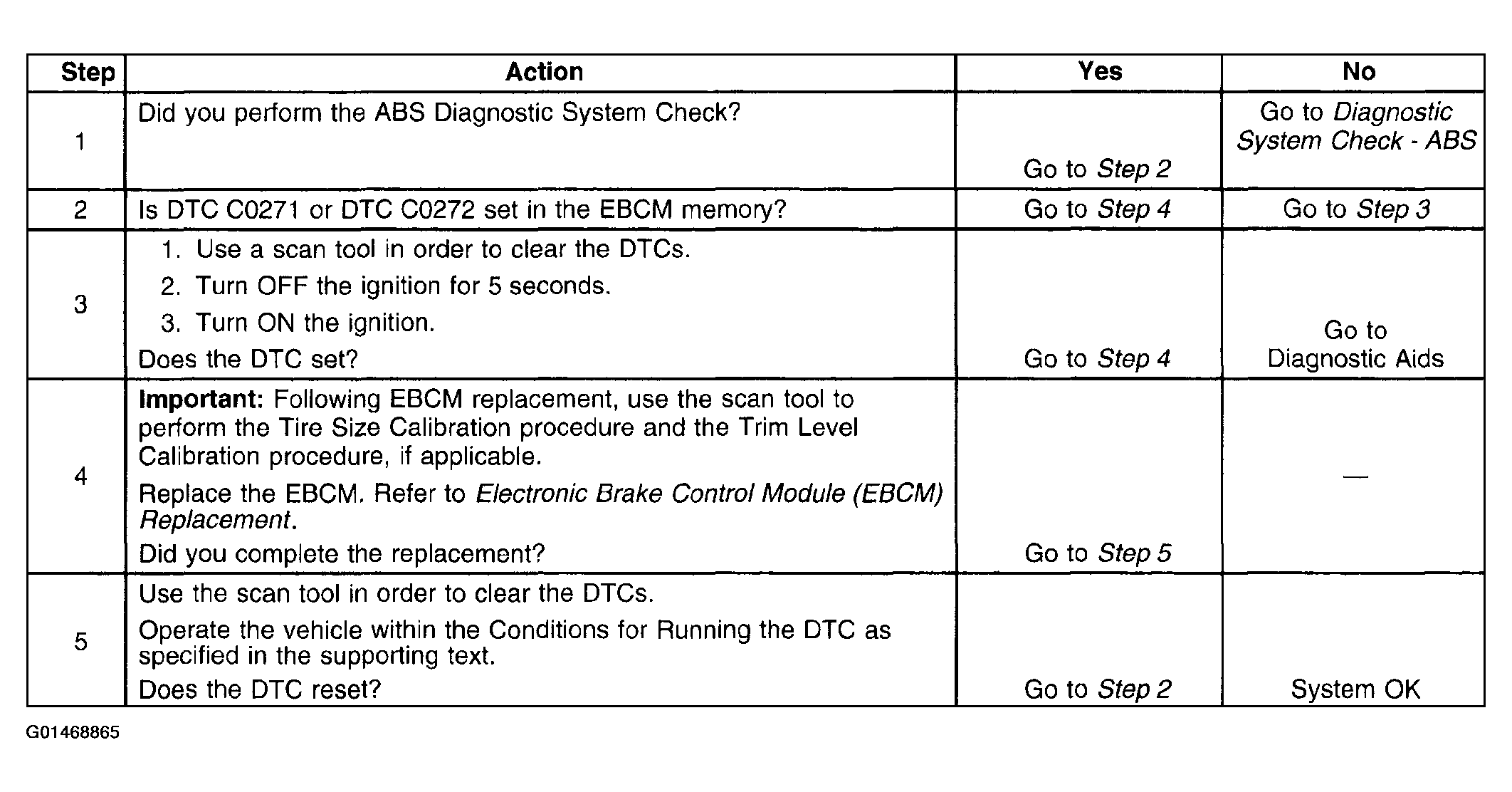

Fig 1: DTC C0271-C0273, C0284 - Diagnostic Procedure Table

G01468865

Courtesy of GENERAL MOTORS CORP.
