Diagnostic Aids

An intermittent open/shorted solenoid DTC can be set by several different internal EBCM problems.

Replace the EBCM if an open/shorted solenoid DTC continues to set intermittently.

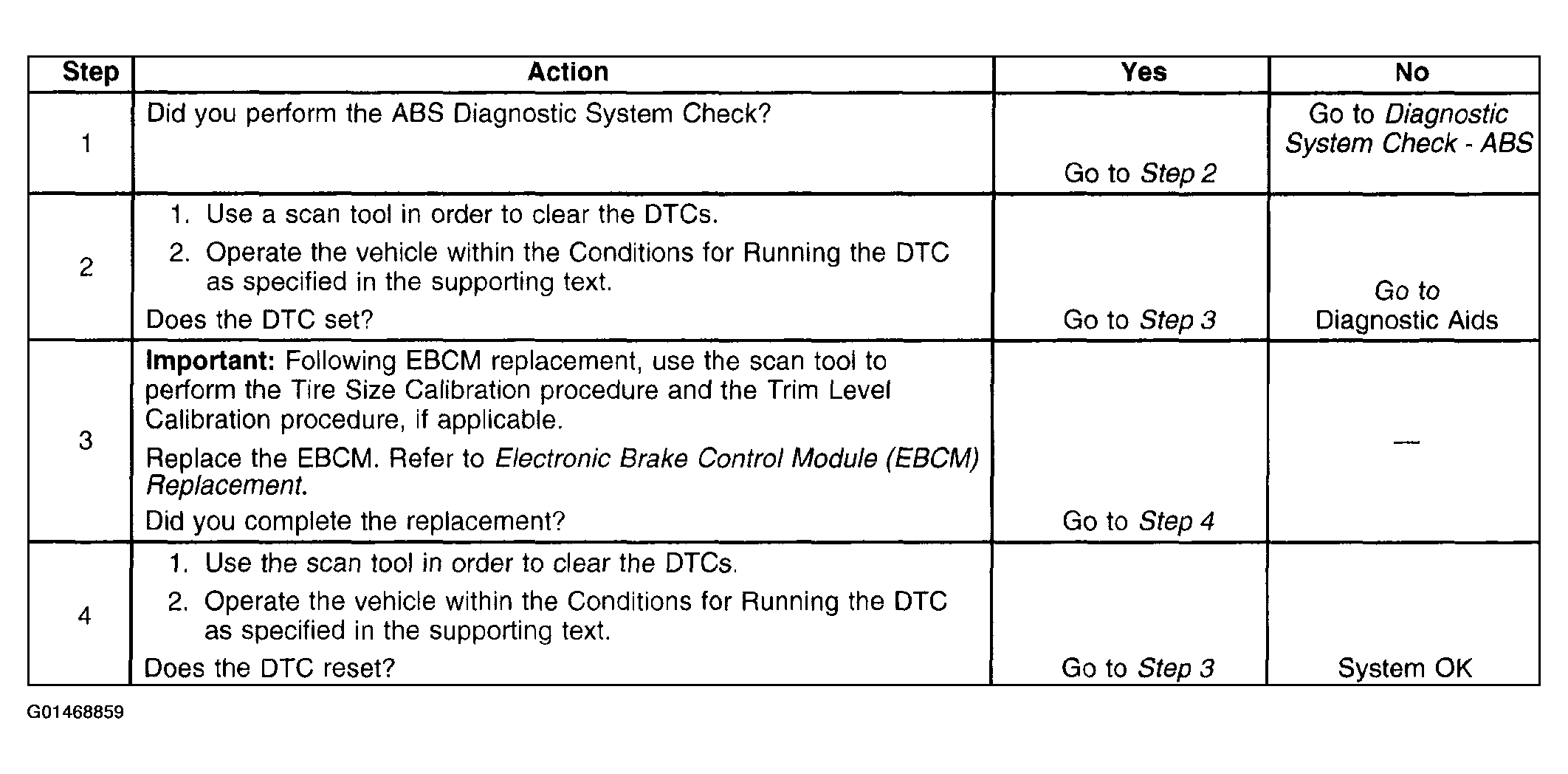

Fig 1: DTC C0241-C0254 - Diagnostic Procedure Table
G01468859Courtesy of GENERAL MOTORS CORP.
