Installation Procedure

  1. Secure the sunroof wire to the windshield pillar body harness with new tie straps.
  2. Position the new wire across the left front upper headliner area.
  3. Connect the gray connector end of the wire (2) to the fused jumper at the lower fuse block.

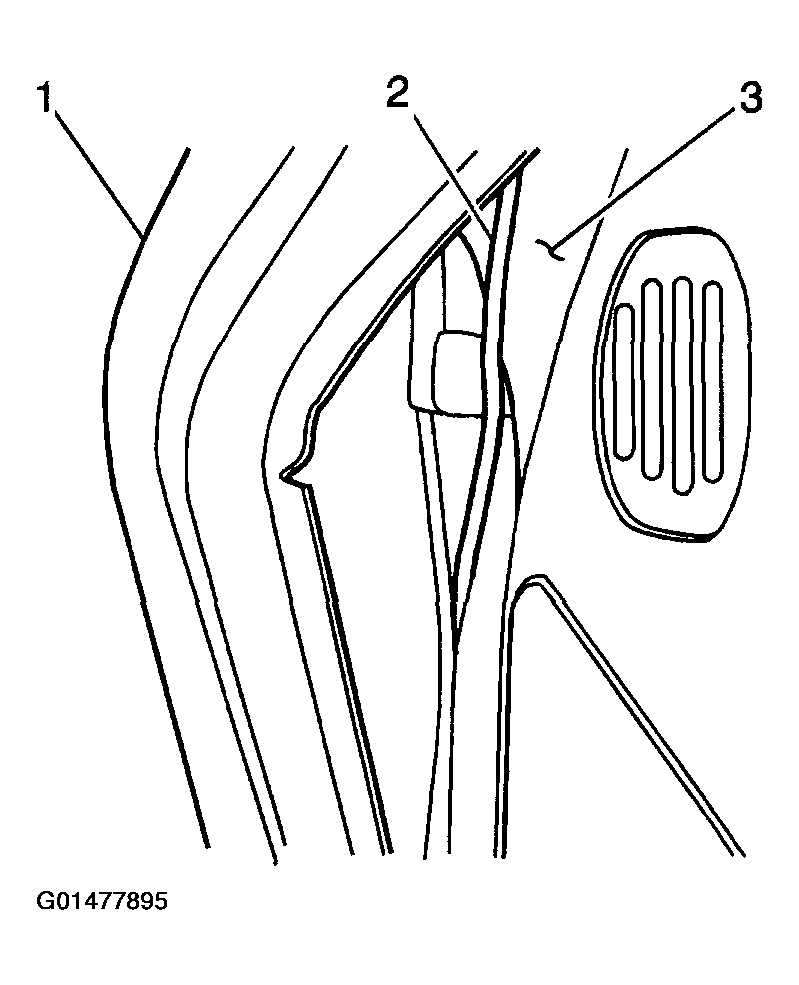

    Fig 1: Installing Sunroof Wire To Windshield Pillar Body Harness With New Tie Straps
    G01477895Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (1) to the sunroof switch connector.
  5. Install the LF windshield pillar garnish molding.

    Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR in Interior Trim.

  6. Install the LF sunshade and retainer. Refer to SUNSHADE REPLACEMENT in Interior Trim
  7. Reposition the LF door seal on the pinchweld flange.

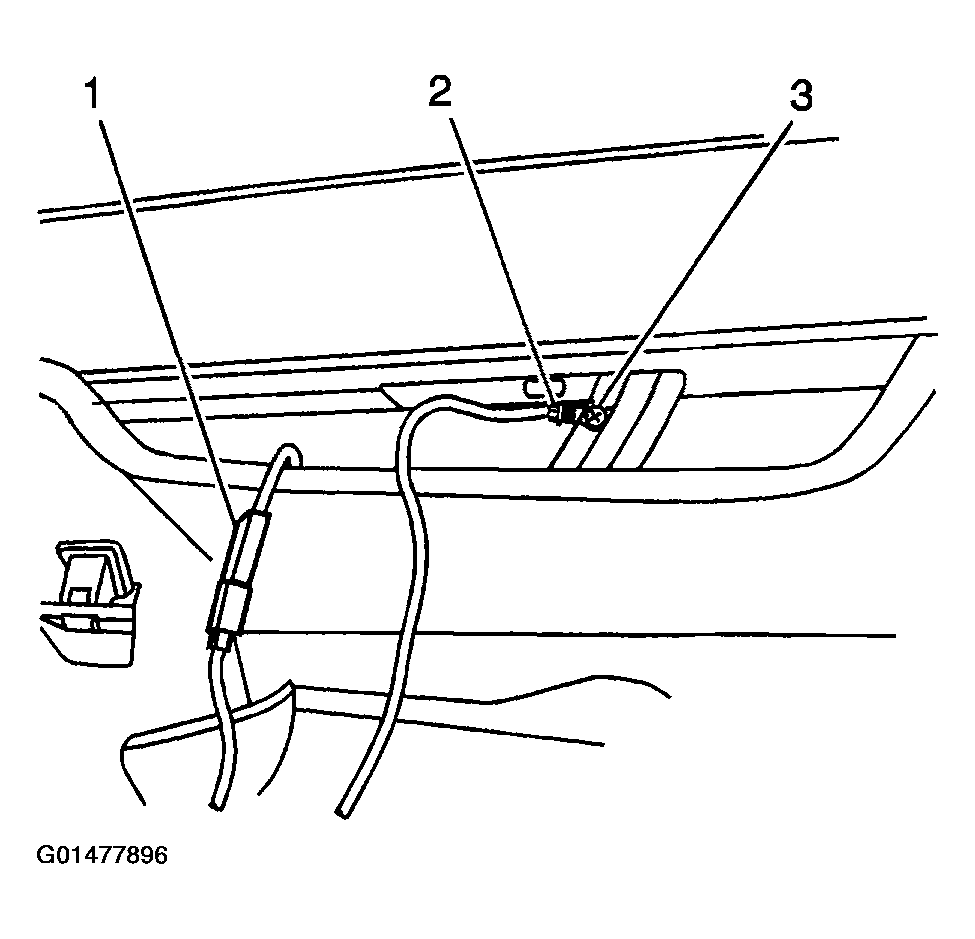

    Fig 2: Connecting Electrical Connector To Sunroof Switch Connector
    G01477896Courtesy of GENERAL MOTORS CORP.
  8. Install the sunroof panel window garnish molding (3). Refer to GARNISH MOLDING REPLACEMENT -- SUNROOF PANEL WINDOW (ZRX/EXTREME W/ CF5) in Interior Trim.
  9. Install the 15A fuse to the jumper harness as removed.
    Fig 3: Installing Fuse To Jumper Harness
    G01477897Courtesy of GENERAL MOTORS CORP.
