Removal Procedure

  1. Remove the negative battery cable.
  2. Remove the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) in Interior Trim.
  3. Disconnect the wiring harness from the sunroof module (2).
  4. Remove the rosebud clips securing the dome lamp/sunroof harness to the left front side door opening frame.
  5. Remove the tape securing the sunroof harness to the dome lamp harness.

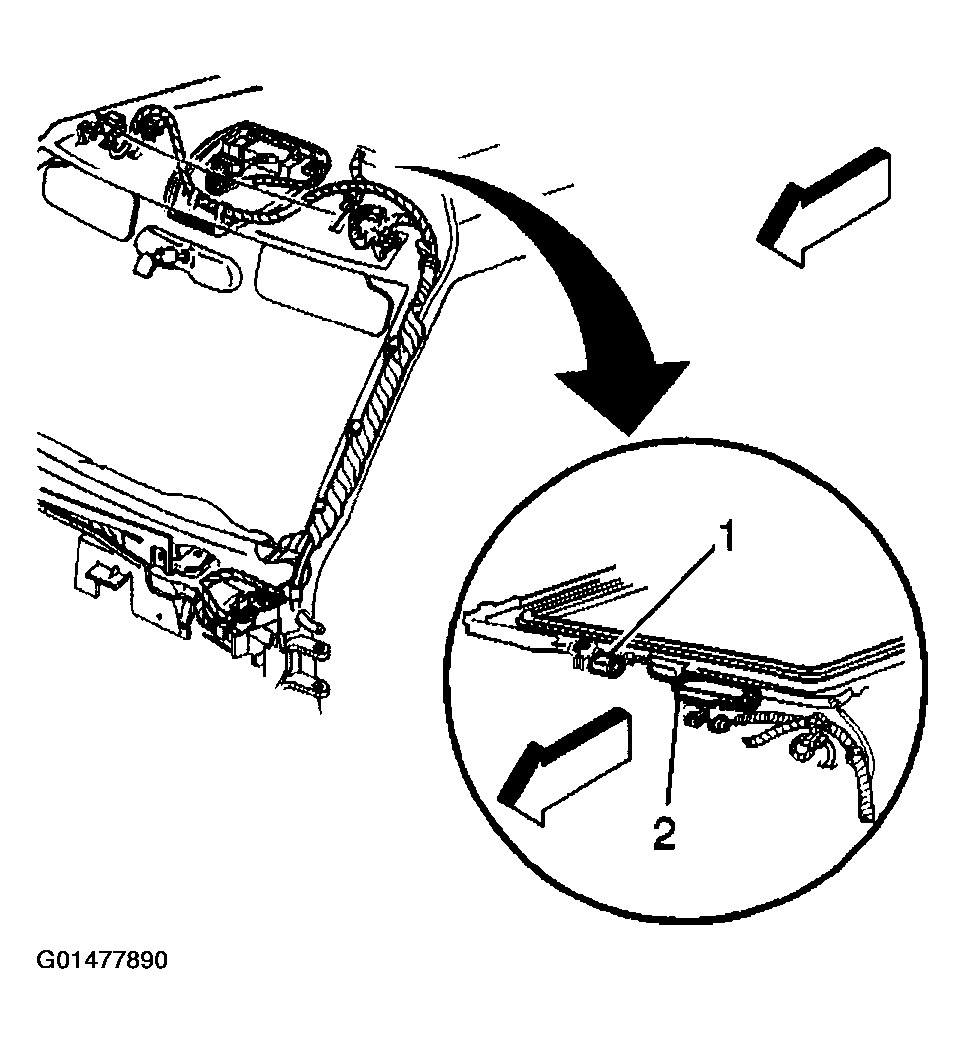

    Fig 1: Removing Wiring Harness From Sunroof Module (CF5)
    G01477890Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the wiring harness from the body wiring harness.
  7. Remove the wiring harness from the vehicle.
