Installation Procedure

  1. Install the wiring harness to the dome lamp harness by wrapping the harnesses with electrical tape.
  2. Install the wiring harness rosebud clips to the left front side door opening frame.
  3. Connect the wiring harness from the body wiring harness.
  4. Connect the wiring harness from the sunroof module (2).
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) in Interior Trim.
  6. Install the negative battery cable.

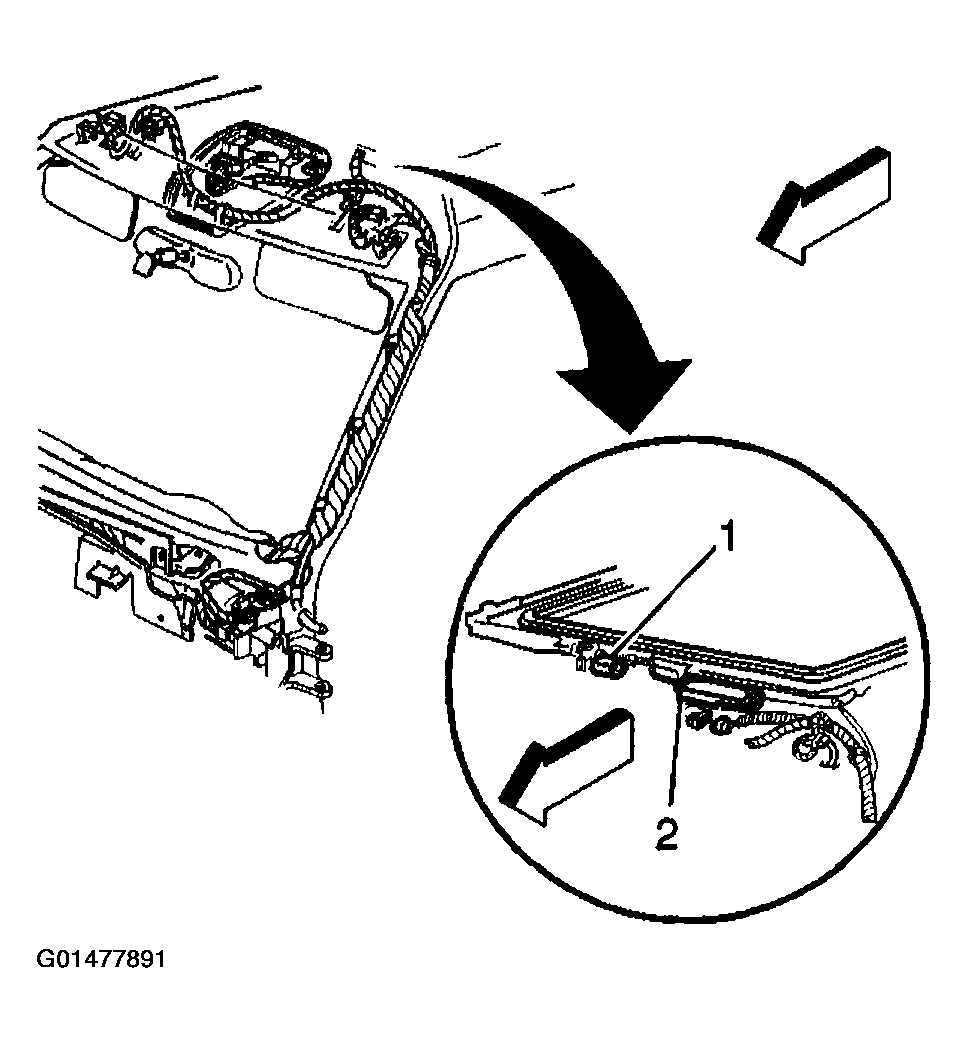

    Fig 1: Installing Wiring Harness To Sunroof Module
    G01477891Courtesy of GENERAL MOTORS CORP.
