Installation Procedure

  1. With the palm of the hand, position the sunroof window to the slider arm.

    Important:  The sunroof window is self locating to the slider arm.

    Fig 1: Installing Sunroof Window To Slider Arms
    G01477863Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 sunroof window screws (2).

    Tighten

    Tighten the sunroof window screws to 4 N-m (35 Ib in).

  3. Close the sunroof window.
  4. Inspect the fit of the sunroof window to the outer periphery of the sunroof panel window seal.

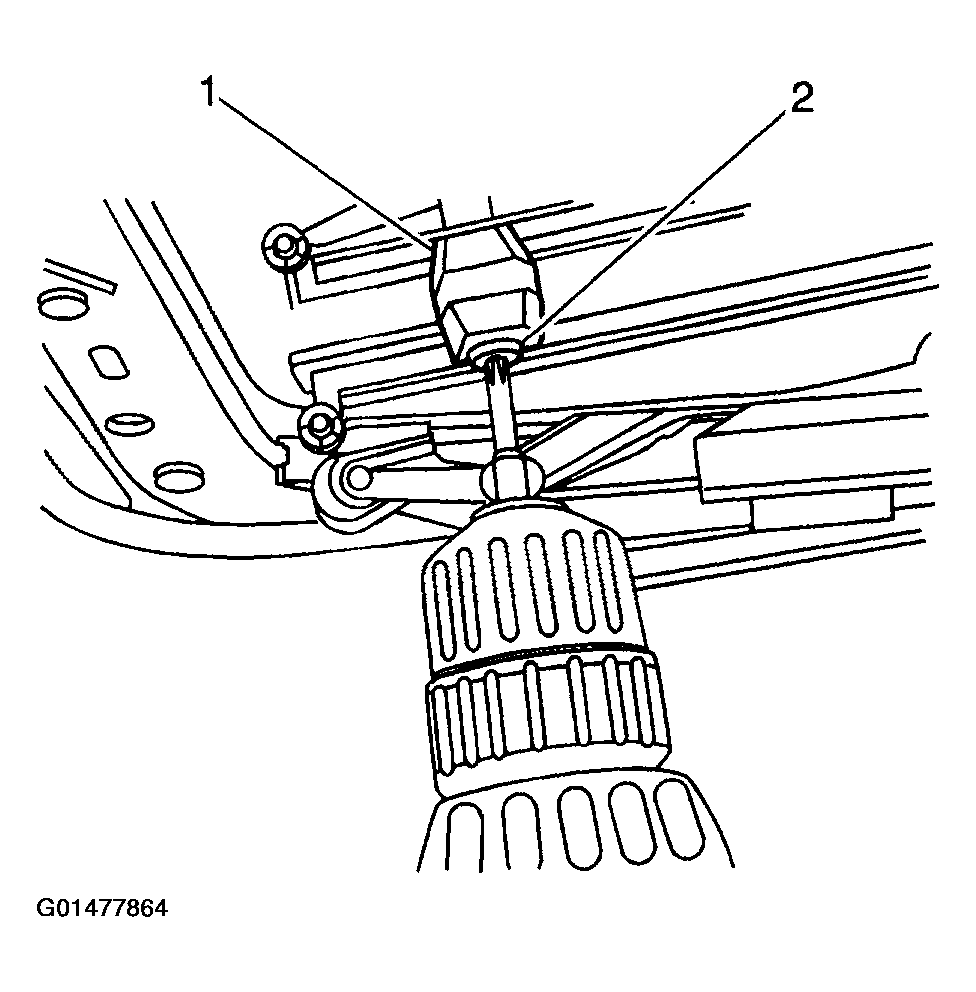

    Fig 2: Sunroof Window Screws
    G01477864Courtesy of GENERAL MOTORS CORP.
  5. Install the interior window panel garnish molding (1). Refer to GARNISH MOLDING REPLACEMENT -- SUNROOF PANEL WINDOW (ZRX/EXTREME W/ CF5) in Interior Trim.
  6. Clean the sunroof window.

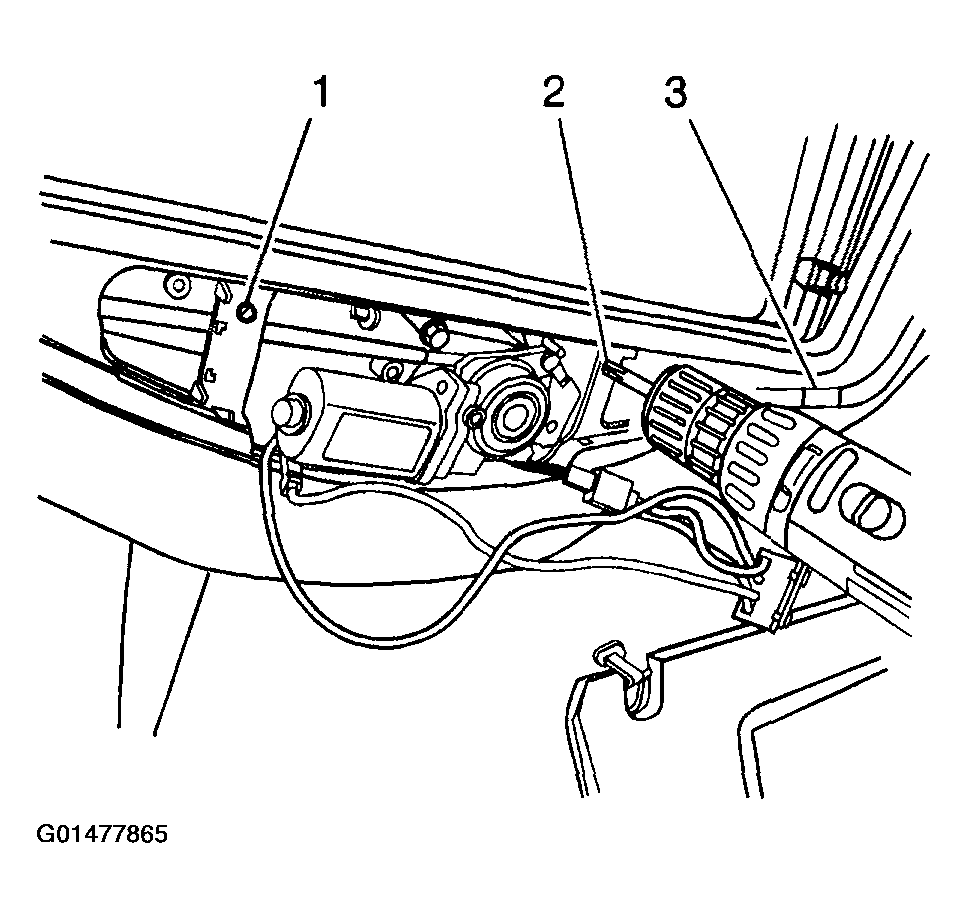

    Fig 3: Interior Window Panel Garnish Molding
    G01477865Courtesy of GENERAL MOTORS CORP.
