Removal Procedure

With a medium flat-bladed tool, remove the motor/actuator service cover.
Remover the motor/actuator trim cover screw (2).

Fig 1: Motor/Actuator Service Cover
Courtesy of GENERAL MOTORS CORP.
Lower the trim cover (5).
Remove the switch (4) from the cover.
Disconnect the motor/actuator electrical connector (3).

Fig 2: Disconnecting Motor/Actuator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the ground screw (3) and ground wire (2) from the header in behind the motor/actuator.
Disconnect the main feed electrical connector (1).
Remove the sunroof switch from the vehicle.

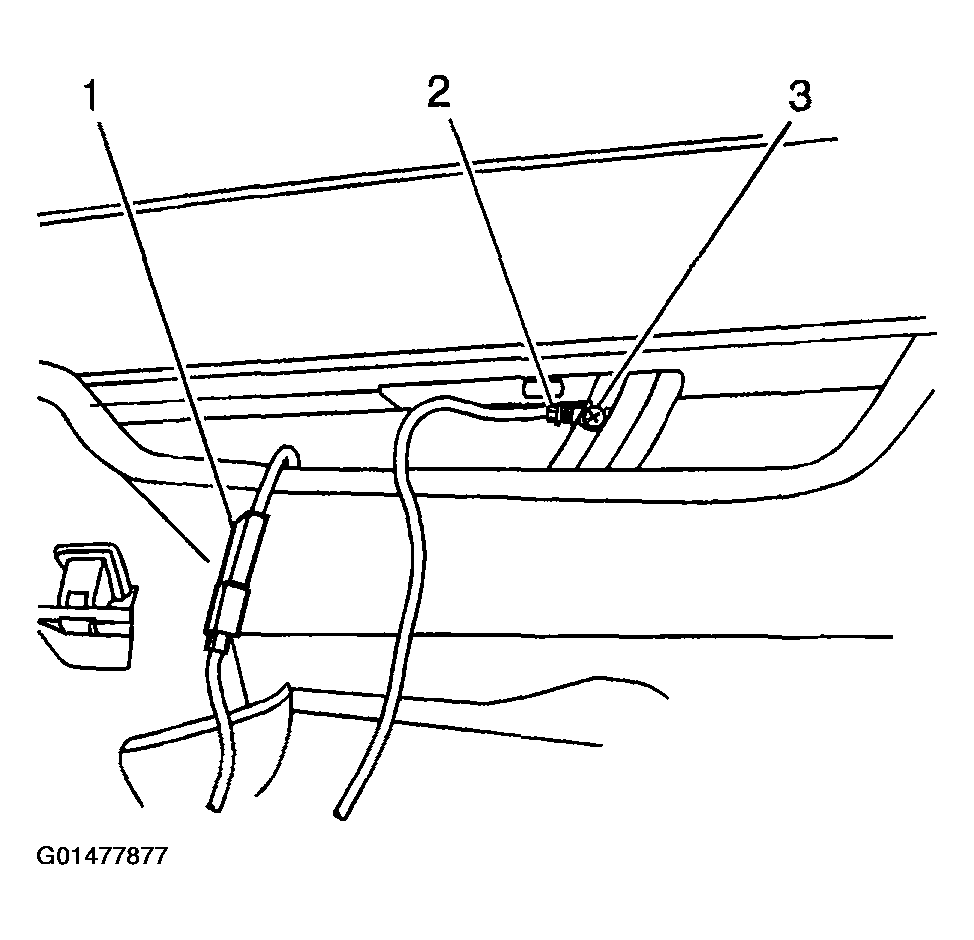

Fig 3: Ground Screws, Ground Wire & Main Feed Electrical Connector
Courtesy of GENERAL MOTORS CORP.
